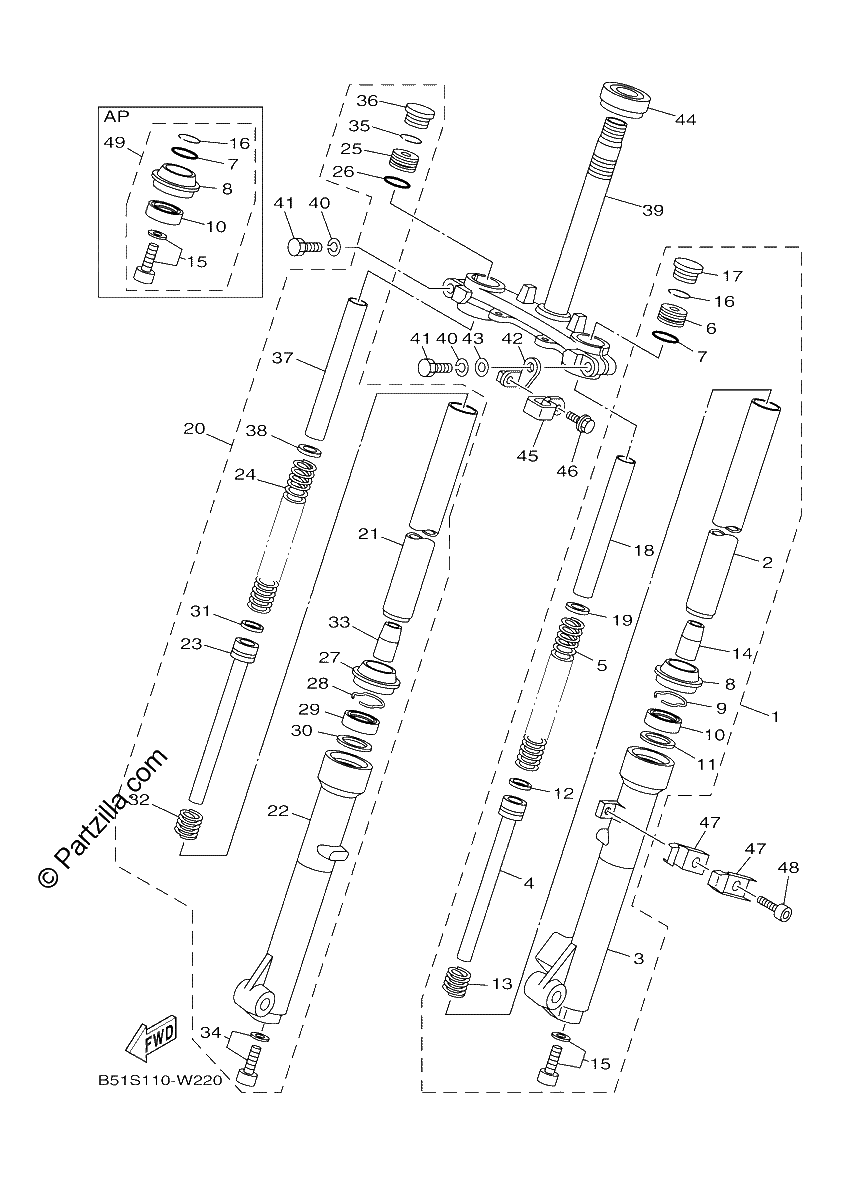

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FORK ASSY (L.H)
$729.50¢364 751
#2
INNER TUBE COMP. 1
$353.63¢176 813
#3
TUBE, OUTER
$504.40¢252 201
#4
CYLINDER COMP., FRONT FORK
$32.61¢16 307
#5
SPRING, FRONT FORK
$29.08¢14 542
#6
CAP
$6.87¢3 433
#7
O-RING
$3.39¢1 696
#8
SEAL, DUST
$12.60¢6 302
#9
RING, SNAP
$9.56¢4 778
#10
Oil Seal
$23.48¢11 742
#11
WASHER, OIL SEAL
$9.91¢4 956
#12
RING, PISTON
$4.57¢2 283
#13
SPRING, REBOUND
$3.10¢1 553
#14
SPINDLE, TAPER
$7.51¢3 755
#15
. BOLT, HEXAGON SOCKET HEAD
$8.50¢4 249
#16
RING, STOPPER
$7.28¢3 640
#17
CAP
$11.30¢5 652
#18
SPACER
$9.61¢4 807
#19
WASHER, SPRING UPPER
$4.91¢2 455
#20
FRONT FORK ASSY (R.H)
$773.04¢386 521
#21
INNER TUBE COMP. 1
$353.63¢176 813
#22
TUBE, OUTER
$360.29¢180 147
#23
CYLINDER COMP., FRONT FORK
$32.61¢16 307
#24
SPRING, FRONT FORK
$29.08¢14 542
#25
CAP
$6.87¢3 433
#26
O-RING
$3.39¢1 696
#27
SEAL, DUST
$12.60¢6 302
#28
RING, SNAP
$9.56¢4 778
#29
Oil Seal
$23.48¢11 742
#30
WASHER, OIL SEAL
$9.91¢4 956
#31
RING, PISTON
$4.57¢2 283
#32
SPRING, REBOUND
$3.10¢1 553
#33
SPINDLE, TAPER
$7.51¢3 755
#34
. BOLT, HEXAGON SOCKET HEAD
$8.50¢4 249
#35
RING, STOPPER
$7.28¢3 640
#36
CAP
$11.30¢5 652
#37
SPACER
$9.61¢4 807
#38
WASHER, SPRING UPPER
$4.91¢2 455
#39
UNDER BRACKET COMP.
$504.59¢252 293
#40
WASHER, SPRING
$2.82¢1 409
#41
BOLT 1
$11.81¢5 905
#42
BRACKET 1
$10.37¢5 187
#43
WASHER, PLATE
$3.02¢1 512
#44
BEARING TAPRD
$69.70¢34 851
#45
HOLDER
$11.96¢5 980
#46
BOLT, FLANGE
$2.43¢1 213
#47
CLAMP
$9.12¢4 560
#48
BOLT
$6.75¢3 375
#49
FORK SEALS KIT
$35.91¢17 957
