TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

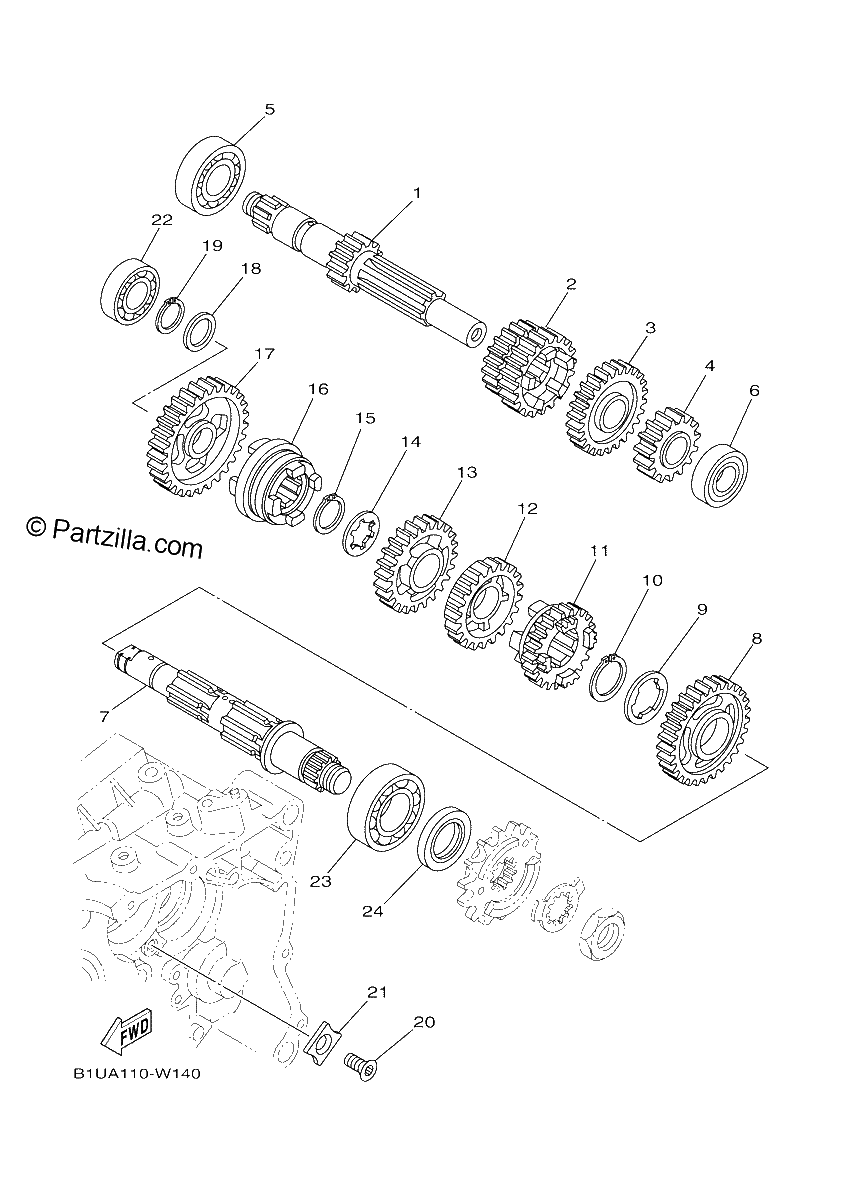

Diagrama de TRANSMISSION

Repuestos

#1
5XT-17411-00-00
Axle, Main
$139.81¢69 906
1
#2
5XT-17131-00-00
GEAR, 3RD PINION
$119.49¢59 744
1
#3
5XT-17151-10-00
GEAR, 5TH PINION
$88.41¢44 206
1
#4
51Y-17121-00-00
GEAR,2ND PINION
$24.93¢12 463
1
#5
93306-20427-00
BEARING
$41.60¢20 800
1
#6
93306-00320-00
BEARING
$37.81¢18 906
1
#7
3C5-17402-00-00
Drive axle assy
$167.56¢83 781
1
#8
5XT-17221-00-00
GEAR, 2ND WHEEL
$100.17¢50 088
1
#9
90209-23241-00
WASHER,SPEC'L SHAPE
$4.09¢2 044
1
#10
93410-26067-00
CIRCLIP,S-TYPE
$8.84¢4 419
1
#11
5XT-17251-10-00
GEAR, 5TH WHEEL
$122.84¢61 419
1
#12
5XT-17241-00-00
GEAR, 4TH WHEEL
$66.33¢33 163
1
#13
5XT-17231-00-00
GEAR, 3RD WHEEL
$76.74¢38 369
1
#14
90209-18208-00
WASHER,SPEC'L SHAPE
$8.30¢4 150
1
#15
93410-22039-00
CIRCLIP,S-TYPE
$7.34¢3 669
1
#16
5BP-17285-00-00
CLUTCH, DOG
$48.31¢24 156
1
#17
3C5-17211-00-00
GEAR, 1ST WHEEL This item has been discontinued and may not be available. Contact us for more information.
$92.31¢46 156
1
#18
90201-177G4-00
WASHER,PLATE
$8.09¢4 044
1
#19
93410-17037-00
CIRCLIP,S-TYPE
$7.94¢3 969
1
#20
90151-06008-00
SCREW, COUNTERSUNK
$8.18¢4 088
1
#21
3C5-17558-00-00
PLATE, BEARING This item has been discontinued and may not be available. Contact us for more information.
$6.76¢3 381
1
#22
93306-20332-00
BEARING
$39.21¢19 606
1
#23
93306-20532-00
BEARING
$68.65¢34 325
1
#24
93102-25226-00
OIL SEAL,SD-TYPE
$14.68¢7 338
1
