FENDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

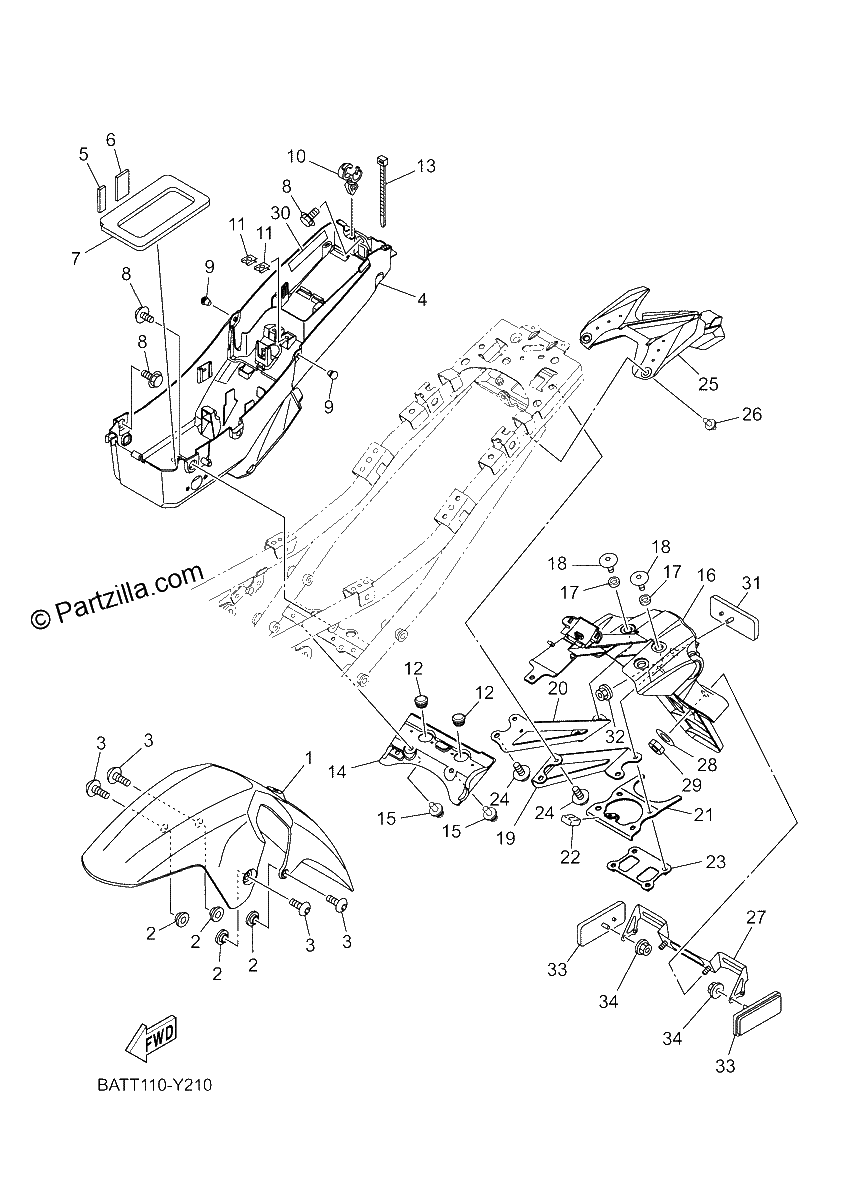

Diagrama de FENDER

Repuestos

#1
BAT-21511-00-P0
FENDER, FRONT (MAT BLUE METALLIC 3) (DEEP PURPLISH BLUE METALLIC C) *{UR MBM3 FOR DPBMC}*
$191.65¢95 825
1
#2
90387-06384-00
COLLAR
$4.35¢2 175
1
#3
90149-06302-00
SCREW
$5.11¢2 556
1
#4
BAT-8212B-00-00
BOX, BATTERY 1
$56.17¢28 088
1
#5
BAT-21639-00-00
DAMPER 2
$3.49¢1 744
1
#6
BAT-21649-00-00
DAMPER
$4.86¢2 431
1
#7
1WS-21639-00-00
DAMPER 2
$6.64¢3 319
1
#8
90109-06202-00
BOLT
$3.24¢1 619
1
#9
90338-06018-00
PLUG
$6.76¢3 381
1
#10
90464-18002-00
CLAMP
$8.25¢4 125
1
#11
90183-04039-00
NUT, SPRING
$7.03¢3 513
1
#12
90480-14100-00
GROMMET
$7.69¢3 844
1
#13
90465-13275-00
CLAMP
$5.19¢2 594
1
#14
1WS-21642-01-00
GUARD, FLAP
$6.76¢3 381
1
#15
90269-06002-00
RIVET
$7.34¢3 669
1
#16
BAT-21629-00-00
GUARD, MUD
$61.31¢30 656
1
#17
90387-06372-00
COLLAR
$6.45¢3 225
1
#18
90111-06089-00
BOLT,HEX. SOCKET BUTTON
$7.46¢3 731
1
#19
1WS-2164F-00-00
STAY 1
$23.71¢11 856
1
#20
1WS-2164G-00-00
STAY 2
$21.74¢10 869
1
#21
BAT-21682-00-00
STAY, PLATE
$14.68¢7 338
1
#22
1WS-21746-00-00
DAMPER
$3.38¢1 688
1
#23
BAT-2161G-00-00
BRACKET 6
$10.63¢5 313
1
#24
90105-06205-00
BOLT, FLANGE
$1.68¢838
1
#25
1WS-2163A-00-00
COVER, REAR FENDER 1
$9.96¢4 981
1
#26
90269-07008-00
RIVET
$3.02¢1 513
1
#27
2RC-84751-00-00
BRACKET, LICENSE
$35.44¢17 719
1
#28
92902-06600-00
WASHER, plate
$3.40¢1 700
1
#29
95602-06100-00
NUT, SELF-LOCKING
$2.86¢1 431
1
#30
3JJ-28446-A2-00
LABEL, CAUTION
$4.94¢2 469
1
#31
3Y6-85130-02-00
Rear Reflector
$27.07¢13 538
1
#32
95602-05200-00
NUT, SELF-LOCKING
$8.16¢4 081
1
#33
3Y6-85130-02-00
Rear Reflector
$27.07¢13 538
1
#34
95702-05500-00
NUT,FLANGE (SILVER)
$0.91¢456
1
