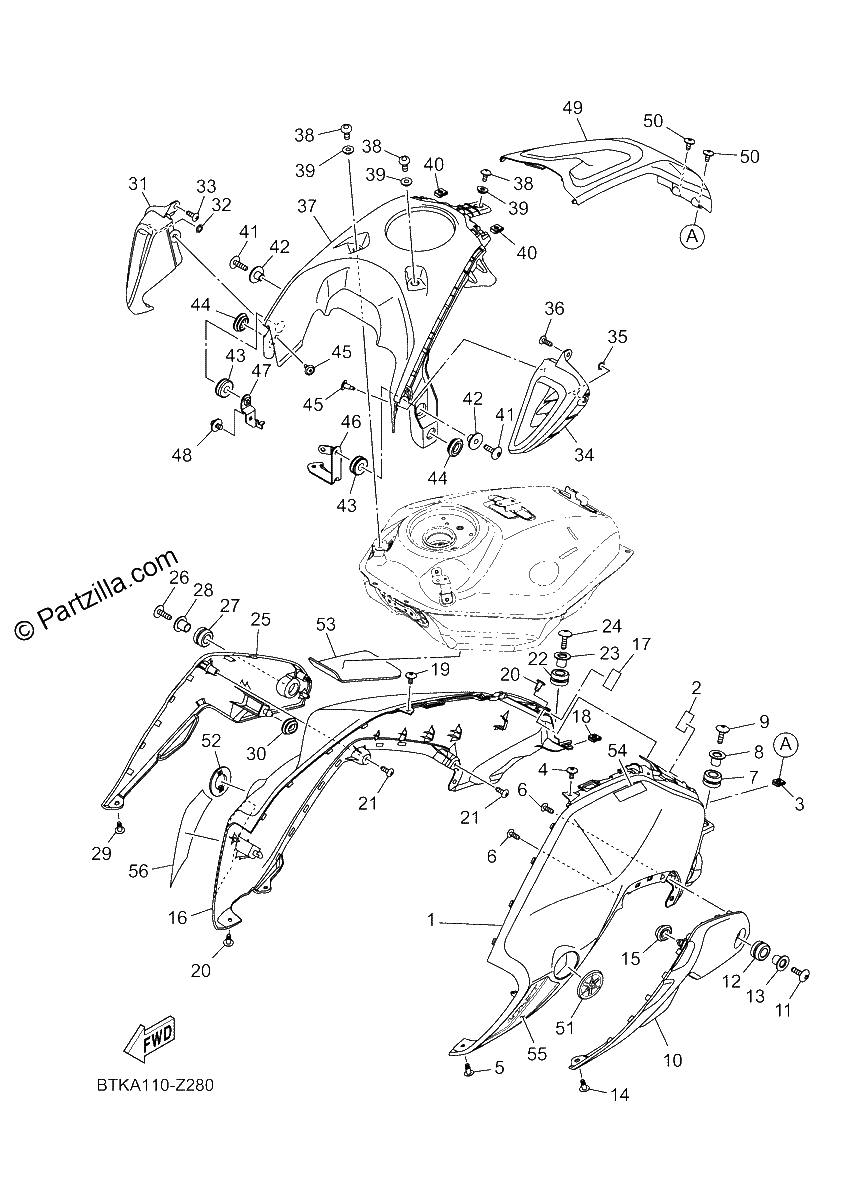

Diagrama de FUEL TANK 2

Repuestos

#1
BAT-24129-00-P0
COVER, SIDE 1 (DEEP PURPLISH BLUE METALLIC C) *{UR FOR DPBMC}*
$94.56¢47 281
1
#2
D49-2117G-00-00
PROTECTOR
$10.11¢5 056
1
#3
90183-05076-00
NUT, SPRING
$2.82¢1 412
1
#4
90111-05003-00
BOLT, HEX. SOCKET BUTTON
$7.34¢3 669
1
#5
90269-06019-00
RIVET
$3.46¢1 731
1
#6
90160-05012-00
SCREW, ROUND TAPPING
$7.46¢3 731
1
#7
90480-17007-00
GROMMET
$7.52¢3 762
1
#8
90387-10107-00
COLLAR
$5.41¢2 706
1
#9
90110-06087-00
BOLT, HEXAGON SOCKET HEAD
$4.49¢2 244
1
#10
BAT-24121-00-00
SEAT, KNEE GRIP 1
$22.43¢11 213
1
#11
90110-06087-00
BOLT, HEXAGON SOCKET HEAD
$4.49¢2 244
1
#12
90480-17007-00
GROMMET
$7.52¢3 762
1
#13
90387-10107-00
COLLAR
$5.41¢2 706
1
#14
90269-06019-00
RIVET
$3.46¢1 731
1
#15
90480-01558-00
Grommet
$4.69¢2 344
1
#16
BAT-24139-00-P0
COVER, SIDE 2 (DEEP PURPLISH BLUE METALLIC C) *{UR FOR DPBMC}*
$94.56¢47 281
1
#17
D49-2117G-00-00
PROTECTOR
$10.11¢5 056
1
#18
90183-05076-00
NUT, SPRING
$2.82¢1 412
1
#19
90111-05003-00
BOLT, HEX. SOCKET BUTTON
$7.34¢3 669
1
#20
90269-06019-00
RIVET
$3.46¢1 731
1
#21
90160-05012-00
SCREW, ROUND TAPPING
$7.46¢3 731
1
#22
90480-17007-00
GROMMET
$7.52¢3 762
1
#23
90387-10107-00
COLLAR
$5.41¢2 706
1
#24
90110-06087-00
BOLT, HEXAGON SOCKET HEAD
$4.49¢2 244
1
#25
BAT-24122-00-00
SEAT, KNEE GRIP 2
$22.43¢11 213
1
#26
90110-06087-00
BOLT, HEXAGON SOCKET HEAD
$4.49¢2 244
1
#27
90480-17007-00
GROMMET
$7.52¢3 762
1
#28
90387-10107-00
COLLAR
$5.41¢2 706
1
#29
90269-06019-00
RIVET
$3.46¢1 731
1
#30
90480-01558-00
Grommet
$4.69¢2 344
1
#31
BAT-2137X-00-00
SCOOP, AIR 2
$20.45¢10 225
1
#32
90183-05M02-00
NUT, SPRING
$0.50¢250
1
#33
90160-05012-00
SCREW, ROUND TAPPING
$7.46¢3 731
1
#34
BAT-2137W-00-00
SCOOP, AIR 1
$20.95¢10 475
1
#35
90183-05M02-00
NUT, SPRING
$0.50¢250
1
#36
90160-05012-00
SCREW, ROUND TAPPING
$7.46¢3 731
1
#37
BAT-2464E-00-00
COVER, CAP
$52.00¢26 000
1
#38
90111-05002-00
BOLT, HEX. SOCKET BUTTON
$6.19¢3 094
1
#39
90387-05071-00
COLLAR
$3.59¢1 794
1
#40
90183-05076-00
NUT, SPRING
$2.82¢1 412
1
#41
90111-06084-00
BOLT, HEX. SOCKET BUTTON
$5.86¢2 931
1
#42
90387-07042-00
COLLAR
$4.94¢2 469
1
#43
90480-14452-00
GROMMET
$7.94¢3 969
1
#44
90480-01559-00
Grommet
$5.72¢2 863
1
#45
90269-06081-00
RIVET
$6.78¢3 388
1
#46
BAT-2463E-00-00
BRACKET, CAP
$9.86¢4 931
1
#47
BAT-2412F-00-00
BRACKET, SEAT
$7.41¢3 706
1
#48
90111-06122-00
BOLT, HEX. SOCKET BUTTON
$5.22¢2 613
1
#49
BAT-2171A-00-00
COVER, TOP
$38.89¢19 444
1
#50
90111-05003-00
BOLT, HEX. SOCKET BUTTON
$7.34¢3 669
1
#51
1RC-2413B-01-00
EMBLEM (replaces 1RC-2413B-00-00)
$23.89¢11 944
1
#52
1RC-2413B-01-00
EMBLEM (replaces 1RC-2413B-00-00)
$23.89¢11 944
1
#53
B2G-2315J-00-00
PROTECTOR 2
$22.35¢11 175
1
#54
1TP-2118K-A2-00
. LABEL, CAUTION
$7.16¢3 581
1
#55
BAT-217F1-30-00
GRAPHIC, 1 (DEEP PURPLISH BLUE METALLIC C) *{UR FOR DPBMC}*
$14.47¢7 238
1
#56
BAT-217F2-30-00
GRAPHIC, 2 (DEEP PURPLISH BLUE METALLIC C) *{UR FOR DPBMC}*
$14.47¢7 238
1
