ELECTRICAL 3

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

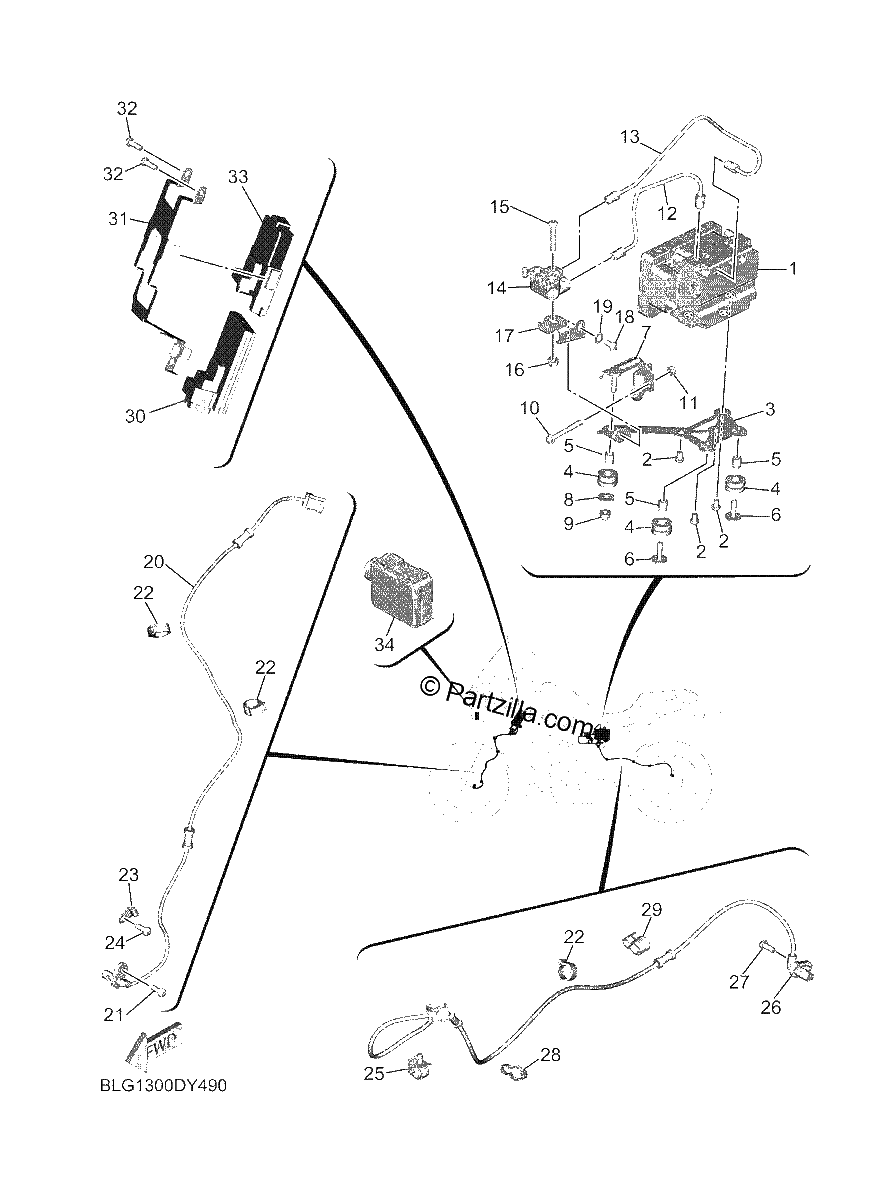

Diagrama de ELECTRICAL 3

Repuestos

#1
BLG-85930-09-00
HYDRAULIC UNIT ASSY
$1782.49¢891 244
1
#2
90111-06204-00
BOLT, HEXAGON SOCKET BUTTON
$1.49¢747
1
#3
BLG-85991-00-00
BRACKET, UNIT
$20.37¢10 183
1
#4
90480-14229-00
GROMMET
$6.75¢3 375
1
#5
90387-065L7-00
COLLAR
$7.58¢3 789
1
#6
90119-06267-00
BOLT, WITH WASHER
$6.75¢3 375
1
#7
BLG-85542-00-00
BRACKET
$54.26¢27 129
1
#8
90201-06778-00
WASHER, PLATE
$4.02¢2 012
1
#9
90176-06065-00
NUT, CROWN
$7.58¢3 789
1
#10
95027-06045-00
BOLT, SMALL FLANGE
$2.71¢1 357
1
#11
95607-06100-00
NUT, U
$2.63¢1 317
1
#12
BLG-25871-00-00
PIPE, BRAKE
$15.84¢7 918
1
#13
BLG-25882-00-00
PIPE, BRAKE 2
$16.90¢8 452
1
#14
B7N-25885-00-00
JOINT
$61.12¢30 561
1
#15
92012-06035-00
BOLT, BUTTON HEAD
$1.89¢943
1
#16
95702-06500-00
NUT, FLANGE
$2.24¢1 121
1
#17
BLG-85142-00-00
BRACKET, REFLECTOR 2
$11.60¢5 802
1
#18
92017-06010-00
BOLT, BUTTON HEAD
$3.36¢1 679
1
#19
92907-06200-00
WASHER
$6.76¢3 381
1
#20
B7N-85970-00-00
WHEEL SENSOR ASSY, FRONT
$132.12¢66 062
1
#21
92017-06014-00
BOLT, BUTTON HEAD
$3.06¢1 529
1
#22
90464-16003-00
CLAMP
$6.87¢3 433
1
#23
2CR-23317-00-00
HOLDER, CABLE
$9.88¢4 939
1
#24
92017-06014-00
BOLT, BUTTON HEAD
$3.06¢1 529
1
#25
90464-14013-00
CLAMP
$3.22¢1 610
1
#26
BLG-85980-00-00
WHEEL SENSOR ASSY, REAR
$113.21¢56 603
1
#27
92014-06014-00
BOLT, BUTTON HEAD
$2.90¢1 449
1
#28
90464-14810-00
CLAMP
$1.05¢523
1
#29
90464-10233-00
CLAMP
$6.96¢3 479
1
#30
BLG-85902-00-00
SUSPENSION CONTROL UNIT ASSY
$1255.79¢627 894
1
#31
BLG-2161A-00-00
BRACKET 3
$73.97¢36 984
1
#32
92017-06016-00
BLT,BTTN HD (replaces 90111-06007-00)
$6.75¢3 375
1
#33
BAP-21646-00-00
BAND
$18.10¢9 051
1
#34
BLG-8595A-00-00
MRR. UNIT ASSY
$1072.94¢536 469
1
