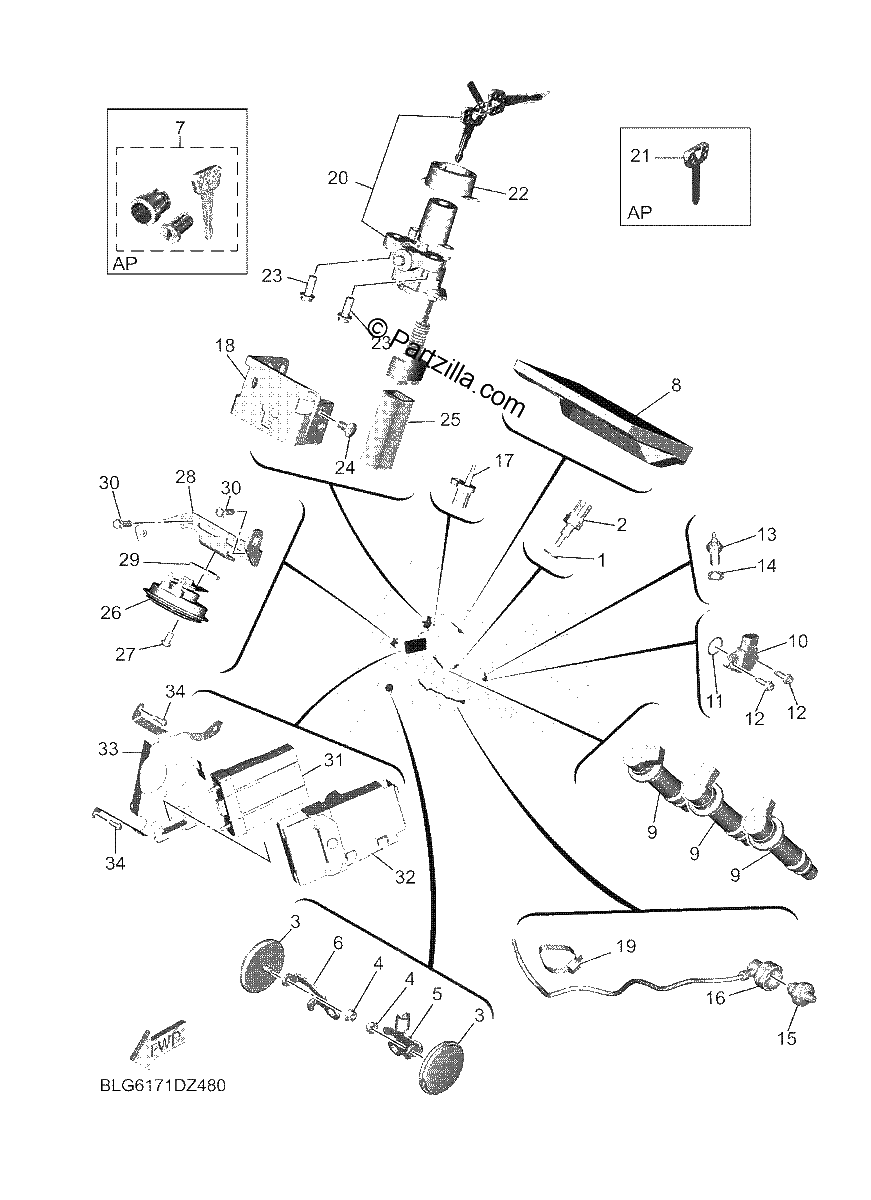

ELECTRICAL 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
GASKET
$6.51¢3 254
#2
THERMO UNIT
$31.65¢15 824
#3
REFLECTOR, FRONT 1
$14.03¢7 015
#4
NUT, FLANGE
$2.24¢1 121
#5
BRACKET, REFLECTOR 1
$17.11¢8 556
#6
BRACKET, REFLECTOR 2
$8.68¢4 341
#7
LOCK ASSY *{AP}*
$99.29¢49 646
#8
ENGINE CONTROL UNIT ASSY *{FOR U49}*
$1517.99¢758 994
#9
IGNITION COIL ASSY
$104.40¢52 198
#10
SENSOR, GEAR POSITION
$119.69¢59 846
#11
O-RING
$1.99¢995
#12
BOLT, HEXAGON SOCKET HEAD
$6.88¢3 439
#13
NEUTRAL SWITCH ASSY
$57.82¢28 911
#14
Gasket
$5.21¢2 605
#15
OIL PRESSURE SWITCH ASSY
$66.99¢33 494
#16
WIRE, SUB LEAD
$14.04¢7 021
#17
SENSOR, AIR TEMPERATURE
$32.97¢16 485
#18
COVER, CONNECTOR
$3.76¢1 880
#19
Clamp
$3.04¢1 518
#20
MAIN SWITCH STEERING LOCK
$161.77¢80 885
#21
BLANK KEY | AP
$26.78¢13 392
#22
COVER, MAIN SWITCH
$36.59¢18 297
#23
BOLT, FLANGE
$7.56¢3 778
#24
RIVET
$1.13¢564
#25
PROTECTER, WIRE HARNESS
$46.99¢23 495
#26
HORN
$48.07¢24 035
#27
BOLT, BUTTON HEAD
$3.06¢1 529
#28
BRACKET, HORN
$17.62¢8 809
#29
HOLDER
$4.93¢2 467
#30
BOLT, FLANGE DEEP RECESS
$0.44¢218
#31
COMMUNICATION CONTROL UNIT
$1462.79¢731 394
#32
BAND
$55.27¢27 635
#33
BRACKET 4
$96.76¢48 381
#34
BLT,BTTN HD (replaces 90111-06007-00)
$6.75¢3 375
