REAR MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

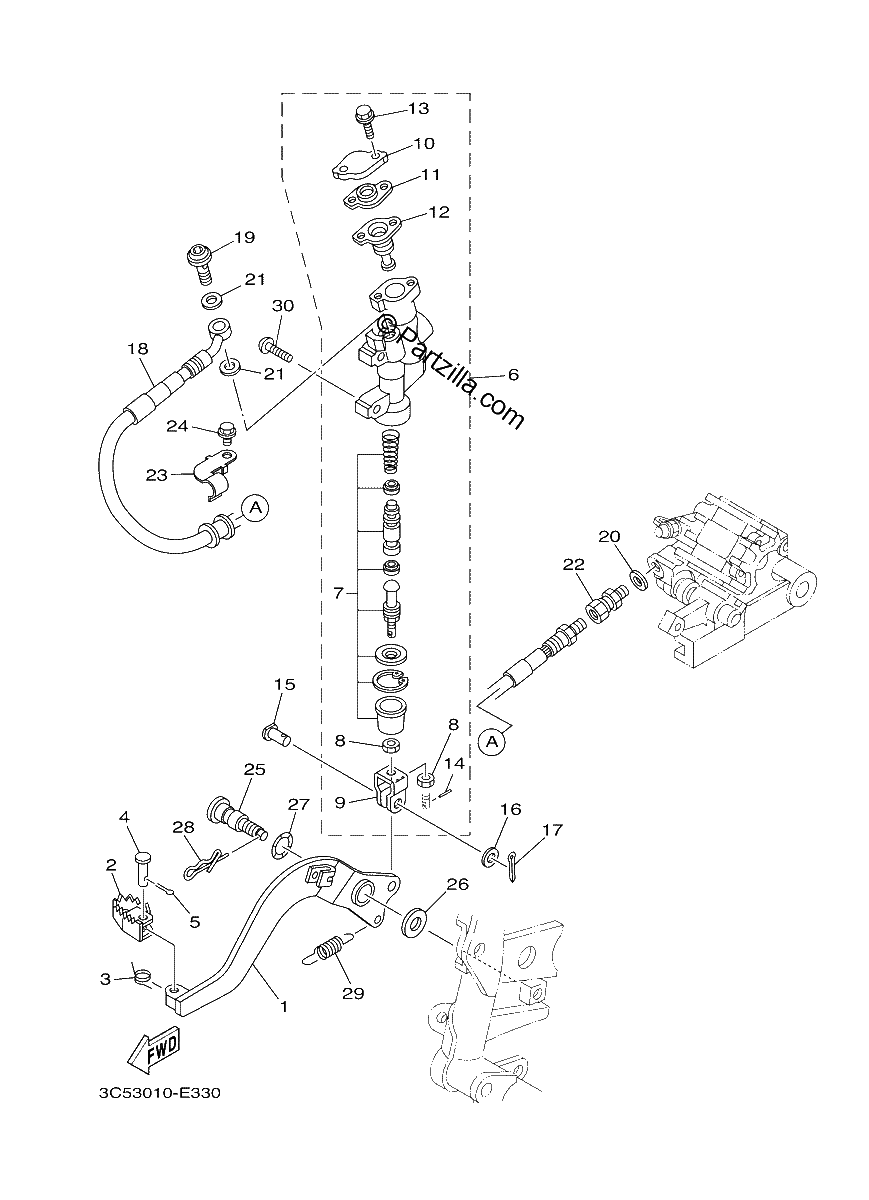

Diagrama de REAR MASTER CYLINDER

Repuestos

#1
3C5-27211-10-00
PEDAL, BRAKE
$55.77¢27 888
1
#2
55V-27242-00-00
PEDAL, BRAKE
$22.49¢11 247
1
#3
90508-14352-00
SPRING, TORSION
$7.56¢3 778
1
#4
91701-06022-00
PIN
$1.99¢995
1
#5
91401-20012-00
PIN, COTTER
$2.02¢1 012
1
#6
5XT-2583V-10-00
REAR MASTER CYLINDER ASSY.
$199.24¢99 619
1
#7
5XT-W0042-50-00
CYLINDER KIT, MASTER
$64.02¢32 010
1
#8
4SS-27218-00-00
NUT
$7.72¢3 858
1
#9
2YK-27222-00-00
JOINT
$21.75¢10 873
1
#10
5UN-25852-50-00
CAP, RESERVOIR
$16.38¢8 188
1
#11
5UN-2585B-00-00
PLATE, DIAPHRAGM
$7.04¢3 519
1
#12
5UN-25854-00-00
DIAPHRAGM, RESERVOIR
$13.48¢6 739
1
#13
5UN-27217-00-00
BOLT
$5.21¢2 605
1
#14
3KW-27234-00-00
PIN, BRAKE ROD
$7.28¢3 640
1
#15
90240-08005-00
PIN, CLEVIS
$6.75¢3 375
1
#16
90201-08083-00
WASHER, PLATE
$6.88¢3 439
1
#17
91401-16012-00
PIN, COTTER
$6.74¢3 370
1
#18
3C5-25873-00-00
HOSE, BRAKE 2
$65.34¢32 671
1
#19
90401-10172-00
BOLT, UNION
$4.06¢2 030
1
#20
90201-10118-00
WASHER, PLATE
$3.16¢1 581
1
#21
90430-10005-00
GASKET
$7.72¢3 858
1
#22
3LC-25885-00-00
JOINT
$26.94¢13 472
1
#23
3C5-25887-00-00
HOLDER, BRAKE HOSE
$5.30¢2 651
1
#24
95802-06008-00
BOLT, FLANGE
$5.30¢2 651
1
#25
5XT-27261-00-00
SHAFT
$11.97¢5 986
1
#26
90201-10135-00
WASHER, PLATE
$7.52¢3 760
1
#27
90206-14001-00
WASHER, WAVE
$8.06¢4 031
1
#28
90468-16191-00
CLIP
$6.75¢3 375
1
#29
90506-23008-00
SPRING, TENSION
$6.46¢3 231
1
#30
90149-06302-00
SCREW
$4.70¢2 352
1
