TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

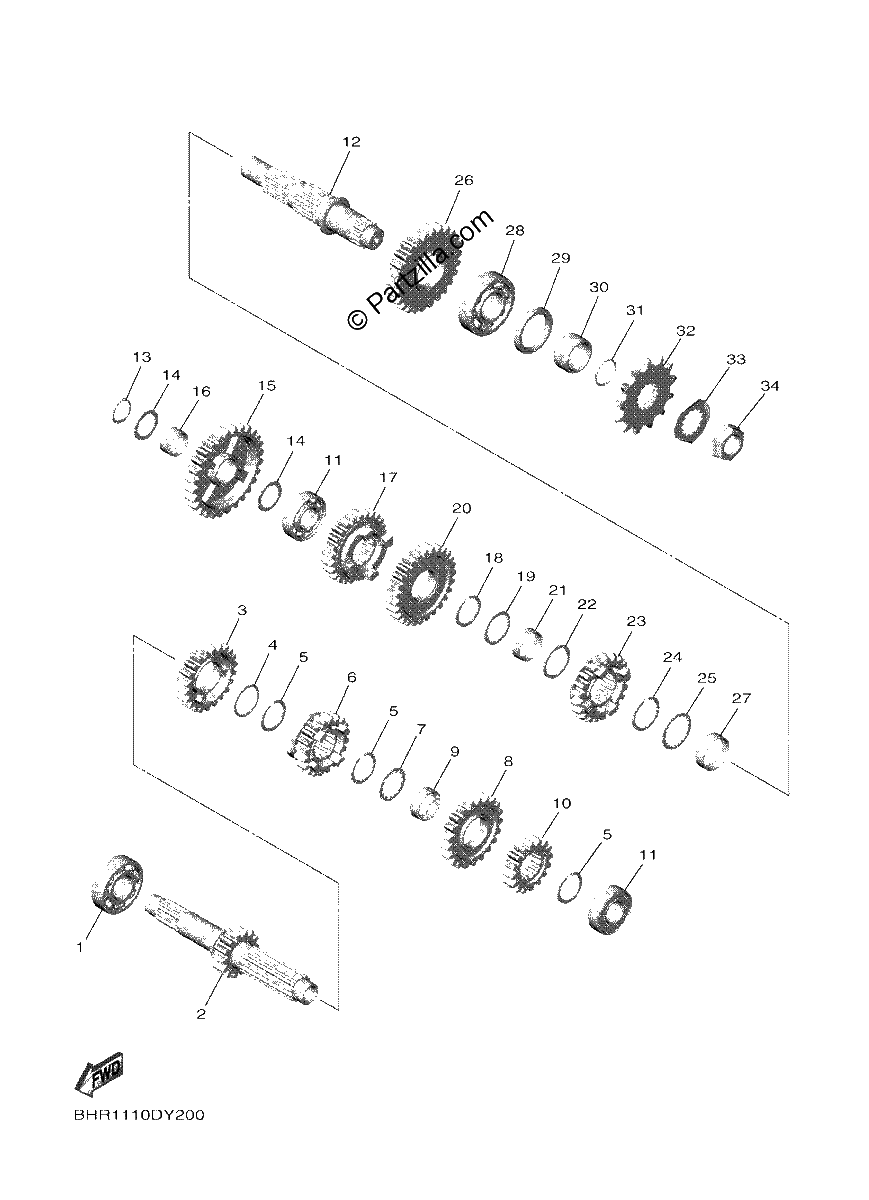

Diagrama de TRANSMISSION

Repuestos

#1
93306-27210-00
BEARING
$26.14¢13 069
1
#2
BNK-17411-00-00
AXLE, MAIN
$210.38¢105 188
1
#3
BNK-17141-00-00
GEAR, 4TH PINION (20T)
$150.60¢75 300
1
#4
90201-253K0-00
WASHER, PLATE (T=1.0)
$7.35¢3 675
1
#5
93440-25084-00
CIRCLIP
$4.86¢2 431
1
#6
BHR-17131-10-00
GEAR, 3RD PINION(20T)
$250.25¢125 125
1
#7
90209-21332-00
WASHER
$8.03¢4 013
1
#8
BNK-17151-00-00
GEAR, 5TH PINION(25T)
$136.46¢68 231
1
#9
90387-2113G-00
COLLAR
$43.22¢21 612
1
#10
BNK-17121-00-00
GEAR, 2ND PINION(15T)
$96.08¢48 038
1
#11
93306-00447-00
BEARING
$42.55¢21 275
1
#12
BHR-17402-00-00
DRIVE AXLE ASSY
$193.98¢96 988
1
#13
93410-20038-00
CIRCLIP
$3.11¢1 556
1
#14
90201-203E7-00
WASHER,PLATE
$8.60¢4 300
1
#15
BNK-17211-00-00
GEAR, 1ST WHEEL(30T)
$175.32¢87 663
1
#16
90387-20028-00
Collar
$24.22¢12 112
1
#17
BNK-17241-00-00
GEAR, 4TH WHEEL(22T)
$177.39¢88 694
1
#18
93440-25084-00
CIRCLIP
$4.86¢2 431
1
#19
90214-23002-00
WASHER, CLAW
$6.76¢3 381
1
#20
BHR-17231-00-00
GEAR, 3RD WHEEL(27T)
$159.82¢79 913
1
#21
90387-25041-00
COLLAR
$34.81¢17 406
1
#22
90201-25028-00
WASHER, PLATE
$12.09¢6 044
1
#23
BNK-17251-00-00
GEAR, 5TH WHEEL(22T)
$166.18¢83 088
1
#24
93440-28062-00
CIRCLIP,OUTER
$7.94¢3 969
1
#25
90209-26348-00
WASHER
$11.49¢5 744
1
#26
BNK-17221-00-00
GEAR, 2ND WHEEL (27T)
$135.92¢67 962
1
#27
90387-28032-00
COLLAR
$38.60¢19 300
1
#28
93306-20574-00
BEARING
$50.08¢25 038
1
#29
93102-32480-00
Oil Seal
$19.90¢9 950
1
#30
90387-25042-00
COLLAR
$42.29¢21 144
1
#31
93210-22164-00
O-RING
$7.81¢3 906
1
#32
9383E-13233-00
SPROCKET, DRIVE (13T)
$23.64¢11 819
1
#33
90215-21003-00
Washer, Lock
$6.41¢3 206
1
#34
90179-20017-00
NUT
$16.98¢8 488
1
