CRANKCASE COVER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

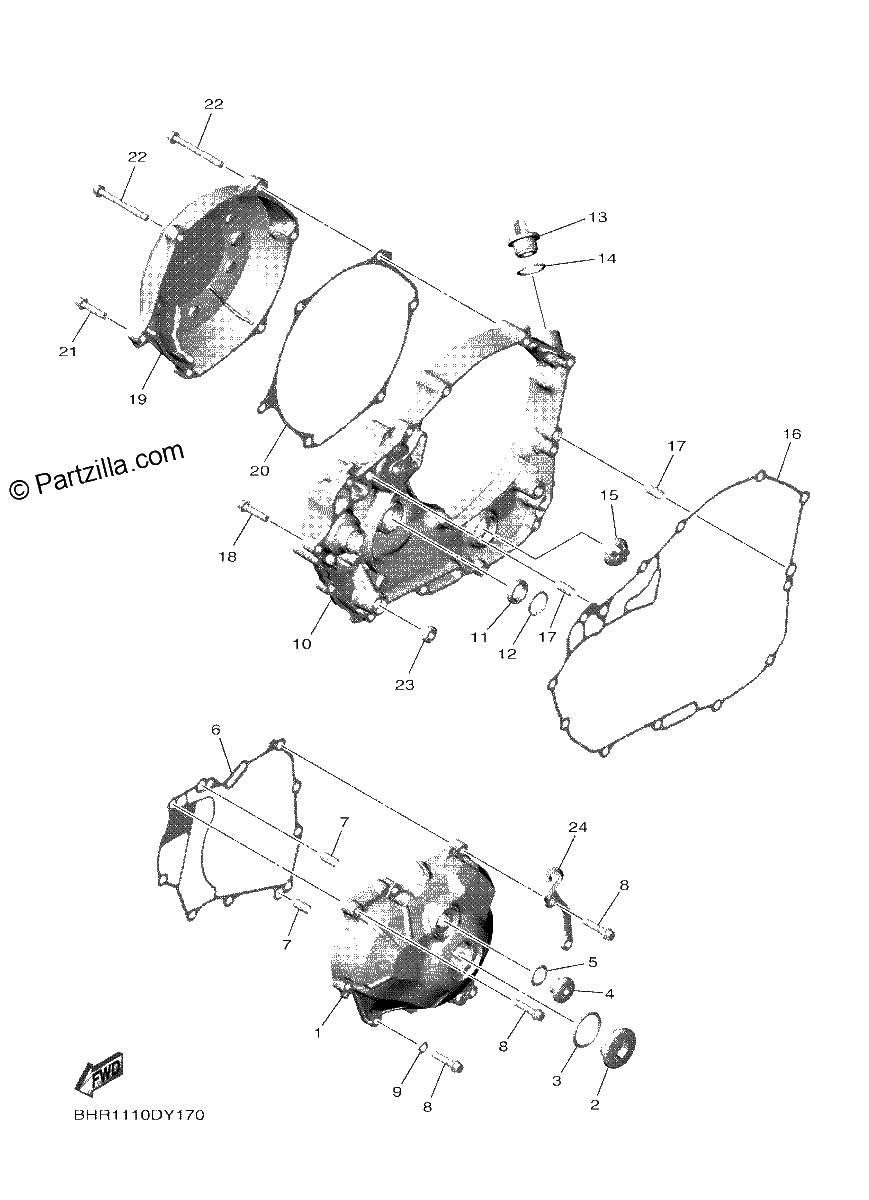

Diagrama de CRANKCASE COVER 1

Repuestos

#1
BHR-15411-00-00
COVER, CRANKCASE 1
$148.47¢74 238
1
#2
90340-27009-00
PLUG, STRAIGHT SCREW
$42.27¢21 138
1
#3
93210-27370-00
O-RING
$8.21¢4 106
1
#4
90340-14021-00
PLUG, STRAIGHT SCREW (replaces 90340-14020-00)
$31.95¢15 975
1
#5
93210-14369-00
O-Ring
$6.91¢3 456
1
#6
BHR-15451-00-00
GASKET, CRANKCASE COVER 1
$10.86¢5 431
1
#7
99530-08016-00
PIN, DOWEL
$6.71¢3 356
1
#8
95E32-06025-00
BOLT, FLANGE DEEP RECESS
$0.59¢294
1
#9
90430-06014-00
GASKET
$8.25¢4 125
1
#10
BHR-15431-00-00
COVER, CRANKCASE 3
$165.50¢82 750
1
#11
93101-14164-00
OIL SEAL
$11.55¢5 775
1
#12
99009-22500-00
CIRCLIP
$7.35¢3 675
1
#13
3Y1-15363-10-00
PLUG, OIL
$20.35¢10 175
1
#14
93210-19123-00
O-Ring
$8.24¢4 119
1
#15
3Y1-15361-00-00
GAUGE,LEVEL
$30.38¢15 188
1
#16
BHR-15462-00-00
GASKET, CRANKCASE COVER 3
$23.41¢11 706
1
#17
99530-08016-00
PIN, DOWEL
$6.71¢3 356
1
#18
95E32-06025-00
BOLT, FLANGE DEEP RECESS
$0.59¢294
1
#19
BHR-15415-00-00
COVER, 1
$337.49¢168 744
1
#20
BHR-15453-00-00
GASKET
$16.63¢8 313
1
#21
95E32-06025-00
BOLT, FLANGE DEEP RECESS
$0.59¢294
1
#22
95E32-06055-00
BOLT, FLANGE DEEP RECESS
$1.50¢750
1
#23
583-13113-00-00
SEAT, CHECK BALL
$24.57¢12 288
1
#24
BHR-15441-00-00
HOLDER, CLUTCH CABLE
$16.70¢8 350
1
