WATER PUMP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

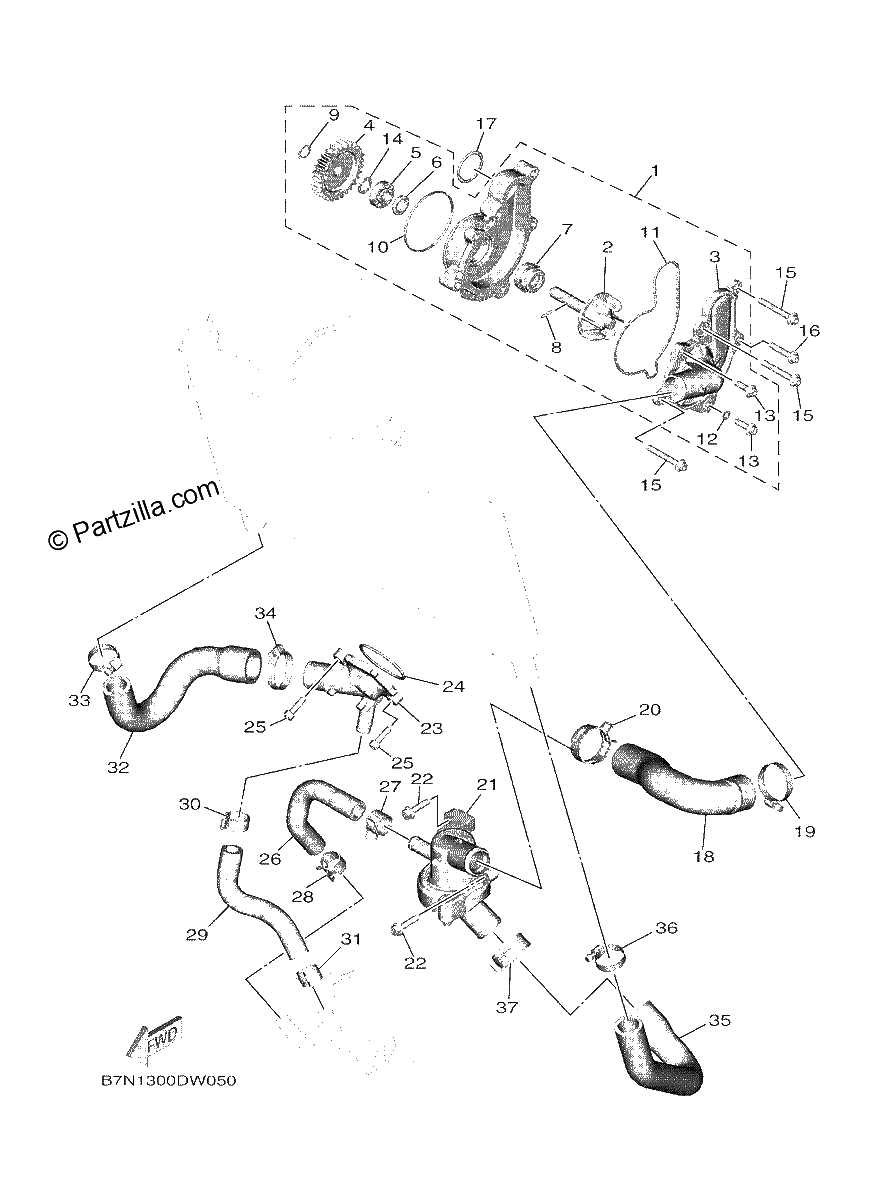

Diagrama de WATER PUMP

Repuestos

#1
1RC-12420-10-00
WATER PUMP ASSY
$221.31¢110 653
1
#2
1RC-12450-10-00
. IMPELLER SHAFT ASSY
$40.31¢20 154
1
#3
1RC-12422-00-00
COVER, HOUSING
$84.39¢42 193
1
#4
1RC-12459-00-00
GEAR, IMPELLER SHAFT
$29.23¢14 617
1
#5
93306-00106-00
. Bearing
$27.84¢13 921
1
#6
93101-12173-00
OIL SEAL
$12.39¢6 193
1
#7
5VK-12438-00-00
SEAL, MECHANICAL
$58.28¢29 141
1
#8
1RC-1319L-10-00
. PIN, STRAIGHT
$3.90¢1 949
1
#9
99009-12400-00
CIRCLIP
$3.37¢1 685
1
#10
93210-61750-00
O-RING
$7.30¢3 651
1
#11
1RC-12439-00-00
O-RING
$12.83¢6 417
1
#12
90430-06014-00
GASKET
$7.59¢3 795
1
#13
90110-06396-00
BOLT, HEXAGON SOCKET HEAD
$2.74¢1 368
1
#14
90201-12541-00
WASHER, PLATE
$6.55¢3 278
1
#15
90110-06394-00
BOLT, HEXAGON SOCKET HEAD
$1.94¢972
1
#16
90110-06388-00
BOLT, HEXAGON SOCKET HEAD
$5.37¢2 685
1
#17
93210-30694-00
O-RING
$5.45¢2 726
1
#18
1RC-12577-00-00
HOSE 2
$21.38¢10 689
1
#19
90450-38040-00
HOSE CLAMP ASSY
$17.27¢8 637
1
#20
90467-310A0-00
CLIP
$4.61¢2 306
1
#21
B7N-12410-00-00
THERMOSTAT ASSY
$132.42¢66 211
1
#22
95822-06025-00
Bolt, Flange
$1.61¢805
1
#23
1RC-12469-00-00
JOINT 1
$51.32¢25 662
1
#24
93210-46044-00
O-RING
$6.43¢3 214
1
#25
90110-06175-00
BOLT, HEXAGON SOCKET HEAD
$2.24¢1 121
1
#26
BS2-12578-00-00
HOSE 3
$10.83¢5 416
1
#27
90467-21068-00
CLIP
$6.73¢3 364
1
#28
90467-200A0-00
CLIP
$8.69¢4 347
1
#29
BS2-12579-00-00
HOSE 4
$11.78¢5 888
1
#30
90467-22002-00
Clip
$4.94¢2 472
1
#31
90467-200A0-00
CLIP
$8.69¢4 347
1
#32
B7N-12588-00-00
HOSE 5
$15.19¢7 596
1
#33
90450-32003-00
HOSE CLAMP ASSY
$15.50¢7 751
1
#34
90450-38040-00
HOSE CLAMP ASSY
$17.27¢8 637
1
#35
B7N-12576-00-00
HOSE 1
$25.50¢12 748
1
#36
90450-32003-00
HOSE CLAMP ASSY
$15.50¢7 751
1
#37
90467-310A0-00
CLIP
$4.61¢2 306
1
