HANDLE SWITCH LEVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

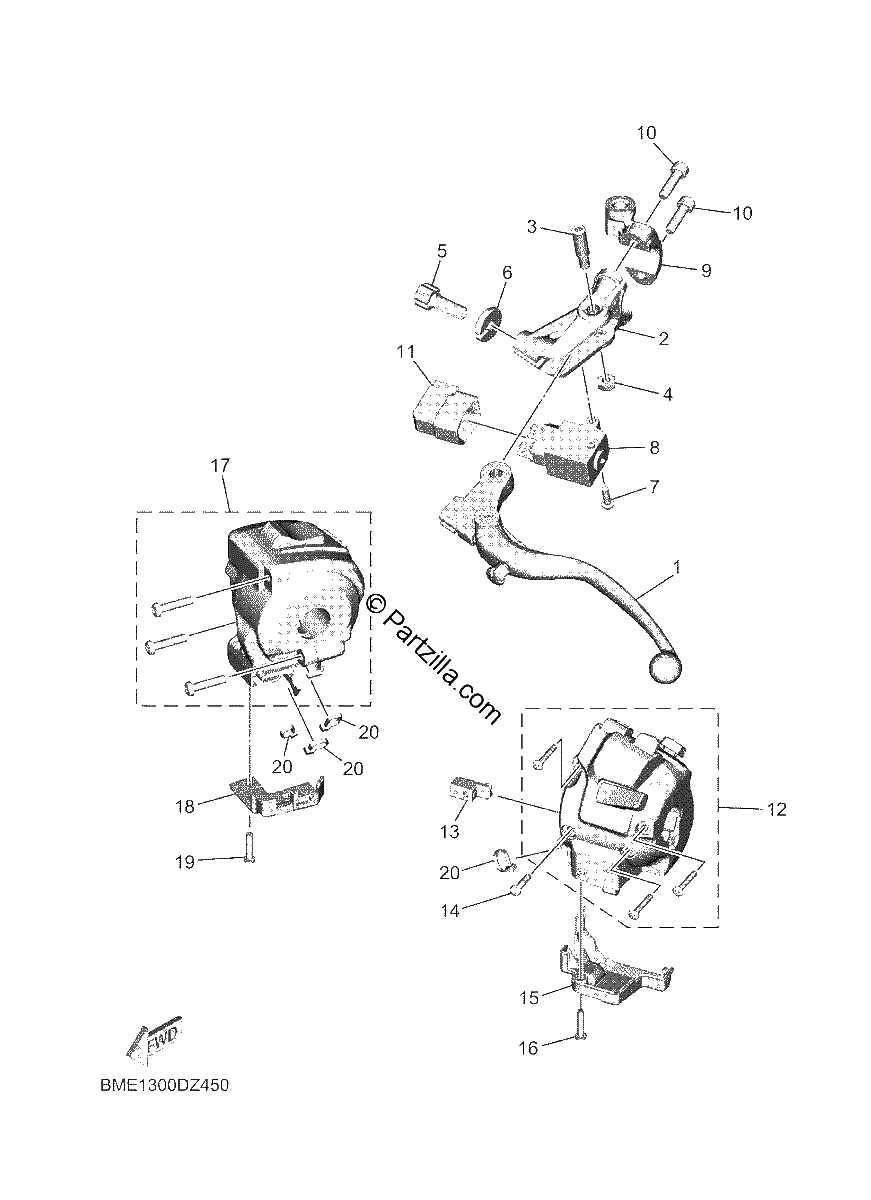

Diagrama de HANDLE SWITCH LEVER

Repuestos

#1
BME-83922-00-00
LEVER 2
$51.06¢25 531
1
#2
BME-82911-10-00
HOLDER, LEVER 1
$29.85¢14 925
1
#3
BME-2589F-00-00
BOLT, LEVER
$6.40¢3 200
1
#4
95617-06100-00
NUT,U (replaces 95602-06100-00)
$2.86¢1 431
1
#5
BME-26382-00-00
BOLT, AJUSTING
$23.64¢11 819
1
#6
90179-08148-00
NUT
$4.64¢2 319
1
#7
BME-2632G-00-00
SCREW
$5.88¢2 938
1
#8
BME-82917-00-00
SWITCH
$77.75¢38 875
1
#9
BME-2629N-10-00
BRACKET, MIRROR 1
$27.14¢13 569
1
#10
91314-06020-00
BOLT (3JB) (replaces 91312-06020-00)
$2.44¢1 219
1
#11
BME-8291G-00-00
COVER, SWITCH
$12.69¢6 344
1
#12
BME-8291L-00-00
SW., HANDLE LH
$500.44¢250 219
1
#13
BME-83525-00-00
CLIP
$9.96¢4 981
1
#14
98507-04016-00
. SCREW, PAN HEAD
$7.35¢3 675
1
#15
BME-8246B-00-00
COVER 1
$13.05¢6 525
1
#16
98507-04018-00
SCREW, PAN HEAD
$1.46¢731
1
#17
BME-8291R-00-00
SW., HANDLE RH
$470.49¢235 244
1
#18
BME-8249A-00-00
COVER 2
$10.60¢5 300
1
#19
98507-04018-00
SCREW, PAN HEAD
$1.46¢731
1
#20
90465-10098-00
CLAMP
$2.78¢1 388
1
