FENDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

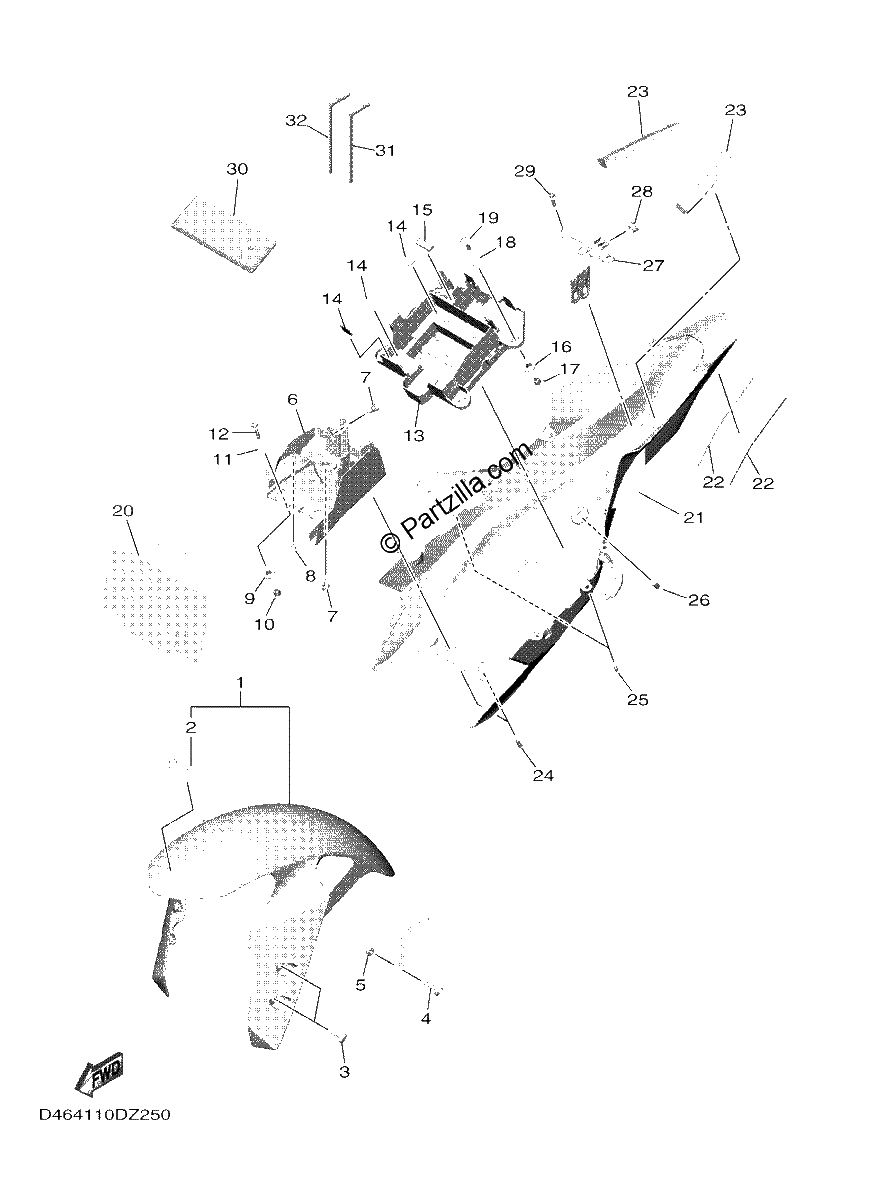

Diagrama de FENDER

Repuestos

#1
2KS-Y2151-00-00
FRONT FENDER ASSY
$2128.64¢1 064 319
1
#2
99246-00080-00
EMBLEM,YAMAHA(4BP)
$19.41¢9 706
1
#3
90111-06043-00
BOLT, HEX. SOCKET BUTTON
$3.65¢1 823
1
#4
90111-06041-00
BOLT, HEX. SOCKET BUTTON
$6.88¢3 439
1
#5
95707-06500-00
NUT, FLANGE
$0.86¢431
1
#6
B3L-8212B-00-00
BOX, BATTERY 1
$28.95¢14 473
1
#7
90105-06181-00
Bolt, Flange
$1.64¢822
1
#8
90338-07043-00
PLUG
$6.03¢3 013
1
#9
90480-13018-00
GROMMET
$6.83¢3 415
1
#10
90387-073M2-00
COLLAR
$8.00¢4 002
1
#11
90201-06088-00
WASHER, PLATE
$6.87¢3 433
1
#12
90110-06172-00
BOLT, HEXAGON SOCKET HEAD
$8.92¢4 462
1
#13
2CR-8212C-00-00
BOX, BATTERY 2
$25.16¢12 581
1
#14
13S-21649-00-00
DAMPER
$7.23¢3 617
1
#15
5HN-2139X-00-00
DAMPER
$1.28¢638
1
#16
90480-13018-00
GROMMET
$6.83¢3 415
1
#17
90387-073M2-00
COLLAR
$8.00¢4 002
1
#18
90201-06088-00
WASHER, PLATE
$6.87¢3 433
1
#19
90110-06172-00
BOLT, HEXAGON SOCKET HEAD
$8.92¢4 462
1
#20
B3L-21652-00-00
Protector
$13.59¢6 797
1
#21
2CR-21611-01-00
FENDER, REAR
$41.12¢20 562
1
#22
3C5-2414H-00-00
DAMPER, PLATE 1
$5.21¢2 605
1
#23
90520-20003-00
DAMPER, PLATE
$6.87¢3 433
1
#24
90269-06008-00
RIVET
$8.10¢4 048
1
#25
90269-05005-00
RIVET
$3.29¢1 644
1
#26
90269-07076-00
RIVET,SPEC'L SHAPE
$6.55¢3 278
1
#27
2CR-2117E-01-00
BRACKET, TAILLIGHT
$23.72¢11 862
1
#28
90480-10003-00
GROMMET
$6.88¢3 439
1
#29
90110-06163-00
BOLT, HEXAGON SOCKET
$8.39¢4 198
1
#30
2CR-28100-01-00
TOOL KIT
$59.26¢29 630
1
#31
23P-28164-00-00
WRENCH, HEXAGON 8
$2.99¢1 495
1
#32
14B-28164-00-00
WRENCH, HEXAGON 8
$4.13¢2 064
1
