OIL PUMP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

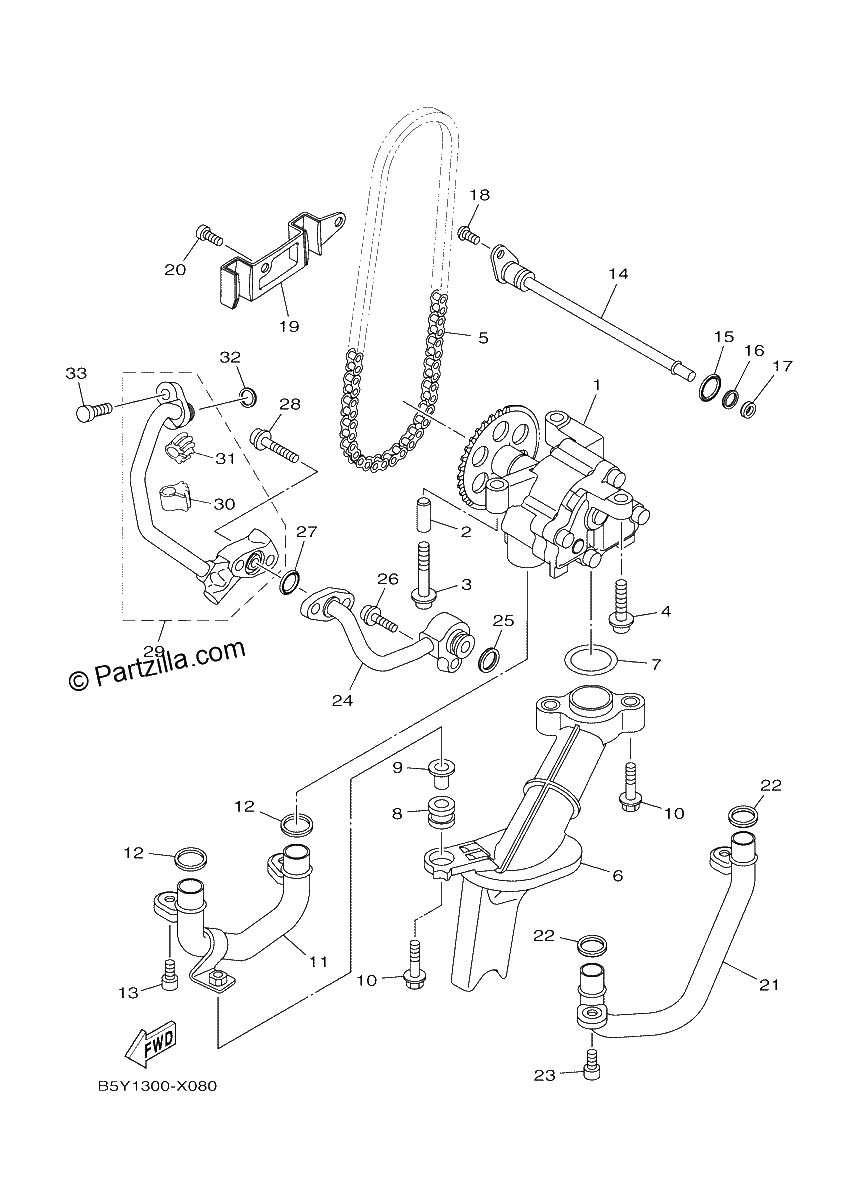

Diagrama de OIL PUMP

Repuestos

#1
2CR-13300-00-00
OIL PUMP ASSY
$242.74¢121 371
1
#2
91808-22019-00
PIN, DOWEL
$7.51¢3 755
1
#3
90110-06432-00
BOLT, HEXAGON SOCKET HEAD
$1.66¢828
1
#4
90110-06173-00
BOLT, HEXAGON SOCKET HEAD
$8.92¢4 462
1
#5
94580-31080-00
CHAIN
$23.47¢11 736
1
#6
2CR-13410-01-00
STRAINER HOUSING ASSY
$24.90¢12 449
1
#7
93210-22M93-00
O-RING
$4.28¢2 139
1
#8
90480-13010-00
GROMMET
$6.57¢3 283
1
#9
5VY-13117-10-00
COLLAR, DISTANCE
$9.41¢4 703
1
#10
90110-06173-00
BOLT, HEXAGON SOCKET HEAD
$8.92¢4 462
1
#11
2CR-13416-00-00
PIPE, OIL 1
$51.08¢25 542
1
#12
93210-14003-00
O-RING
$7.07¢3 536
1
#13
90110-06182-00
BOLT
$6.75¢3 375
1
#14
2CR-1316E-00-00
PIPE, DELIVERY 5
$51.95¢25 973
1
#15
93210-12010-00
O-Ring
$7.38¢3 691
1
#16
93210-09525-00
O-Ring
$5.16¢2 582
1
#17
93210-06667-00
O-RING
$6.36¢3 180
1
#18
90149-06158-00
SCREW
$6.96¢3 479
1
#19
2CR-13898-00-00
HOLDER
$23.47¢11 736
1
#20
90110-06182-00
BOLT
$6.75¢3 375
1
#21
2CR-13171-00-00
PIPE, DELIVERY 2
$41.54¢20 769
1
#22
93210-13361-00
O-RING
$4.51¢2 254
1
#23
90110-06182-00
BOLT
$6.75¢3 375
1
#24
2CR-13405-00-00
OIL PIPE COMP. 1
$106.95¢53 475
1
#25
93210-12790-00
O-RING
$6.30¢3 151
1
#26
90110-06395-00
BOLT, HEXAGON SOCKET HEAD
$2.74¢1 368
1
#27
93210-12790-00
O-RING
$6.30¢3 151
1
#28
90110-06389-00
BOLT, HEXAGON SOCKET HEAD
$5.37¢2 685
1
#29
2CR-13170-00-00
DELIVERY PIPE ASSY 2
$203.96¢101 982
1
#30
2CR-13159-00-00
DAMPER
$5.04¢2 519
1
#31
2CR-13593-00-00
DAMPER
$6.50¢3 249
1
#32
93210-09754-00
O-RING
$6.36¢3 180
1
#33
90110-06295-00
BOLT, HEXAGON SOCKET HEAD
$7.30¢3 651
1
