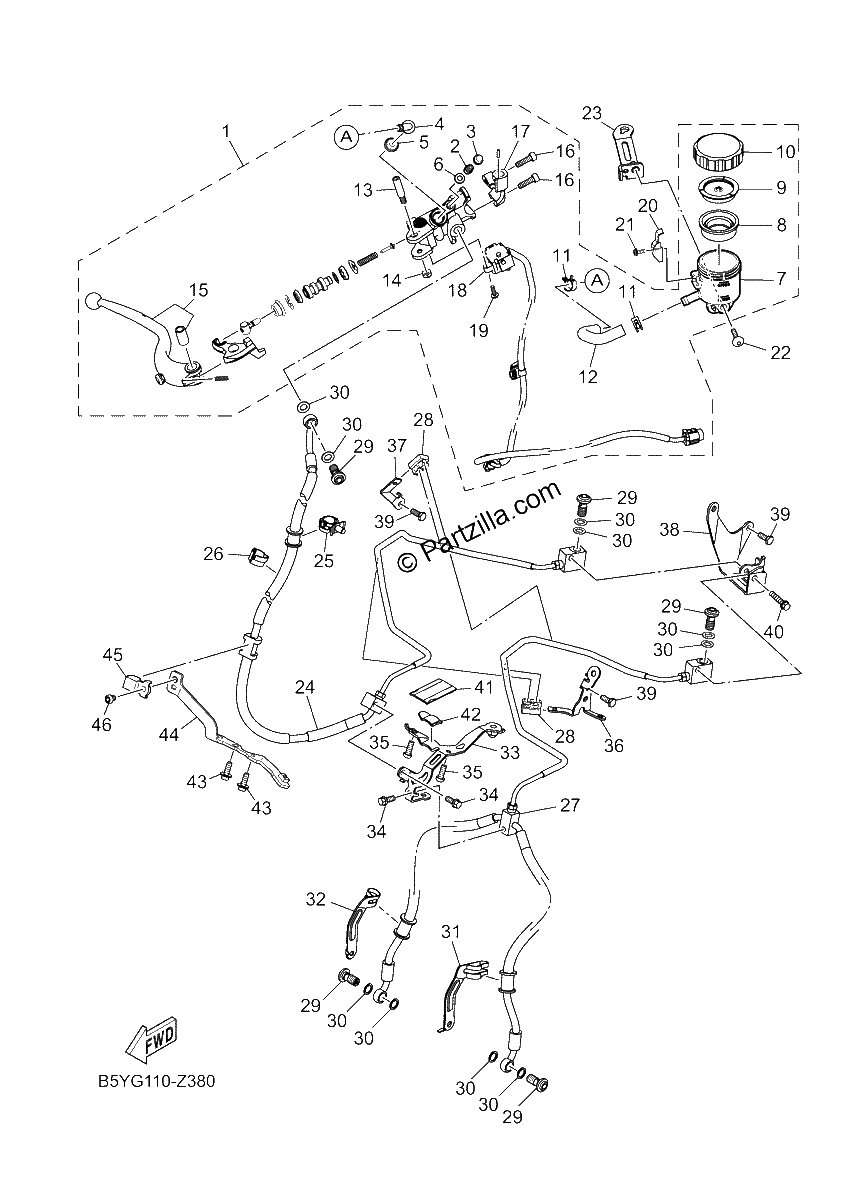

FRONT MASTER CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
MASTER CYLINDER ASSY
$806.39¢403 194
#2
SCREW, BLEED
$8.97¢4 488
#3
CAP
$13.90¢6 950
#4
JOINT
$4.41¢2 206
#5
O-RING
$11.39¢5 694
#6
SEAL 1
$1.93¢963
#7
TANK, RESERVOIR
$66.19¢33 094
#8
DIAPHRAGM, RESERVOIR
$33.59¢16 794
#9
BUSH, DIAPHRAGM
$4.49¢2 244
#10
CAP, RESERVOIR
$18.90¢9 450
#11
CLIP
$6.99¢3 494
#12
HOSE, RESERVOIR
$20.11¢10 056
#13
BOLT, LEVER
$7.48¢3 738
#14
NUT,U (replaces 95602-06100-00)
$2.86¢1 431
#15
LEVER SET
$57.67¢28 838
#16
BOLT (3JB) (replaces 91312-06020-00)
$2.44¢1 219
#17
BRACKET, MASTER CYLINDER
$63.30¢31 650
#18
FRONT STOP SWITCH ASSY
$173.19¢86 594
#19
SCREW, PAN HEAD WITH WASHER
$6.14¢3 069
#20
HOLDER
$8.92¢4 462
#21
SCREW
$7.60¢3 800
#22
BOLT (replaces 90111-05030-00)
$2.05¢1 025
#23
STAY
$42.33¢21 163
#24
BRAKE HOSE ASSY
$238.86¢119 431
#25
CLAMP
$3.50¢1 750
#26
CLAMP
$3.83¢1 913
#27
HOSE, BRAKE
$292.82¢146 413
#28
CLAMP
$2.75¢1 375
#29
BOLT, UNION
$4.41¢2 206
#30
GASKET
$8.39¢4 194
#31
HOLDER, BRAKE HOSE 1
$14.66¢7 331
#32
HOLDER, BRAKE HOSE 2
$13.73¢6 863
#33
BRACKET
$40.23¢20 113
#34
BLT,BTTN HD (replaces 90111-06007-00)
$7.34¢3 669
#35
BOLT, FLANGE DEEP RECESS
$0.41¢206
#36
BRKT 2
$13.01¢6 506
#37
BRACKET 3
$6.40¢3 200
#38
BRACKET 4
$39.98¢19 988
#39
BOLT
$1.39¢694
#40
BOLT, FLANGE DEEP RECESS
$0.85¢425
#41
DAMPER
$7.70¢3 850
#42
DAMPER, LOCATING 1
$1.10¢550
#43
BOLT, HEXAGON SOCKET HEAD
$3.09¢1 544
#44
BRACKET, HORN
$31.74¢15 869
#45
CLAMP
$10.08¢5 038
#46
BOLT, BUTTON HEAD
$3.65¢1 825
