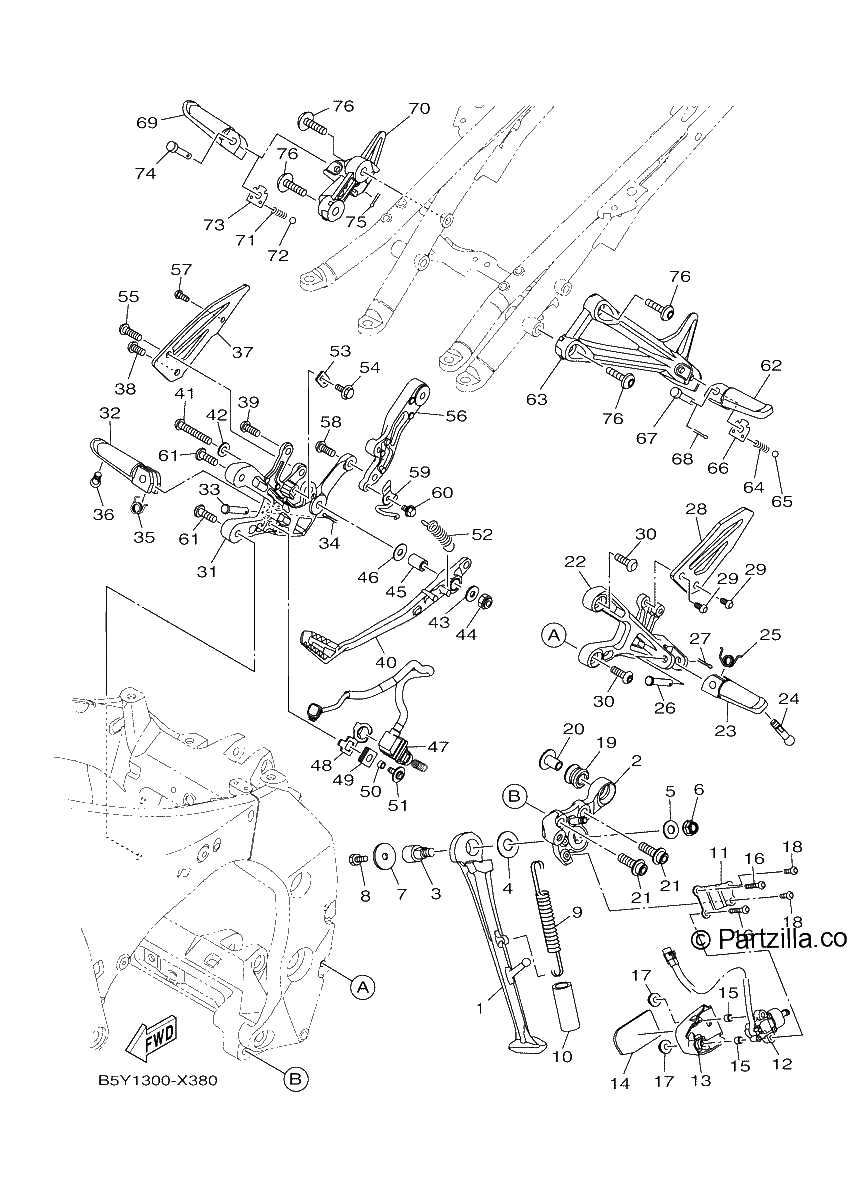

STAND FOOTREST
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
STAND, SIDE
$267.25¢133 624
#2
BRACKET, SIDE STAND
$225.77¢112 884
#3
GUIDE, SIDE STAND
$38.77¢19 383
#4
WASHER, PLATE
$5.47¢2 737
#5
WASHER, plate
$3.91¢1 955
#6
NUT, U FLANGE
$2.51¢1 254
#7
WASHER, PLATE
$5.37¢2 685
#8
bolt
$2.77¢1 386
#9
SPRING, TENSION
$14.03¢7 015
#10
HOSE (L60)
$4.30¢2 151
#11
BRACKET, SENSOR 1
$11.37¢5 687
#12
SWITCH, SIDE STAND
$111.71¢55 856
#13
COVER 1
$11.19¢5 595
#14
SEAT 1
$3.52¢1 759
#15
COLLAR
$5.66¢2 829
#16
BOLT, BUTTON HEAD
$5.69¢2 846
#17
NUT, SELF-LOCKING
$7.51¢3 755
#18
BOLT, HEXAGON SOCKET HEAD
$6.88¢3 439
#19
DAMPER, MUFFLER
$13.48¢6 739
#20
COLLAR
$9.33¢4 663
#21
BOLT
$10.61¢5 307
#22
BRACKET 2
$70.46¢35 230
#23
Footrest
$20.55¢10 275
#24
BOLT
$4.48¢2 242
#25
SPRING, TORSION
$6.76¢3 381
#26
PIN
$4.45¢2 225
#27
PIN, COTTER
$3.32¢1 662
#28
PLATE 1
$41.31¢20 654
#29
BOLT,HEX. SOCKET BUTTON
$2.74¢1 368
#30
BOLT,HEX. SOCKET BUTTON
$2.08¢1 041
#31
BRACKET 3
$88.73¢44 367
#32
FOOTREST
$23.85¢11 925
#33
PIN
$4.45¢2 225
#34
PIN, COTTER
$3.32¢1 662
#35
SPRING, TORSION
$8.10¢4 048
#36
BOLT
$4.48¢2 242
#37
PLATE 2
$34.64¢17 319
#38
BOLT, BUTTON HEAD
$7.65¢3 824
#39
BOLT, BUTTON HEAD
$2.44¢1 219
#40
PEDAL, BRAKE
$129.64¢64 820
#41
BOLT, BUTTON HEAD
$2.50¢1 248
#42
WASHER
$0.25¢127
#43
WASHER, PLATE
$6.30¢3 151
#44
NUT, SELF-LOCKING
$8.00¢4 002
#45
COLLAR
$8.03¢4 013
#46
WASHER, PLATE
$6.21¢3 105
#47
STOP SWITCH ASSY
$65.62¢32 810
#48
STAY, STOP SWITCH
$5.65¢2 823
#49
GROMMET
$9.36¢4 681
#50
COLLAR
$3.83¢1 915
#51
SCREW, WITH WASHER
$7.08¢3 542
#52
SPRING, TENSION
$4.30¢2 151
#53
BRACKET 1
$3.01¢1 507
#54
BLOT, FLANGE DEEP RECESS
$0.68¢339
#55
BOLT, BUTTON HEAD
$6.30¢3 151
#56
STAY, MUFFLER 3
$88.20¢44 103
#57
BOLT, BUTTON HEAD
$6.76¢3 381
#58
BOLT, BUTTON HEAD
$2.44¢1 219
#59
BRACKET 4
$16.04¢8 021
#60
BLOT, FLANGE DEEP RECESS
$0.68¢339
#61
BOLT,HEX. SOCKET BUTTON
$2.08¢1 041
#62
FOOTREST, REAR 1
$40.51¢20 257
#63
BRACKET 4
$66.85¢33 425
#64
SPRING, COMPRESSION
$3.51¢1 754
#65
BALL
$6.87¢3 433
#66
WASHER, SPECIAL
$7.35¢3 674
#67
PIN, CLEVIS
$4.45¢2 225
#68
PIN, COTTER
$3.32¢1 662
#69
FOOTREST, REAR 2
$35.21¢17 607
#70
BRACKET 5
$68.66¢34 328
#71
SPRING, COMPRESSION
$3.51¢1 754
#72
BALL
$6.87¢3 433
#73
WASHER, SPECIAL
$7.35¢3 674
#74
PIN, CLEVIS
$4.45¢2 225
#75
PIN, COTTER
$3.32¢1 662
#76
BOLT,HEX. SOCKET BUTTON
$2.08¢1 041
