COWLING

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

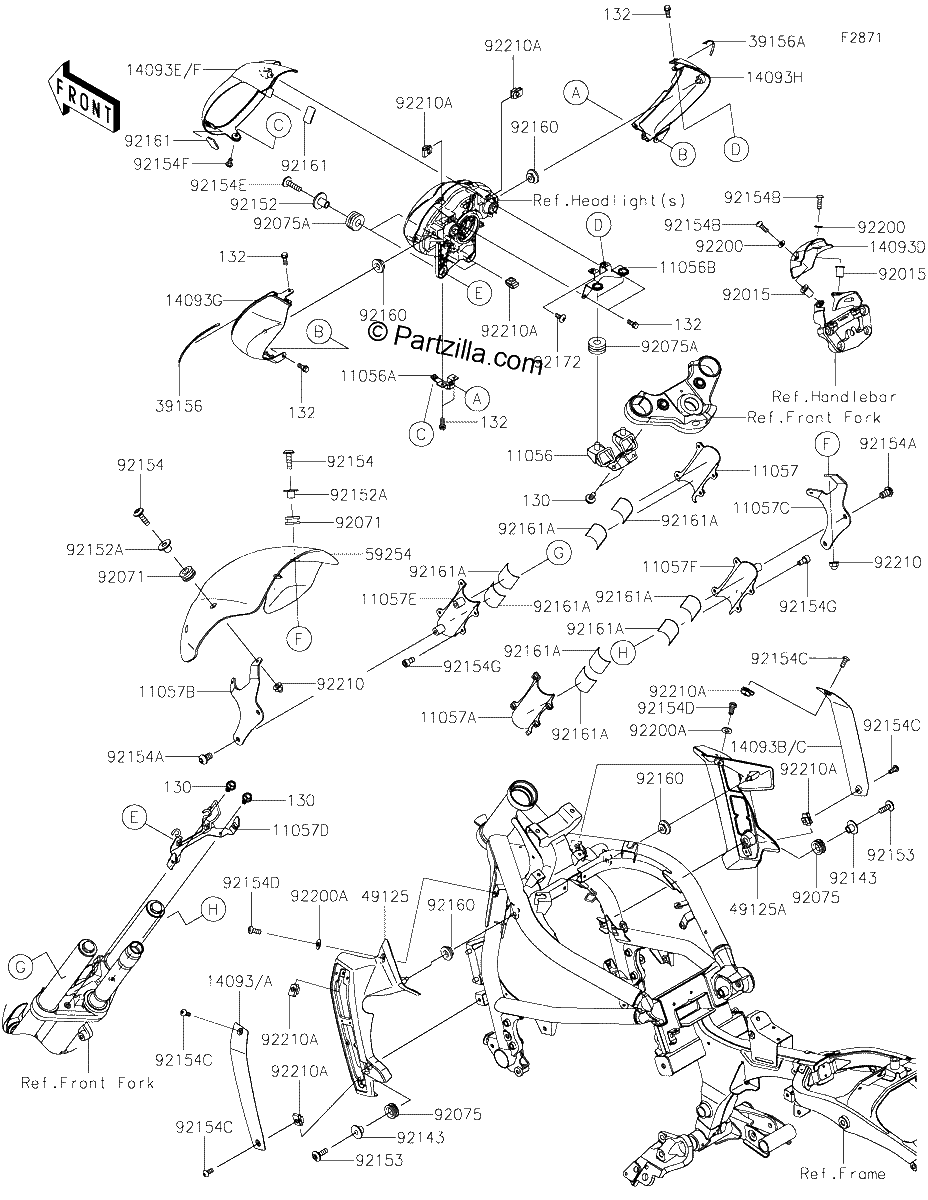

Diagrama de COWLING

Repuestos

#130
130BB0612
BOLT FLANGED,6X12
$2.01¢1 006
1
#132
132BB0512
BOLT-FLANGED-SMALL,5X12
$3.35¢1 673
1
#11056A
11056-4384
BRACKET,HEAD LAMP COVER,Lower
$3.83¢1 915
1
#11056
11056-4380
BRACKET,HEAD LAMP,Upper
$42.04¢21 022
1
#11056B
11056-4385
BRACKET,HEAD LAMP COVER,UPP
$12.65¢6 325
1
#11057
11057-0215
BRACKET,LH,INNER
$86.58¢43 292
1
#11057F
11057-0858
BRACKET,RH,OUTER
$112.98¢56 488
1
#11057A
11057-0217
BRACKET,RH,INNER
$86.58¢43 292
1
#11057B
11057-0220
BRACKET,LH
$46.00¢23 000
1
#11057C
11057-0221
BRACKET,RH
$46.00¢23 000
1
#11057D
11057-0706
BRACKET,HEAD LAMP,LWR
$17.80¢8 901
1
#11057E
11057-0857
BRACKET,LH,OUTER
$112.98¢56 488
1
#14093
14093-0113-36S
COVER,SHROUD,LH,P.S.GRAY
$82.03¢41 015
1
#14093
14093-0113-62J
COVER,SHROUD,LH,C.S.F.ORANGE
$82.03¢41 015
1
#14093B
14093-0114-36S
COVER,SHROUD,RH,P.S.GRAY
$82.03¢41 015
1
#14093H
14093-0497-45L
COVER,HEAD LAMP,RH,F.EBONY
$74.42¢37 208
1
#14093B
14093-0114-62J
COVER,SHROUD,RH,C.S.F.ORANGE
$82.03¢41 015
1
#14093D
14093-0128
COVER,METER
$10.26¢5 129
1
#14093E
14093-0339-36S
COVER,HEAD LAMP,P.S.GRAY
$150.68¢75 342
1
#14093E
14093-0339-62J
COVER,HEAD LAMP,C.S.F.ORANGE
$150.68¢75 342
1
#14093G
14093-0496-45L
COVER,HEAD LAMP,LH,F.EBONY
$74.42¢37 208
1
#39156
39156-2120
PAD,HEAD LAMP COVER,LH
$3.91¢1 955
1
#39156A
39156-2121
PAD,HEAD LAMP COVER,RH
$3.91¢1 955
1
#49125A
49125-0587
SHROUD,Right Hand
$73.38¢36 691
1
#49125
49125-0586
SHROUD,LH
$73.38¢36 691
1
#59254
59254-0005
Deflector
$206.72¢103 362
1
#92015
92015-1757
NUT,WELL,5MM
$6.68¢3 341
1
#92071
92071-0759
GROMMET,10X20X10
$1.70¢851
1
#92075A
92075-1690
DAMPER,10X24X12
$4.57¢2 283
1
#92075
92075-1634
DAMPER
$4.28¢2 139
1
#92143
92143-1962
COLLAR
$5.08¢2 541
1
#92152A
92152-2251
COLLAR,6.8X10X11.1
$5.53¢2 766
1
#92152
92152-2106
COLLAR,6.5X24X15.3
$3.54¢1 771
1
#92153
92153-0816
BOLT,6X18
$1.87¢937
1
#92154A
92154-1032
BOLT,SOCKET,8X14
$3.52¢1 759
1
#92154B
92154-1470
BOLT,SOCKET,5X16
$1.37¢684
1
#92154C
92154-1471
BOLT,SOCKET,5X12
$1.37¢684
1
#92154D
92154-1512
BOLT,SOCKET,6X14
$1.68¢839
1
#92154E
92154-1532
BOLT,SOCKET,6X25
$2.10¢1 052
1
#92154F
92154-1547
BOLT,SOCKET,5X10
$1.43¢713
1
#92154G
92154-2688
BOLT-SOCKET,6X12
$2.21¢1 104
1
#92154
92154-0787
BOLT,SOCKET,6X22
$2.36¢1 179
1
#92160
92160-1613
DAMPER
$3.40¢1 702
1
#92161A
92161-1868
DAMPER,60X140X1
$14.70¢7 348
1
#92161
92161-1367
DAMPER,12X23
$1.14¢569
1
#92172
92172-0821
SCREW,5X12
$0.87¢437
1
#92200A
92200-1388
WASHER,6.5X14X1
$2.10¢1 052
1
#92200
92200-0973
WASHER,5.3X11X1
$0.97¢483
1
#92210
92210-0322
NUT,CAP,6MM
$1.24¢621
1
#92210A
92210-0935
NUT,PLATE,5MM
$1.72¢862
1
