OIL PUMP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

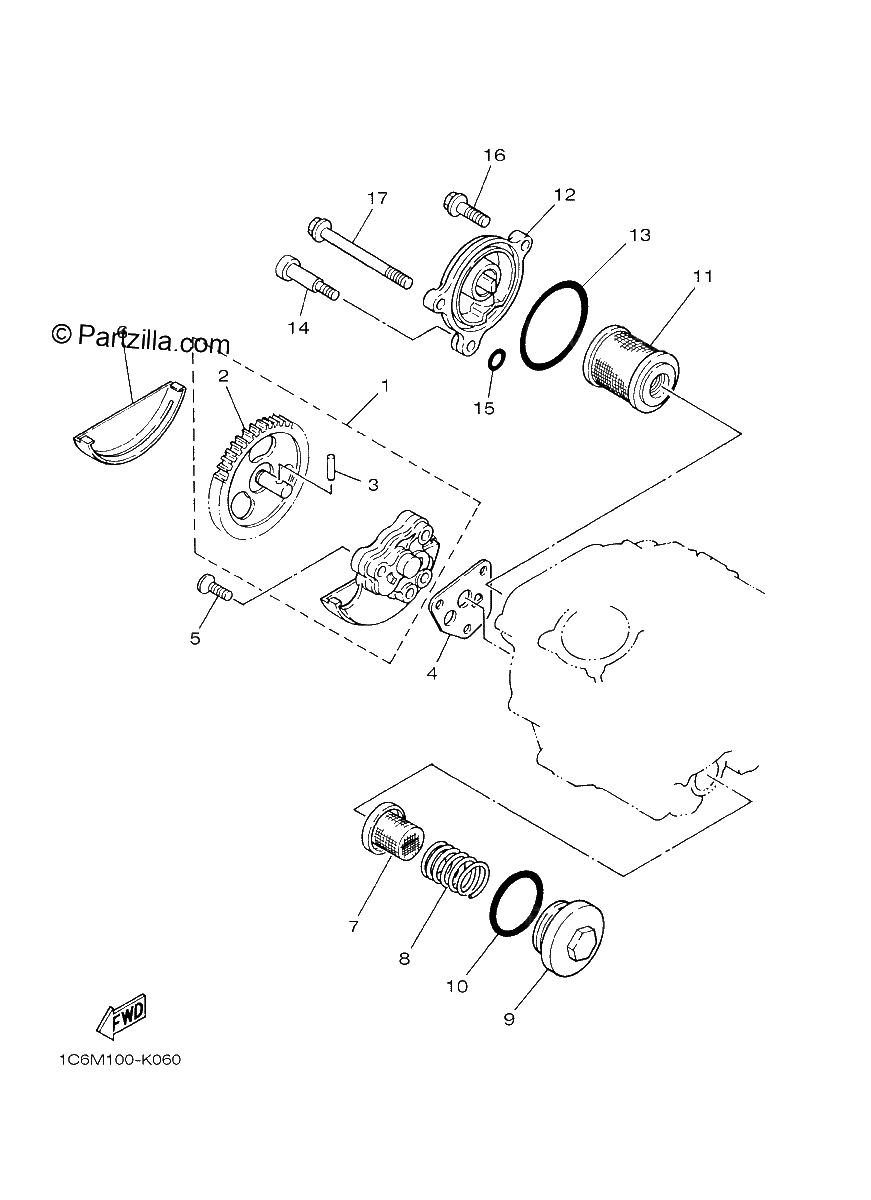

Diagrama de OIL PUMP

Repuestos

#1
5H0-13300-02-00
OIL PUMP ASSY
$174.59¢87 294
1
#2
5H0-13326-01-00
GEAR, PUMP DRIVEN 2 (45T)
$44.05¢22 025
1
#3
93603-12030-00
PIN, DOWEL
$2.31¢1 156
1
#4
4BE-13329-01-00
GASKET, PUMP COVER
$7.70¢3 850
1
#5
9870M-06030-00
SCREW, FLAT HEAD
$7.24¢3 619
1
#6
5H0-13327-00-00
COVER,PUMP GEAR
$30.44¢15 219
1
#7
51Y-13411-00-00
STRAINER, OIL
$38.00¢19 000
1
#8
90501-18576-00
SPRING, COMPRESSION
$7.34¢3 669
1
#9
4VW-E5351-00-00
PLUG, DRAIN
$30.21¢15 106
1
#10
93210-347A1-00
O-RING
$6.81¢3 406
1
#11
5H0-13440-00-00
ELEMENT ASSY, OIL CLEANER
$11.97¢5 988
1
#12
4VW-E3447-01-00
COVER, OIL ELEMENT
No Disponible
1
#13
93210-54175-00
O-RING
$14.04¢7 019
1
#14
90109-065G0-00
bolt
$7.99¢3 994
1
#15
93210-07135-00
O-RING
$5.60¢2 800
1
#16
9502M-06025-00
BOLT, FLANGE
$3.77¢1 888
1
#17
90105-064A6-00
BOLT, WASHER BASED
$8.18¢4 088
1
