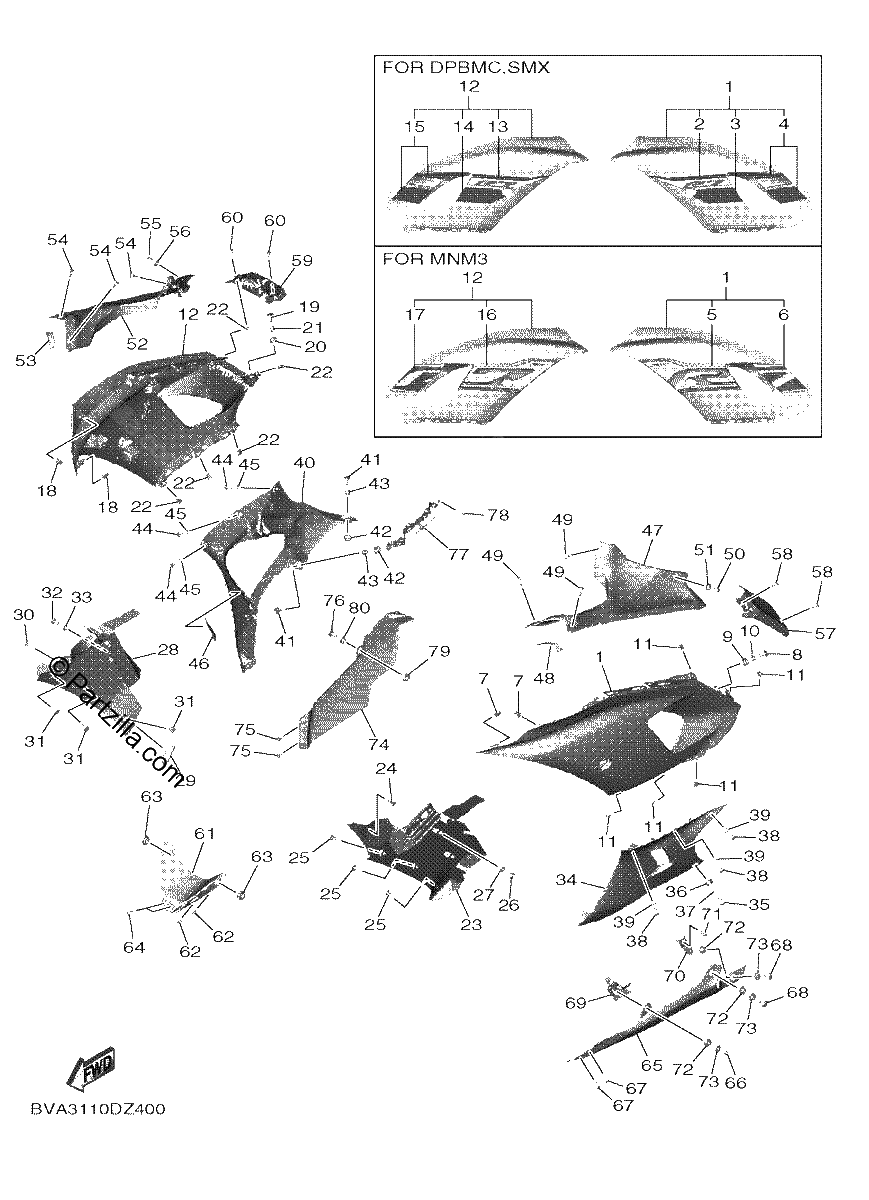

COWLING 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
PANEL ASSY 1 (BLACK METALLIC X) *{UR FOR SMX}*
$221.10¢110 550
#2
GRAPHIC 1 (BLACK METALLIC X) *{UR FOR SMX}*
$51.40¢25 700
#3
GRAPHIC 3 (BLACK METALLIC X) *{UR FOR SMX}*
$30.72¢15 362
#4
GRAPHIC 5 (BLACK METALLIC X) *{UR FOR SMX}*
$37.24¢18 619
#7
Clamp
$0.72¢363
#8
bolt
$4.00¢2 000
#9
GROMMET
$7.43¢3 713
#10
COLLAR
$7.43¢3 713
#11
NUT, SPRING
$1.25¢625
#12
PANEL ASSY 2 (BLACK METALLIC X) *{UR FOR SMX}*
$221.10¢110 550
#13
GRAPHIC 2 (BLACK METALLIC X) *{UR FOR SMX}*
$51.40¢25 700
#14
GRAPHIC 4 (BLACK METALLIC X) *{UR FOR SMX}*
$29.71¢14 856
#15
GRAPHIC 6 (BLACK METALLIC X) *{UR FOR SMX}*
$35.92¢17 963
#18
Clamp
$0.72¢363
#19
bolt
$4.00¢2 000
#20
GROMMET
$7.43¢3 713
#21
COLLAR
$7.43¢3 713
#22
NUT, SPRING
$1.25¢625
#23
PANEL, INNER 1
$37.55¢18 775
#24
RIVET
$8.80¢4 400
#25
RIVET
$2.31¢1 156
#26
BOLT, HEX. SOCKET BUTTON
$6.81¢3 406
#27
Collar
$8.63¢4 313
#28
PANEL, INNER 2
$27.39¢13 694
#29
DAMPER 2
$4.54¢2 269
#30
RIVET
$8.80¢4 400
#31
RIVET
$2.31¢1 156
#32
BOLT, HEX. SOCKET BUTTON
$6.81¢3 406
#33
Collar
$8.63¢4 313
#34
PANEL 3 (BLACK METALLIC X) *{UR FOR SMX}*
$215.30¢107 650
#35
bolt
$4.00¢2 000
#36
GROMMET
$7.43¢3 713
#37
COLLAR
$7.43¢3 713
#38
SCREW, TAPPING
$2.11¢1 056
#39
WASHER, PLATE
$7.29¢3 644
#40
PANEL 4 (BLACK METALLIC X) *{UR FOR SMX}*
$220.91¢110 456
#41
bolt
$4.00¢2 000
#42
GROMMET
$7.43¢3 713
#43
COLLAR
$7.43¢3 713
#44
SCREW, TAPPING
$2.11¢1 056
#45
WASHER, PLATE
$7.29¢3 644
#46
SEAT 1
$4.75¢2 375
#47
PANEL, CONSOLE 1 (BLACK METALLIC X) *{UR FOR SMX,MNM3}*
$131.28¢65 638
#48
DAMPER, MUFFLER 2
$3.50¢1 750
#49
RIVET
$6.45¢3 225
#50
SCREW, TAPPING
$2.11¢1 056
#51
WASHER, PLATE
$7.29¢3 644
#52
PANEL, CONSOLE 2 (BLACK METALLIC X) *{UR FOR SMX,MNM3}*
$131.28¢65 638
#53
DAMPER, MUFFLER 2
$3.50¢1 750
#54
RIVET
$6.45¢3 225
#55
SCREW, TAPPING
$2.11¢1 056
#56
WASHER, PLATE
$7.29¢3 644
#57
COVER 1
$9.64¢4 819
#58
SCREW, TAPPING
$2.26¢1 131
#59
COVER 2
$9.64¢4 819
#60
SCREW, TAPPING
$2.26¢1 131
#61
PANEL, INNER 3
$24.16¢12 081
#62
NUT, SPRING
$1.25¢625
#63
Grommet
$5.72¢2 863
#64
RIVET
$2.31¢1 156
#65
PROTECTOR 1 (BLACK METALLIC X) *{UR FOR SMX}*
$353.68¢176 838
#66
NUT, FLANGE
$0.94¢469
#67
SCREW, TRUSS HEAD TAPPING
$1.71¢856
#68
bolt
$4.00¢2 000
#69
BRACKET 1
$20.29¢10 144
#70
BRACKET 2
$9.04¢4 519
#71
Bolt, Flange
$7.48¢3 738
#72
GROMMET
$3.84¢1 919
#73
Collar
$5.61¢2 806
#74
PROTECTOR 2 (BLACK METALLIC X) *{UR FOR SMX}*
$273.31¢136 656
#75
SCREW, TRUSS HEAD TAPPING
$1.71¢856
#76
bolt
$4.00¢2 000
#77
BRACKET 3
$63.81¢31 906
#78
CLAMP
$1.20¢600
#79
GROMMET
$3.84¢1 919
#80
Collar
$5.61¢2 806
