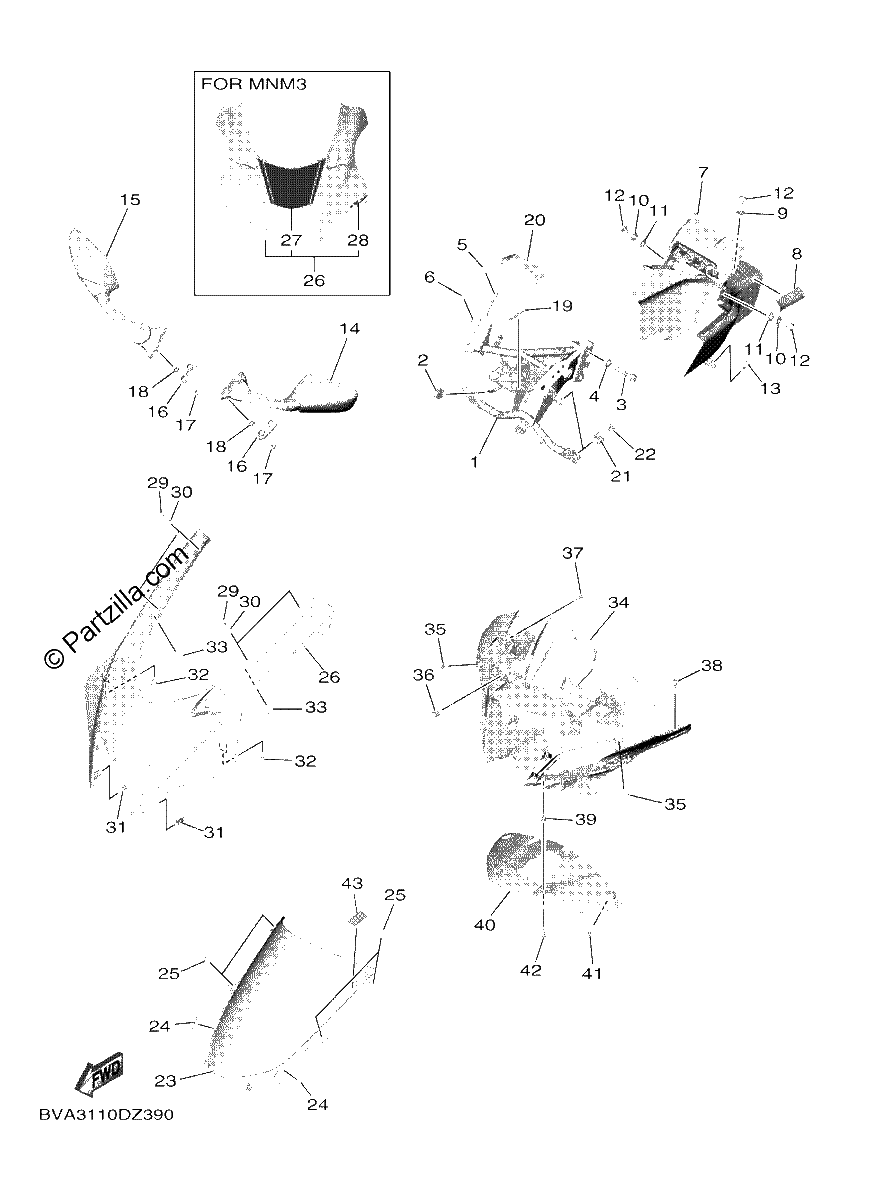

COWLING 1
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
STAY 1
$174.01¢87 003
#2
DAMPER
$13.47¢6 733
#3
BOLT, FLANGE
$2.05¢1 023
#4
WASHER, plate
$4.77¢2 386
#5
HOOK 1
$3.29¢1 644
#6
DAMPER, RUBBER 1
$6.99¢3 496
#7
COVER
$36.26¢18 130
#8
SEAL 4
$8.13¢4 065
#9
COLLAR
$6.75¢3 375
#10
COLLAR
$30.81¢15 404
#11
DAMPER, LEG SHIELD
$1.29¢644
#12
BOLT, HEX. SOCKET BUTTON
$6.88¢3 439
#13
RIVET
$8.10¢4 048
#14
REAR VIEW MIRROR ASSY (LEFT)
$85.26¢42 631
#15
REAR VIEW MIRROR ASSY (RIGHT)
$85.26¢42 631
#16
PLATE, MIRROR FITTING 1
$7.04¢3 519
#17
NUT, CROWN
$4.38¢2 191
#18
COLLAR (J45)
$5.45¢2 726
#19
DAMPER 4
$2.78¢1 392
#20
BAND,BATTERY (replaces 18G-82131-00-00)
$17.58¢8 792
#21
GROMMET
$8.21¢4 105
#22
SCREW, TAPPING
$2.64¢1 322
#23
Windshield
$105.27¢52 636
#24
SEAL 1
$1.82¢909
#25
NUT
$6.23¢3 117
#26
BODY, FRONT UPPER 1 (WG) *{UR FOR MNM3}*
$693.44¢346 719
#27
GRAPHIC 17 *{FOR MNM3}*
$69.82¢34 908
#28
EMBLEM 1 *{FOR MNM3}*
$40.46¢20 228
#29
SCREW,ROUND HEAD
$3.06¢1 529
#30
WASHER, PLATE
$6.70¢3 352
#31
Clamp
$0.67¢333
#32
NUT, SPRING
$1.15¢575
#33
HOOK 1
$3.29¢1 644
#34
BODY, FRONT UPPER 2
$63.50¢31 751
#35
DAMPER
$8.26¢4 129
#36
GROMMET
$6.88¢3 439
#37
SCREW, TAPPING
$2.08¢1 041
#38
RIVET
$5.93¢2 967
#39
GROMMET
$6.88¢3 439
#40
PLATE, FRONT *{UR FOR MNM3}*
$91.77¢45 885
#41
RIVET
$5.93¢2 967
#42
SCREW, TAPPING
$2.08¢1 041
#43
LABEL, NOTICE WINDSHIELD 1
$8.21¢4 105
