CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

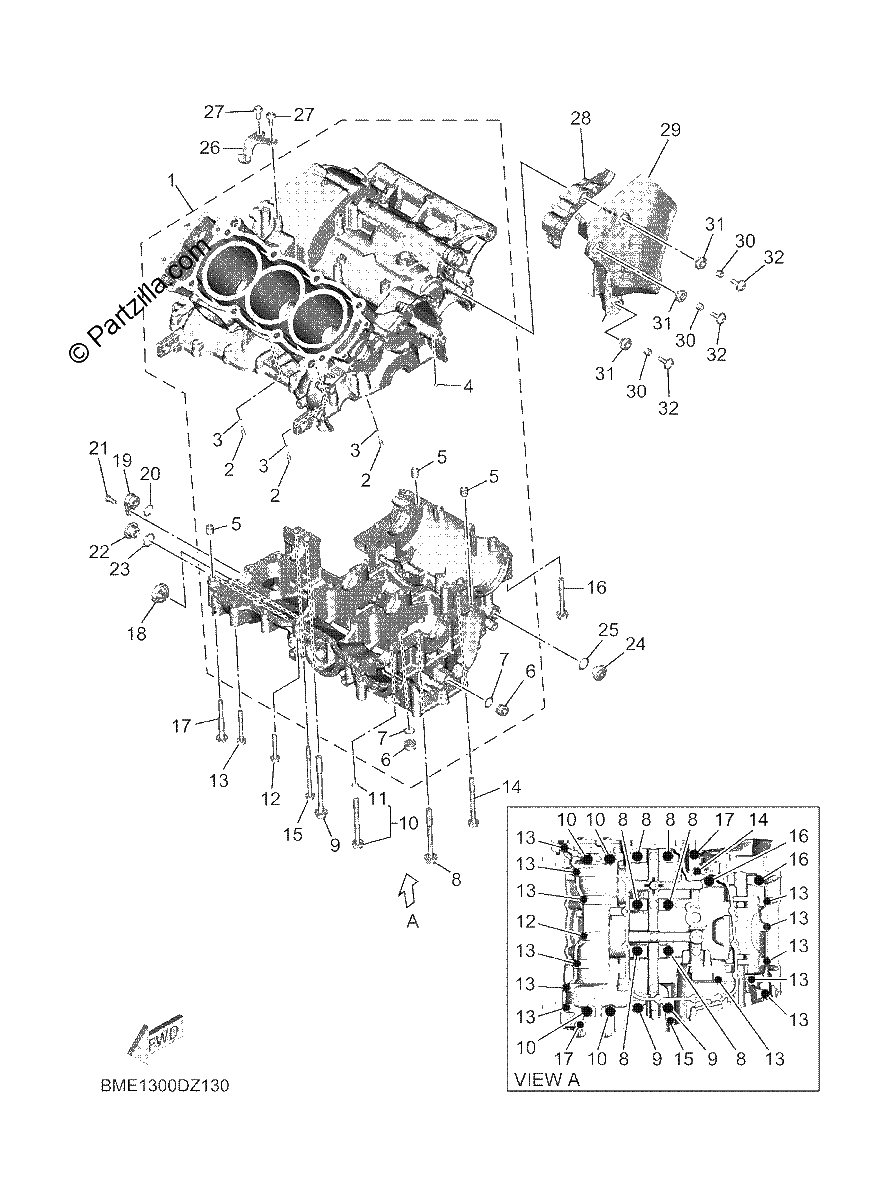

Diagrama de CRANKCASE

Repuestos

#1
B7N-15100-29-00
CRANKCASE ASSY *{MDNM9}*
$3049.79¢1 524 894
1
#2
5EB-15155-00-00
NOZZLE 3
$13.48¢6 739
1
#3
93210-04092-00
O-RING
$3.16¢1 581
1
#4
B7N-15138-00-00
. NOZZLE 1
$3.59¢1 794
1
#5
99530-10014-00
PIN, DOWEL
$2.50¢1 248
1
#6
BME-15189-00-00
PLUG
$9.61¢4 807
1
#7
93210-12790-00
O-RING
$6.30¢3 151
1
#8
90119-09013-00
BOLT, WITH WASHER
$11.73¢5 865
1
#9
90119-09010-00
BOLT, WITH WASHER
$12.60¢6 302
1
#10
23P-15156-00-00
BOLT, CRANKCASE JOURNAL
$10.43¢5 215
1
#11
93210-07540-00
O-RING
$6.32¢3 162
1
#12
95812-06040-00
BOLT, FLANGE
$4.98¢2 490
1
#13
95812-06050-00
BOLT, FLANGE
$1.66¢828
1
#14
95812-06065-00
BOLT, FLANGE
$5.65¢2 823
1
#15
90105-06202-00
BOLT, FLANGE
$1.79¢897
1
#16
95812-08060-00
BOLT, FLANGE
$3.58¢1 788
1
#17
90109-06100-00
BOLT
$8.34¢4 169
1
#18
2H7-15361-00-00
GAUGE, LEVEL
$94.59¢47 294
1
#19
2CR-15319-02-00
JOINT
$31.50¢15 749
1
#20
93210-13657-00
O-RING
$6.43¢3 214
1
#21
90149-06068-00
SCREW
$3.67¢1 834
1
#22
36Y-15189-00-00
PLUG
$13.19¢6 595
1
#23
93210-16325-00
O-RING
$6.43¢3 214
1
#24
90340-14011-00
PLUG, STRAIGHT SCREW
$21.61¢10 804
1
#25
93210-14369-00
O-Ring
$6.36¢3 180
1
#26
B7N-15441-00-00
HOLDER, CLUTCH CABLE
$7.77¢3 887
1
#27
90110-06431-00
BOLT, HEXAGON SOCKET HEAD
$2.84¢1 420
1
#28
B7N-15377-00-00
GUIDE, INLET
$24.31¢12 156
1
#29
BME-15418-00-00
COVER, CHAIN CASE
$13.52¢6 762
1
#30
90387-06286-00
COLLAR
$1.79¢897
1
#31
90480-13018-00
GROMMET
$6.83¢3 415
1
#32
90111-06188-00
BOLT,HEX. SOCKET BUTTON
$4.46¢2 231
1
