FRONT MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

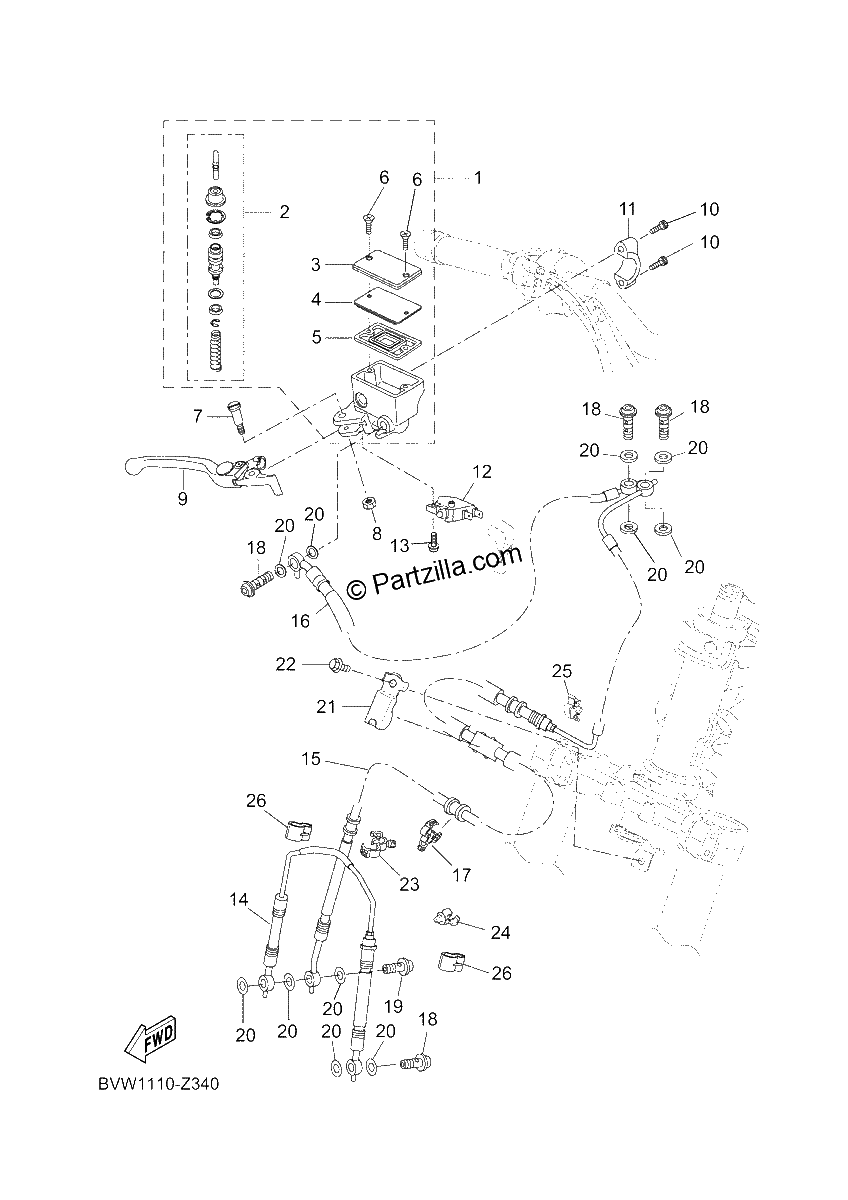

Diagrama de FRONT MASTER CYLINDER

Repuestos

#1
2B0-2580A-00-00
MASTER CYLINDER SUB ASSY 2
$183.39¢91 694
1
#2
2D1-25807-00-00
CYLINDER KIT, MASTER
$74.63¢37 313
1
#3
5VS-25852-00-00
CAP, RESERVOIR
$26.44¢13 219
1
#4
5VS-25855-00-00
BUSH, DIAPHRAGM
$17.01¢8 506
1
#5
20S-25854-00-00
DIAPHRAGM, RESERVOIR
$26.89¢13 444
1
#6
5VS-2589H-00-00
SCREW
$4.04¢2 019
1
#7
5VS-2589F-00-00
BOLT, LEVER
$14.65¢7 325
1
#8
95617-06100-00
NUT,U (replaces 95602-06100-00)
$2.86¢1 431
1
#9
BNW-83922-00-00
LEVER 2
$103.31¢51 656
1
#10
5VS-26332-00-00
BOLT
$4.68¢2 338
1
#11
5VS-25867-00-00
BRACKET, MASTER CYLINDER
$37.81¢18 906
1
#12
1HP-83980-03-00
FRONT STOP SWITCH ASSY
$36.71¢18 356
1
#13
97602-04312-00
SCREW, PAN HEAD WITH WASHER
No Disponible
1
#14
BW3-25872-01-00
HOSE, BRAKE 1
$152.44¢76 219
1
#15
BW3-25873-11-00
HOSE, BRAKE 2
$147.40¢73 700
1
#16
BW3-25874-01-00
HOSE, BRAKE 3
$64.90¢32 450
1
#17
90464-14013-00
CLAMP
$3.50¢1 750
1
#18
90401-10172-00
BOLT, UNION
$4.41¢2 206
1
#19
90401-10042-00
BOLT, UNION
$18.96¢9 481
1
#20
90430-10005-00
GASKET
$8.39¢4 194
1
#21
BW3-25876-10-00
HOLDER, BRAKE HOSE 2
$11.15¢5 575
1
#22
92017-06014-00
BOLT, BUTTON HEAD
$3.33¢1 663
1
#23
90464-18002-00
CLAMP
$8.25¢4 125
1
#24
90464-08012-00
CLAMP
$3.49¢1 744
1
#25
90464-48174-00
CLAMP
$3.24¢1 619
1
#26
90464-10233-00
CLAMP
$7.56¢3 781
1
