FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

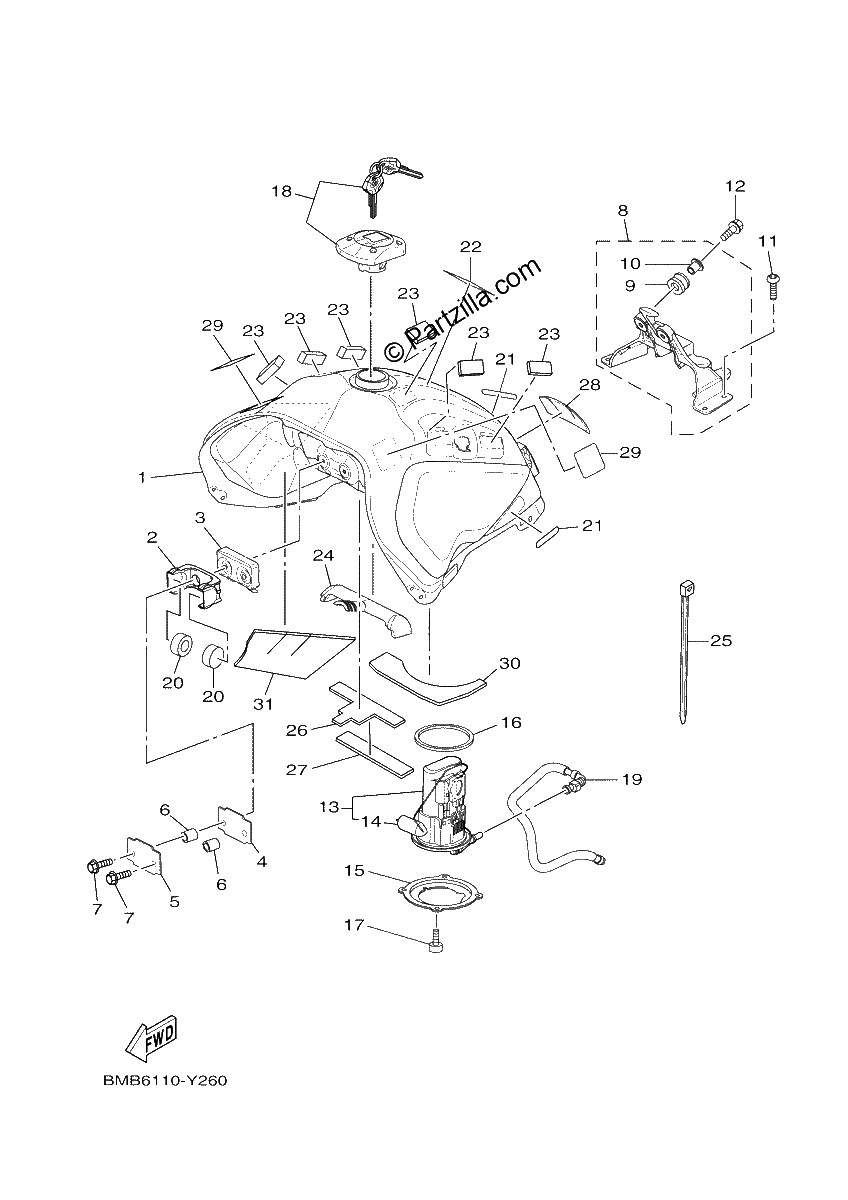

Diagrama de FUEL TANK

Repuestos

#1
BW3-24110-02-P1
FUEL TANK COMP. *{MDNM6}*
$1036.24¢518 119
1
#2
BW3-2412Y-00-00
BRACKET, TANK FITTING
$23.01¢11 506
1
#3
BW3-24181-00-00
DAMPER, LOCATING 1
$13.61¢6 806
1
#4
BW3-24182-00-00
DAMPER, LOCATING 2
$7.72¢3 863
1
#5
BW3-24186-00-00
WASHER, SPECIAL
$4.24¢2 119
1
#6
90387-06553-00
Collar
$8.49¢4 244
1
#7
95812-06025-00
BOLT, FLANGE
$0.78¢388
1
#8
BW3-24105-01-00
TANK BRACKET ASSY 2
$92.91¢46 456
1
#9
90480-18018-00
. .GROMMET
$3.94¢1 969
1
#10
90387-06136-00
COLLAR
$6.76¢3 381
1
#11
90111-06051-00
BOLT, HEX. SOCKET BUTTON
$5.15¢2 575
1
#12
95812-06025-00
BOLT, FLANGE
$0.78¢388
1
#13
BW3-13907-10-00
FUEL PUMP COMP.
$423.69¢211 844
1
#14
BW3-85752-10-00
SENDER
$105.80¢52 900
1
#15
BW3-24491-00-00
BRACKET, FUEL PUMP
$17.88¢8 938
1
#16
1RC-24486-00-00
O-RING
$29.22¢14 612
1
#17
91312-05010-00
BOLT
$5.86¢2 931
1
#18
BW3-24602-00-00
CAP ASSY
$264.80¢132 400
1
#19
BW3-13971-01-00
PIPE, FUEL 1
$144.79¢72 394
1
#20
3TB-24181-00-00
DAMPER,LOCATING 1
$14.65¢7 325
1
#21
BW3-2411G-00-00
HOOK, SIDE COVER 1
$4.96¢2 481
1
#22
5UM-21717-E0-00
DAMPER
$5.88¢2 938
1
#23
90520-05025-00
DAMPER, PLATE
$1.33¢663
1
#24
BW3-24184-00-00
DAMPER, LOCATING 4
$36.15¢18 075
1
#25
90464-65001-00
CLAMP
$5.99¢2 994
1
#26
BW3-24595-00-00
PROTECTOR
$33.09¢16 544
1
#27
BW3-24595-10-00
PROTECTOR
$14.00¢7 000
1
#28
BW3-24141-00-00
PROTECTOR, FUEL TANK
$11.47¢5 738
1
#29
3FY-21575-01-00
SEAL 1
$11.03¢5 513
1
#30
BEH-24141-00-00
PROTECTOR, FUEL TANK
$13.13¢6 563
1
#31
BEH-24141-10-00
PROTECTOR, FUEL TANK
$29.67¢14 837
1
