RADIATOR HOSE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

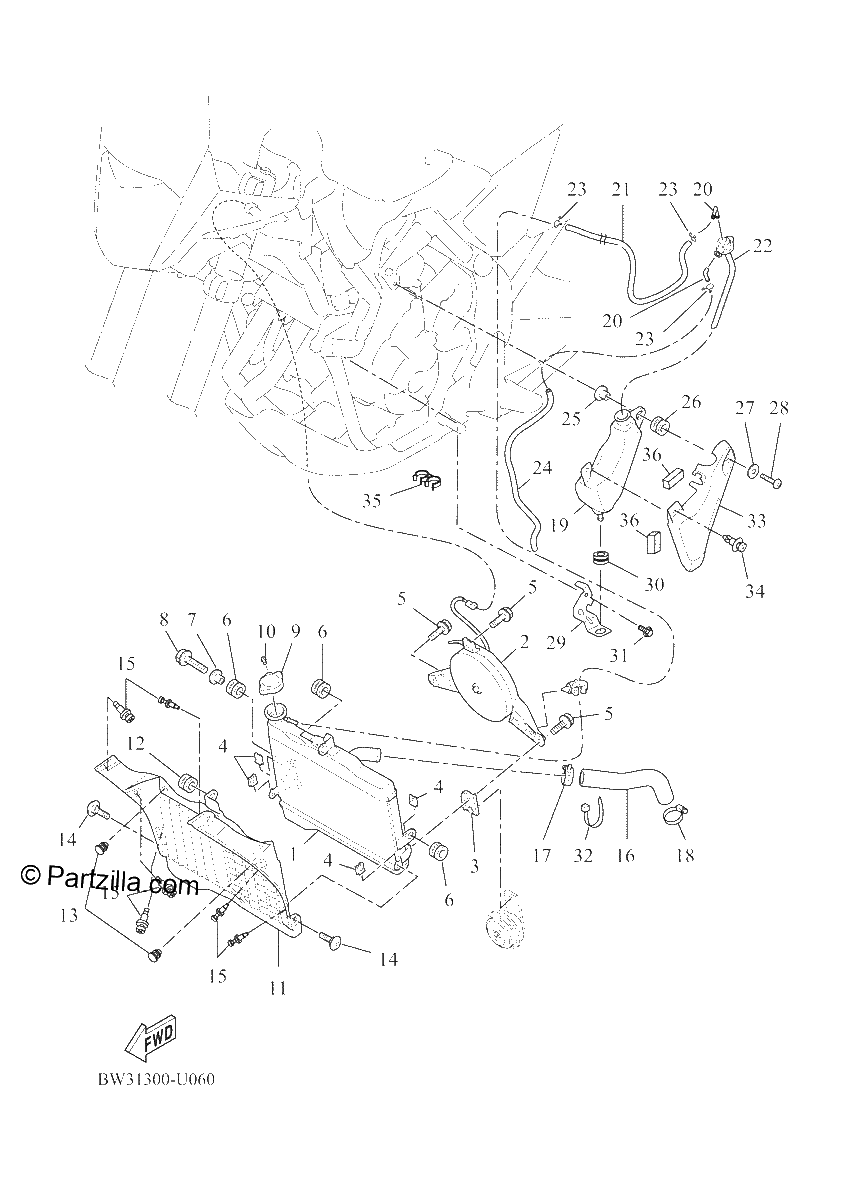

Diagrama de RADIATOR HOSE

Repuestos

#1
BW3-12461-00-00
RADIATOR COMP
$319.04¢159 519
1
#2
BW3-12405-00-00
BLOWER ASSY
$318.85¢159 425
1
#3
BW3-21343-00-00
BRACKET, HORN
$16.95¢8 475
1
#4
1WS-12671-00-00
NUT 1
$3.57¢1 787
1
#5
2S3-12675-00-00
BOLT, BLOWER HOLDING
$7.86¢3 931
1
#6
90480-15363-00
GROMMET
$7.34¢3 669
1
#7
90387-07391-00
COLLAR
$9.22¢4 613
1
#8
95802-06025-00
BOLT, FLANGE
$0.30¢150
1
#9
B67-12462-10-00
Cap, Radiator
$51.90¢25 950
1
#10
91317-03006-00
bolt
$8.79¢4 394
1
#11
BMB-12498-00-00
PROTECTOR
$78.45¢39 225
1
#12
90480-15363-00
GROMMET
$7.34¢3 669
1
#13
90338-07043-00
PLUG
$6.55¢3 275
1
#14
90109-06320-00
bolt
$8.06¢4 031
1
#15
90269-08010-00
RIVET
$3.21¢1 606
1
#16
BW3-12578-00-00
HOSE 3
$13.61¢6 806
1
#17
90467-290A0-00
CLIP
$17.49¢8 744
1
#18
90450-35001-00
HOSE CLAMP ASSY
$6.26¢3 131
1
#19
BMB-21871-00-00
TANK, RECOVERY
$79.49¢39 744
1
#20
26H-21828-00-00
ELBOW
$26.14¢13 069
1
#21
90445-08X13-00
HOSE
$7.97¢3 988
1
#22
2C0-21875-00-00
CAP
$17.01¢8 506
1
#23
90467-08075-00
CLIP
$7.34¢3 669
1
#24
90445-08X12-00
HOSE
$5.47¢2 738
1
#25
90387-06236-00
COLLAR
$7.71¢3 856
1
#26
90480-18411-00
GROMMET
$10.64¢5 319
1
#27
90201-06029-00
WASHER, PLATE
$5.54¢2 769
1
#28
90111-06068-00
BOLT
$3.06¢1 531
1
#29
BW3-21873-00-00
BRACKET, RECOVERY TANK
$36.97¢18 487
1
#30
90480-01559-00
Grommet
$5.72¢2 863
1
#31
90110-06341-00
BOLT, HEXAGON SOCKET HEAD
$3.16¢1 581
1
#32
90464-07M40-00
CLAMP
$16.57¢8 288
1
#33
BMB-2172W-00-00
COVER
$35.81¢17 906
1
#34
90269-08010-00
RIVET
$3.21¢1 606
1
#35
90464-06008-00
CLAMP
$1.94¢969
1
#36
90520-05018-00
DAMPER, PLATE
$0.88¢438
1
