SEAT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

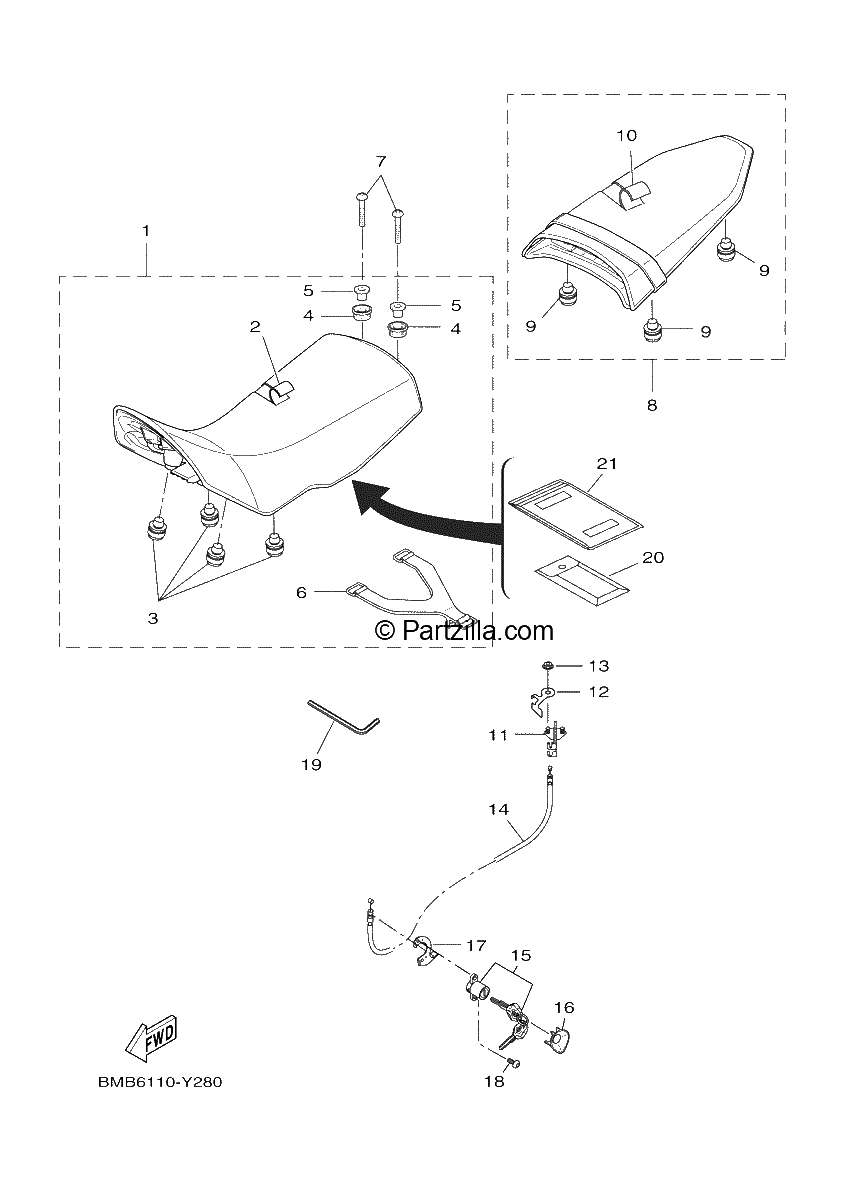

Diagrama de SEAT

Repuestos

#1
BW3-F4710-00-00
SINGLE SEAT ASSY
$356.91¢178 456
1
#2
BW3-F470F-00-00
. .SEAT COVER COMP.
$205.38¢102 688
1
#3
1SD-F4723-00-00
. .DAMPER, SEAT
$24.60¢12 300
1
#4
90480-14X03-00
. .GROMMET
$17.05¢8 525
1
#5
90387-07X09-00
. .COLLAR
$12.02¢6 012
1
#6
11D-F483H-00-00
. .BAND
$34.77¢17 388
1
#7
92012-06025-00
BOLT, BUTTON HEAD
$3.44¢1 719
1
#8
BW3-F4750-00-00
TANDEM SEAT ASSY
$276.14¢138 069
1
#9
1SD-F4723-00-00
. .DAMPER, SEAT
$24.60¢12 300
1
#10
BW3-F470H-00-00
. .SEAT COVER COMP. ,2
$139.38¢69 688
1
#11
1WD-F4780-00-00
SEAT LOCK ASSY
$24.44¢12 219
1
#12
BAU-2479K-00-00
PLATE, LOCK
$5.99¢2 994
1
#13
4XV-8182A-00-00
NUT
$7.48¢3 738
1
#14
BVW-2478E-00-00
CABLE, SEAT LOCK
$19.81¢9 906
1
#15
2TV-W2470-00-00
SEAT LOCK ASSY
$88.70¢44 350
1
#16
BW3-F4796-00-00
COVER
$40.56¢20 281
1
#17
23P-2117K-01-00
STAY, LOCK
$7.40¢3 700
1
#18
90149-06018-00
SCREW
$6.39¢3 194
1
#19
23P-28164-00-00
WRENCH, HEXAGON 8
$3.25¢1 625
1
#20
BAG-F8100-00-00
TOOL KIT
$430.96¢215 481
1
#21
4KG-28186-11-00
POUCH
$8.49¢4 244
1
