TAILLIGHT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

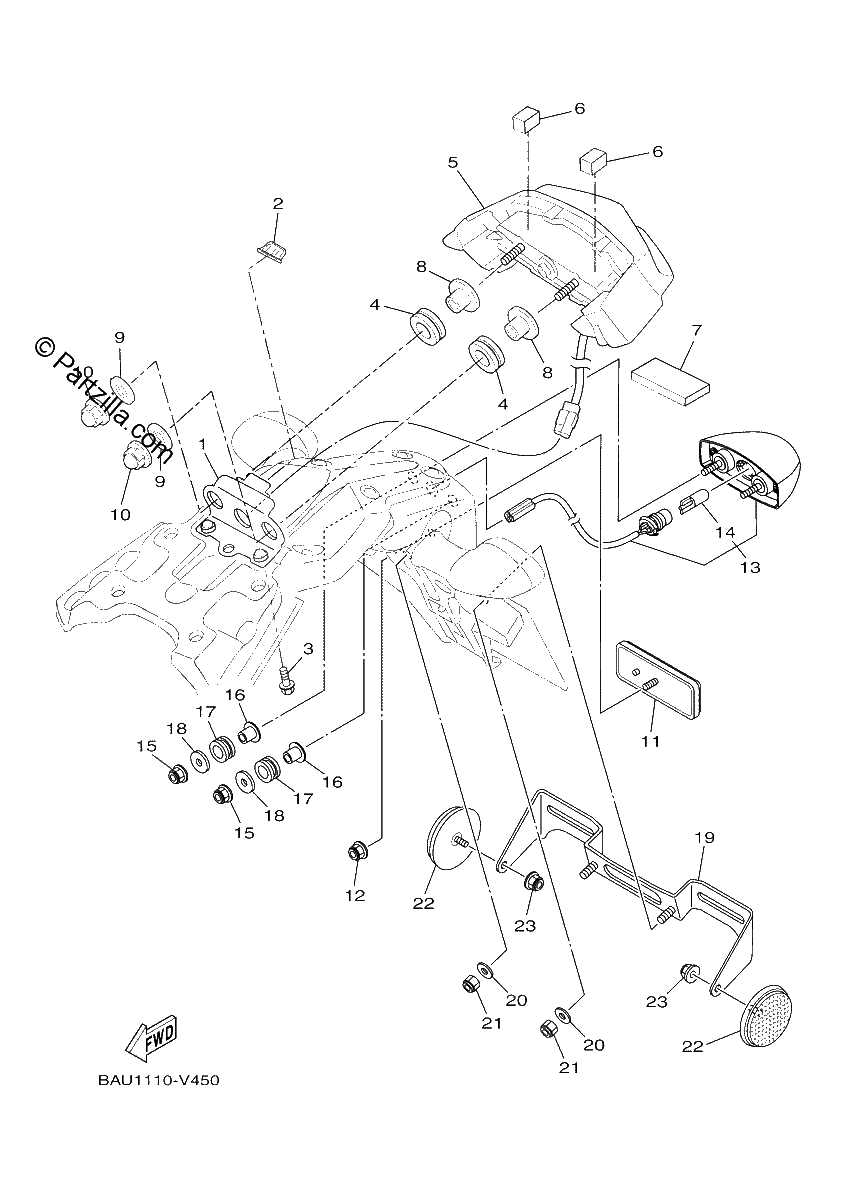

Diagrama de TAILLIGHT

Repuestos

#1
BMB-2117E-00-00
BRACKET, TAILLIGHT
$73.86¢36 931
1
#2
2N4-21717-00-00
Damper
$7.60¢3 800
1
#3
90149-05042-00
SCREW
$3.33¢1 663
1
#4
90480-18276-00
GROMMET
$7.94¢3 969
1
#5
BW3-H4700-00-00
TAILLIGHT ASSY
$228.86¢114 431
1
#6
90520-15020-00
DAMPER, PLATE
$2.20¢1 100
1
#7
90520-07004-00
DAMPER, PLATE
$2.10¢1 050
1
#8
90387-06150-00
COLLAR
$6.14¢3 069
1
#9
90201-06023-00
WASHER, PLATE | FOR CALIFORNIA
$4.49¢2 244
1
#10
90176-06008-00
NUT, CROWN
$2.73¢1 363
1
#11
3Y6-85130-02-00
Rear Reflector
$27.07¢13 538
1
#12
95602-05200-00
NUT, SELF-LOCKING
$8.16¢4 081
1
#13
BEE-H4740-00-00
LICENSE LIGHT ASSY
$69.01¢34 506
1
#14
1TP-84347-00-00
BULB (12V-5W)
$7.08¢3 538
1
#15
95602-05200-00
NUT, SELF-LOCKING
$8.16¢4 081
1
#16
90387-05042-00
COLLAR
$5.69¢2 844
1
#17
90480-12023-00
GROMMET
$7.43¢3 713
1
#18
90201-054K4-00
WASHER, PLATE
$8.31¢4 156
1
#19
1RC-84751-10-00
BRACKET, LICENSE
$47.46¢23 731
1
#20
92902-06200-00
WASHER
$0.96¢481
1
#21
95602-06100-00
NUT, SELF-LOCKING
$2.86¢1 431
1
#22
449-85131-02-00
REFLECTOR, REAR 1
$30.67¢15 337
1
#23
95702-05500-00
NUT,FLANGE (SILVER)
$0.91¢456
1
