REAR MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

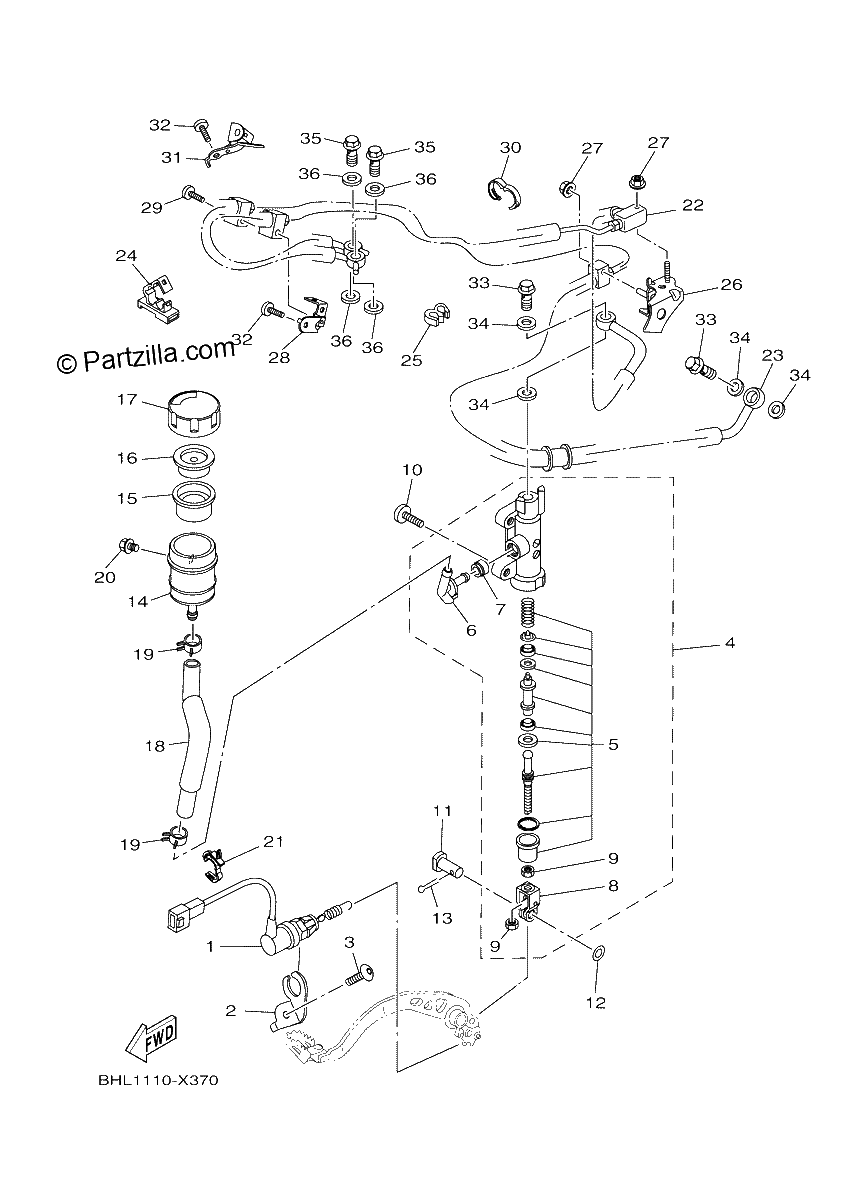

Diagrama de REAR MASTER CYLINDER

Repuestos

#1
BW3-82530-01-00
STOP SWITCH ASSY
$46.05¢23 025
1
#2
5PS-2144G-00-00
STAY, STOP SWITCH
$5.02¢2 512
1
#3
92017-06012-00
BOLT, BUTTON HEAD
$2.44¢1 219
1
#4
4P5-2583V-00-00
REAR MASTER CYLINDER ASSY.
$155.19¢77 594
1
#5
5VX-W0042-51-00
CYLINDER KIT, MASTER
$100.65¢50 325
1
#6
2D1-2582A-00-00
JOINT
$121.80¢60 900
1
#7
4BP-2585F-01-00
O-RING
$11.39¢5 694
1
#8
4BP-27222-02-00
JOINT
$32.13¢16 063
1
#9
90170-08010-00
NUT
$7.49¢3 744
1
#10
92014-08025-00
BOLT, BUTTON HEAD
$6.99¢3 494
1
#11
90240-08005-00
PIN, CLEVIS
$7.34¢3 669
1
#12
90201-08070-00
WASHER, plate
$7.67¢3 838
1
#13
91401-20012-00
PIN, COTTER
$2.20¢1 100
1
#14
2D1-25894-00-00
TANK, RESERVOIR
$7.88¢3 938
1
#15
5SL-25854-00-00
DIAPHRAGM, RESERVOIR
$21.74¢10 869
1
#16
5SL-25855-00-00
BUSH, DIAPHRAGM
$8.03¢4 013
1
#17
5SL-25852-00-00
CAP, RESERVOIR
$28.44¢14 219
1
#18
BW3-25895-00-00
HOSE, RESERVOIR
$5.69¢2 844
1
#19
90467-120A3-00
CLIP
$6.99¢3 494
1
#20
90119-05021-00
BOLT, WITH WASHER
$4.44¢2 219
1
#21
90464-08012-00
CLAMP
$3.49¢1 744
1
#22
BW3-2584D-02-00
HOSE, BRAKE
$196.42¢98 212
1
#23
BW3-2584E-02-00
BRAKE HOSE ASSY 5
$218.82¢109 413
1
#24
90464-07014-00
CLAMP
$2.75¢1 375
1
#25
90464-04001-00
CLAMP
$6.42¢3 213
1
#26
BW3-2588F-00-00
HOLDER, BRAKE HOSE 5
$16.85¢8 425
1
#27
95707-06500-00
NUT, FLANGE
$0.94¢469
1
#28
1XB-2175T-00-00
BRACKET 1
$14.28¢7 138
1
#29
92012-06040-00
BOLT, BUTTON HEAD
$3.96¢1 981
1
#30
90464-18004-00
Clamp
$5.21¢2 606
1
#31
BAU-2175U-00-00
BRACKET 2
$17.40¢8 700
1
#32
92017-06012-00
BOLT, BUTTON HEAD
$2.44¢1 219
1
#33
90401-10020-00
BOLT, UNION
$9.86¢4 931
1
#34
90430-10005-00
GASKET
$8.39¢4 194
1
#35
90401-10172-00
BOLT, UNION
$4.41¢2 206
1
#36
90430-10005-00
GASKET
$8.39¢4 194
1
