REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

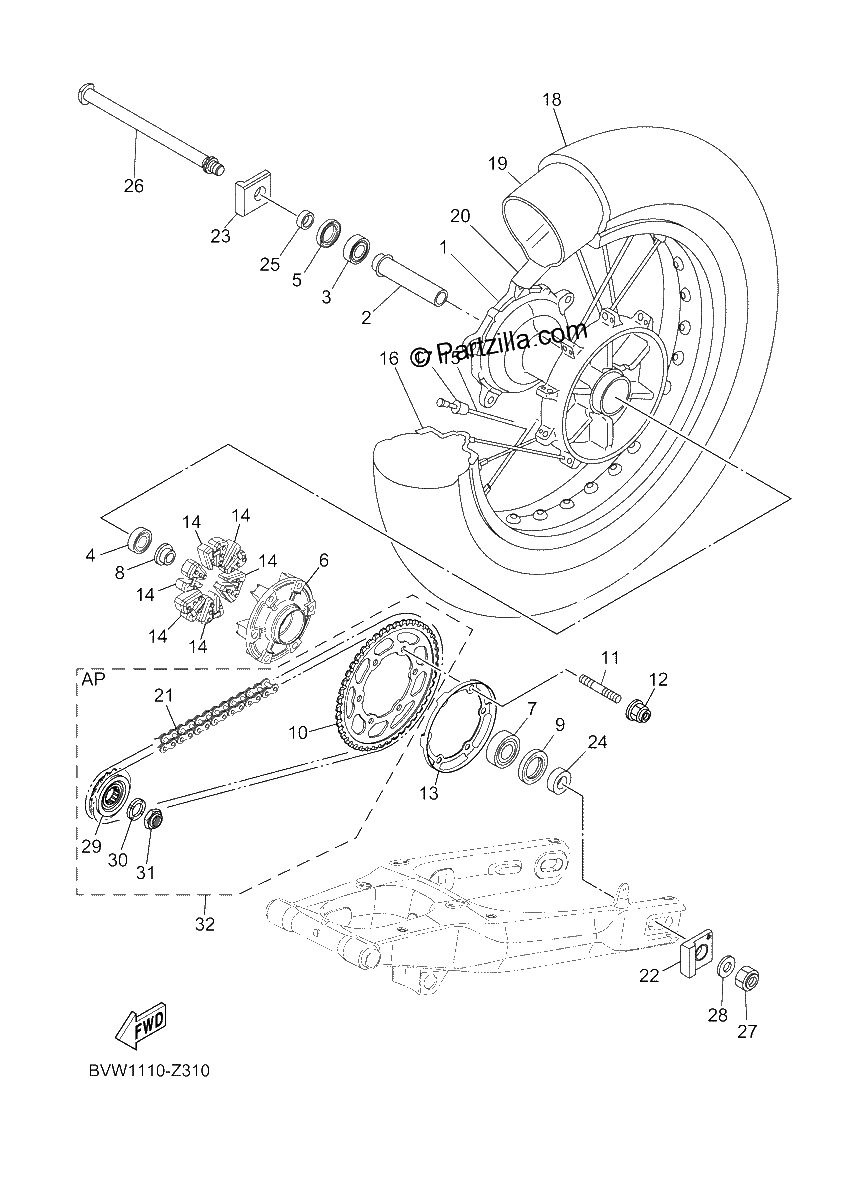

Diagrama de REAR WHEEL

Repuestos

#1
BW3-25311-00-00
HUB, REAR
$737.14¢368 569
1
#2
BW3-25317-00-00
SPACER, BEARING
$19.79¢9 896
1
#3
93306-20480-00
BEARING
$42.62¢21 310
1
#4
93306-00416-00
BEARING (B6004RS)
$40.23¢20 114
1
#5
93102-28022-00
OIL SEAL
$13.85¢6 923
1
#6
5JJ-25366-00-00
CLUTCH, HUB
$569.35¢284 677
1
#7
93306-205B5-00
BEARING
$38.81¢19 406
1
#8
1RC-25383-00-00
COLLAR, WHEEL
$30.81¢15 404
1
#9
93106-40013-00
OIL SEAL
$13.21¢6 607
1
#10
BW3-F5446-00-00
SPROCKET, DRIVEN (46T)
$164.69¢82 346
1
#11
90116-10048-00
BOLT, STUD
$25.00¢12 500
1
#12
90185-10011-00
NUT, SELF-LOCKING
$4.30¢2 151
1
#13
1RC-2537W-01-00
BRACKET 1 (replaces 1RC-2537W-00-00)
$17.69¢8 844
1
#14
5SL-25364-00-00
DAMPER
$40.01¢20 004
1
#15
BW3-F5304-00-00
SPOKE SET, REAR
$236.26¢118 128
1
#16
94440-18002-00
RIM
$798.03¢399 016
1
#17
BW3-25398-00-00
BALANCER, WHEEL
$6.90¢3 450
1
#20
94315-18X00-00
BAND, RIM (18-19)
$68.90¢34 448
1
#21
94582-56122-00
CHAIN (DID525VZ2 122LE)
$405.32¢202 659
1
#22
3SP-25388-00-00
PULLER, CHAIN 1
$56.00¢28 002
1
#23
1RC-25389-00-00
PULLER, CHAIN 2
$75.89¢37 944
1
#24
90387-20036-00
COLLAR
$21.64¢10 821
1
#25
90387-20035-00
COLLAR
$14.31¢7 153
1
#26
4FN-22141-00-00
SHAFT, PIVOT
$95.70¢47 851
1
#27
90185-18009-00
NUT, SELF-LOCKING
$17.39¢8 694
1
#28
90201-18013-00
WASHER, PLATE
$6.80¢3 398
1
#29
BW3-17460-00-00
SPROCKET, DRIVE (15T)
$72.85¢36 426
1
#30
90208-22002-00
WASHER, CONICAL SPRING
$18.39¢9 194
1
#31
90179-22018-00
NUT
$26.16¢13 081
1
#32
BHL-W001A-00-00
CHAIN & SPROCKET KIT *{AP}*
$643.99¢321 994
1
