SEAT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

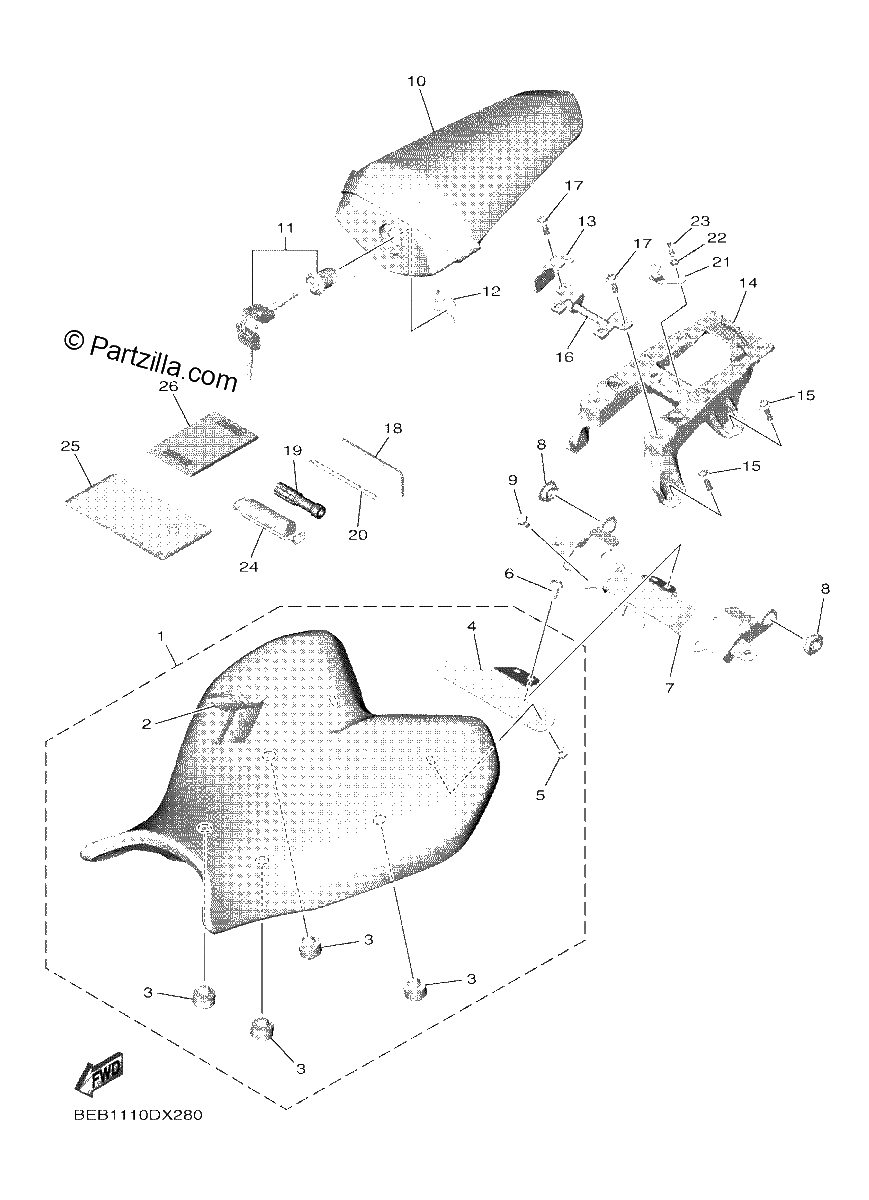

Diagrama de SEAT

Repuestos

#1
BEB-24710-00-00
SINGLE SEAT ASSY
$172.11¢86 056
1
#2
BEB-2470F-00-00
SEAT COVER COMP
$84.16¢42 081
1
#3
278-27114-00-00
STOPPER, MAIN STAND
$10.09¢5 044
1
#4
BEB-24716-00-00
STAY, REAR
$19.85¢9 925
1
#5
95602-06200-00
NUT, SELF-LOCKING
$2.80¢1 400
1
#6
92017-08014-00
BOLT,BUTTON (replaces 90111-08072-00)
$7.94¢3 969
1
#7
BEB-21131-00-00
BRACKET
$79.44¢39 719
1
#8
90480-01558-00
Grommet
$4.69¢2 344
1
#9
95D32-06010-00
BLOT, FLANGE DEEP RECESS
$0.74¢369
1
#10
BEB-24750-00-00
TANDEM SEAT ASSY
$129.55¢64 775
1
#11
2CR-W2470-00-00
ROTOR SET
$70.92¢35 463
1
#12
5VY-2176V-00-00
SPRING, LOCK 2
$10.67¢5 337
1
#13
BEB-24728-00-00
BRACKET, SEAT
$6.40¢3 200
1
#14
BEB-2471A-00-00
STAY, SEAT
$94.56¢47 281
1
#15
90110-06349-00
BOLT, HEXAGON SOCKET HEAD
$2.80¢1 400
1
#16
2CR-2478X-00-00
BRACKET, SEAT LOCK
$20.80¢10 400
1
#17
90110-06163-00
BOLT, HEXAGON SOCKET
$9.13¢4 563
1
#18
14B-28164-00-00
WRENCH, HEXAGON 8
$4.49¢2 244
1
#19
2H7-28151-00-00
GRIP, DRIVER
$7.08¢3 538
1
#20
137-28152-00-00
DRIVER
$4.11¢2 056
1
#21
BEB-28170-00-00
HOLDER, TOOL
$5.91¢2 956
1
#22
5SL-84753-00-00
DAMPER
$6.45¢3 225
1
#23
90269-07007-00
RIVET
$4.00¢2 000
1
#24
BEB-82131-00-00
BAND, BATTERY
$16.31¢8 156
1
#25
B5U-28100-00-00
TOOL KIT
$39.31¢19 656
1
#26
4KG-28186-11-00
POUCH
$8.49¢4 244
1
