CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

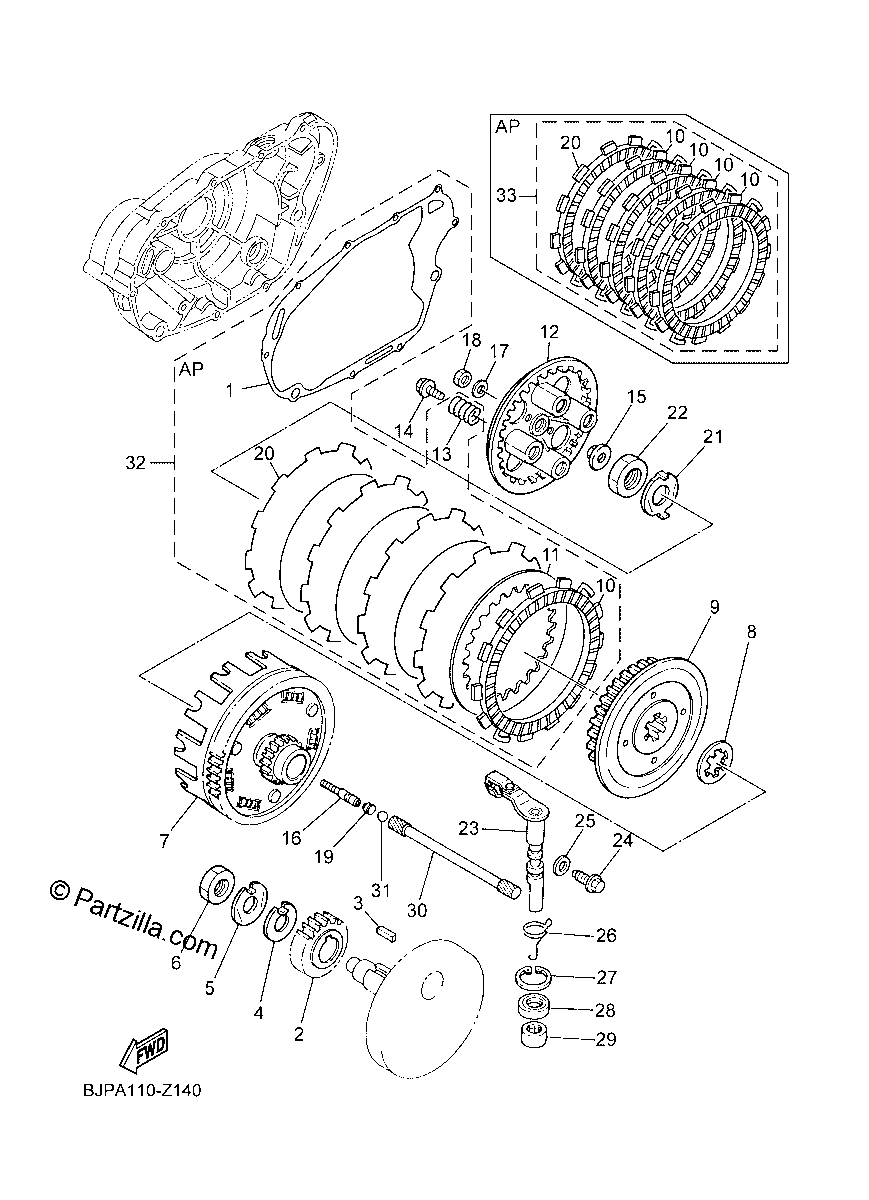

Diagrama de CLUTCH

Repuestos

#1
4RF-15461-01-00
GASKET, CRANKCASE COVER 2
$24.06¢12 031
1
#2
3Y6-16111-03-00
GEAR, PRIMARY DRIVE (23T)
$33.82¢16 912
1
#3
90282-07023-00
KEY, STRAIGHT
$9.91¢4 956
1
#4
90215-16156-00
WASHER, LOCK
$7.26¢3 631
1
#5
90215-16222-00
WASHER, LOCK
$9.60¢4 800
1
#6
90170-16256-00
NUT
$16.27¢8 137
1
#7
2UJ-16150-00-00
PRIMARY DRIVEN GEAR COMP.
$401.91¢200 956
1
#8
30X-16154-00-00
PLATE, THRUST 1
$28.15¢14 075
1
#9
30X-16371-00-00
BOSS, CLUTCH
$168.23¢84 113
1
#10
5Y1-16331-01-00
PLATE, FRICTION 2
$30.88¢15 438
1
#11
3J2-16324-10-00
PLATE, CLUTCH 1 (T=2.0)
$12.50¢6 250
1
#12
30X-16351-02-00
PLATE, PRESSURE 1
$92.06¢46 031
1
#13
90501-26148-00
SPRING, COMPRESSION
$4.63¢2 313
1
#14
90159-06016-00
SCREW, WITH WASHER
$3.34¢1 669
1
#15
1W1-16358-01-00
PLATE, PUSH
$23.89¢11 944
1
#16
4DN-16356-00-00
ROD, PUSH 1
$30.18¢15 088
1
#17
92907-06200-00
WASHER
$7.35¢3 675
1
#18
95307-06600-00
NUT
$3.21¢1 606
1
#19
3YX-1635A-00-00
SEAL, ROD PUSH
$17.65¢8 825
1
#20
31A-16321-01-00
PLATE, FRICTION
$23.89¢11 944
1
#21
90215-16320-00
WASHER, LOCK
$12.75¢6 375
1
#22
90170-16326-00
NUT
$13.11¢6 556
1
#23
2UJ-16380-00-00
PUSH LEVER ASSY
$50.03¢25 013
1
#24
90149-08067-00
SCREW,SPEC'L SHAPE
$5.41¢2 706
1
#25
90430-08119-00
GASKET
$6.91¢3 456
1
#26
90508-14433-00
SPRING, TORSION
$6.91¢3 456
1
#27
93420-28055-00
CIRCLIP,R-TYPE
$8.21¢4 106
1
#28
93102-14209-00
OIL SEAL,SD-TYPE
$11.63¢5 813
1
#29
93315-31428-00
BEARING
$38.69¢19 344
1
#30
2UJ-16357-00-00
ROD, PUSH 2
$20.78¢10 388
1
#31
93511-32017-00
BALL
$7.34¢3 669
1
#32
BJP-W001G-00-00
CLUTCH PLATE KIT
$117.95¢58 975
1
#33
BJP-W001M-00-00
FRICTION PLATE KIT
$61.35¢30 675
1
