CRANKCASE COVER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

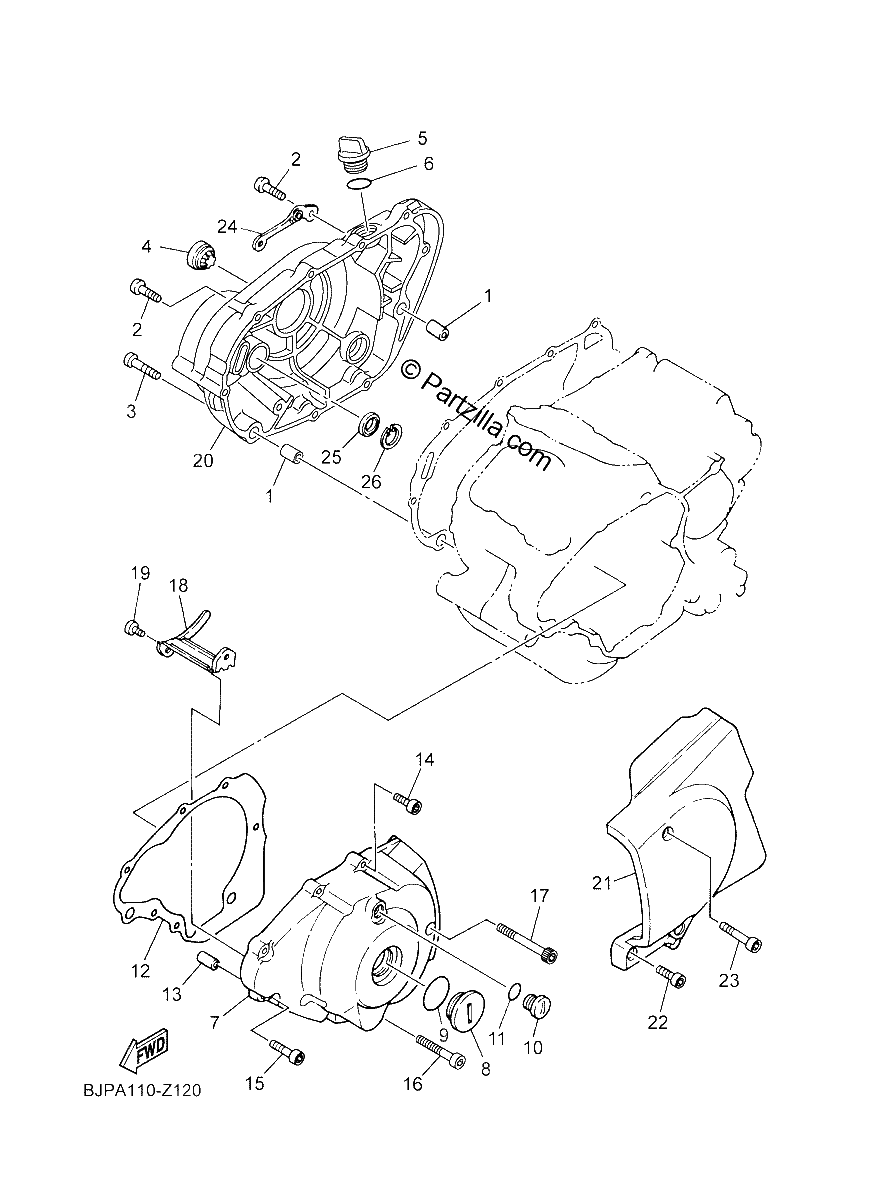

Diagrama de CRANKCASE COVER 1

Repuestos

#1
99530-12016-00
PIN, DOWEL
$4.52¢2 260
1
#2
91314-06025-00
BOLT, HEXAGON SOCKET HEAD
$7.30¢3 651
1
#3
91314-06035-00
BOLT, HEXAGON SOCKET HEAD
$6.75¢3 375
1
#4
3Y1-15361-00-00
GAUGE,LEVEL
$27.95¢13 973
1
#5
3Y1-15363-10-00
PLUG, OIL
$18.72¢9 361
1
#6
93210-19123-00
O-Ring
$7.58¢3 789
1
#7
2UJ-15411-01-00
COVER, CRANKCASE 1
$301.36¢150 679
1
#8
90340-32116-00
PLUG, STRAIGHT SCREW
$17.81¢8 907
1
#9
93210-32172-00
O-Ring
$6.32¢3 162
1
#10
90340-14068-00
PLUG, STRAIGHT SCREW
$17.24¢8 619
1
#11
93210-14369-00
O-Ring
$6.36¢3 180
1
#12
4RF-15451-01-00
GASKET, CRANKCASE COVER 1
$14.72¢7 360
1
#13
99530-12016-00
PIN, DOWEL
$4.52¢2 260
1
#14
91314-06025-00
BOLT, HEXAGON SOCKET HEAD
$7.30¢3 651
1
#15
91314-06035-00
BOLT, HEXAGON SOCKET HEAD
$6.75¢3 375
1
#16
90110-06006-00
BOLT, HEXAGON SOCKET HEAD
$6.75¢3 375
1
#17
90110-06010-00
BOLT, HEXAGON SOCKET HEAD
$7.30¢3 651
1
#18
90465-06322-00
CLAMP
$11.09¢5 543
1
#19
90110-06227-00
BOLT, HEXAGON SOCKET HEAD
$7.58¢3 789
1
#20
2UJ-15421-00-00
COVER, CRANKCASE 2
$230.16¢115 080
1
#21
2UJ-15431-02-00
COVER, CRANKCASE 3
$115.74¢57 868
1
#22
91314-06025-00
BOLT, HEXAGON SOCKET HEAD
$7.30¢3 651
1
#23
91314-06050-00
BOLT, HEXAGON SOCKET HEAD
$6.75¢3 375
1
#24
2UJ-15441-00-00
HOLDER, CLUTCH CABLE
$15.05¢7 527
1
#25
93101-14089-00
OIL SEAL
$11.52¢5 761
1
#26
99009-25500-00
CIRCLIP
$6.14¢3 070
1
