FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

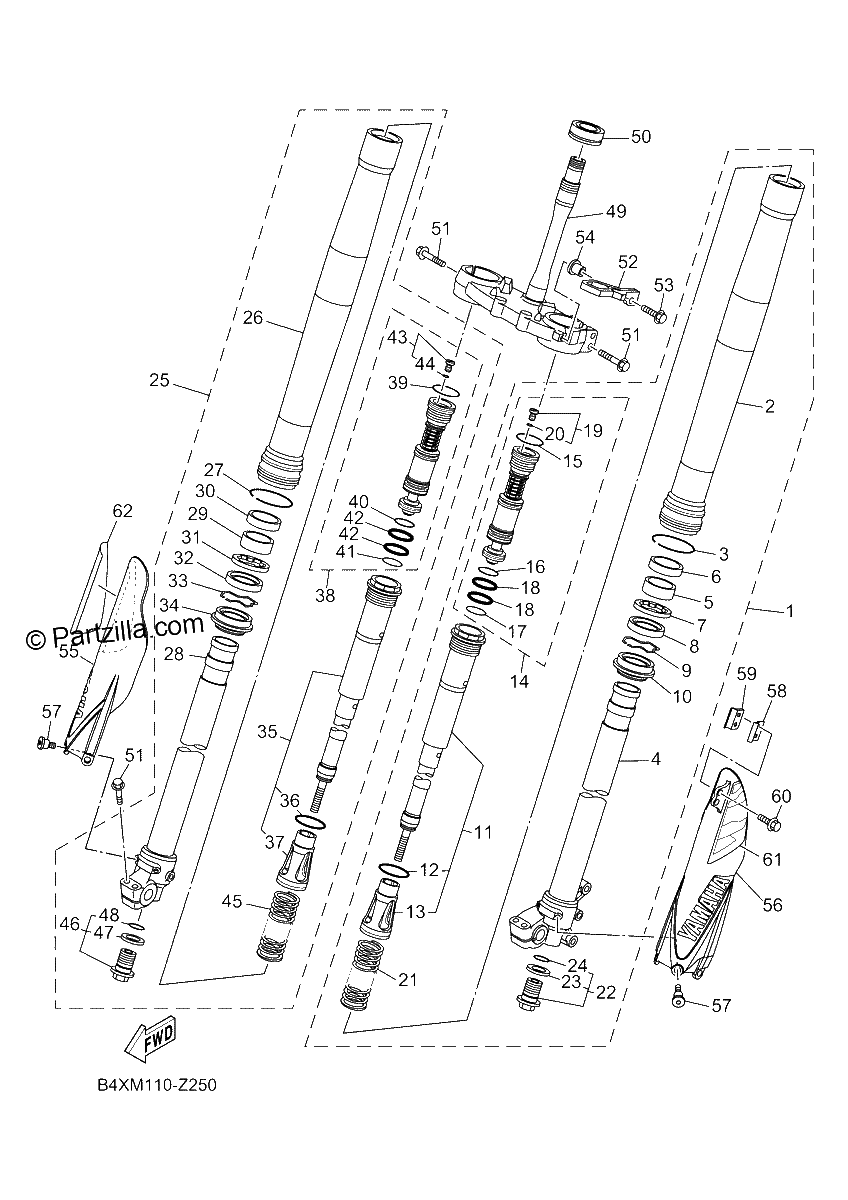

Diagrama de FRONT FORK

Repuestos

#1
BCR-23102-01-00
FRONT FORK ASSY (L.H)
$2188.44¢1 094 219
1
#2
1SS-23136-00-00
TUBE, OUTER
$736.16¢368 081
1
#3
17D-23153-00-00
RING, SNAP
$4.58¢2 289
1
#4
BCR-23120-00-00
INNER TUBE COMP2
$396.38¢198 191
1
#5
5XE-23171-L0-00
PISTON, FRONT FORK
$22.67¢11 333
1
#6
5XE-23125-L0-00
METAL, SLIDE 1
$23.02¢11 511
1
#7
5XC-23146-10-00
WASHER, OIL SEAL
$11.60¢5 802
1
#8
B29-23145-00-00
Oil Seal
$21.75¢10 873
1
#9
5XE-23153-L0-00
RING, SNAP
$7.04¢3 519
1
#10
5XE-23144-L0-00
SEAL, DUST
$21.11¢10 557
1
#11
BCR-23170-00-00
CYLINDER COMP, FRONT FORK
$396.38¢198 191
1
#12
1C3-23147-L1-00
O-RING
$3.51¢1 754
1
#13
17D-23142-00-00
SEAT, SPRING UPPER
$77.73¢38 864
1
#14
BCR-2316A-01-00
. VALVE COMP
$485.50¢242 748
1
#15
1C3-23188-L2-00
O-RING
$7.61¢3 807
1
#16
1C3-23188-N0-00
O-RING
$7.04¢3 519
1
#17
1C3-23188-P0-00
O-RING
$6.51¢3 254
1
#18
1AE-23147-01-00
O-RING
$4.80¢2 398
1
#19
1C3-23190-L1-00
AIR VALVE COMP
$21.98¢10 988
1
#20
1C3-23188-R1-00
O-RING
$3.00¢1 501
1
#21
B3J-23141-40-00
SPRING, FRONT FORK
$124.23¢62 117
1
#22
5XC-23111-01-00
BOLT, CAP
$75.81¢37 904
1
#23
2HH-23158-L0-00
GASKET
$10.43¢5 215
1
#24
276-23114-02-00
GASKET
$3.68¢1 840
1
#25
BCR-23103-01-00
FRONT FORK ASSY (R.H)
$1337.44¢668 719
1
#26
1SS-23136-00-00
TUBE, OUTER
$736.16¢368 081
1
#27
17D-23153-00-00
RING, SNAP
$4.58¢2 289
1
#28
BCR-23110-00-00
INNER TUBE COMP1
$396.38¢198 191
1
#29
5XE-23171-L0-00
PISTON, FRONT FORK
$22.67¢11 333
1
#30
5XE-23125-L0-00
METAL, SLIDE 1
$23.02¢11 511
1
#31
5XC-23146-10-00
WASHER, OIL SEAL
$11.60¢5 802
1
#32
B29-23145-00-00
Oil Seal
$21.75¢10 873
1
#33
5XE-23153-L0-00
RING, SNAP
$7.04¢3 519
1
#34
5XE-23144-L0-00
SEAL, DUST
$21.11¢10 557
1
#35
BCR-23170-00-00
CYLINDER COMP, FRONT FORK
$396.38¢198 191
1
#36
1C3-23147-L1-00
O-RING
$3.51¢1 754
1
#37
17D-23142-00-00
SEAT, SPRING UPPER
$77.73¢38 864
1
#38
BCR-2316A-01-00
. VALVE COMP
$485.50¢242 748
1
#39
1C3-23188-L2-00
O-RING
$7.61¢3 807
1
#40
1C3-23188-N0-00
O-RING
$7.04¢3 519
1
#41
1C3-23188-P0-00
O-RING
$6.51¢3 254
1
#42
1AE-23147-01-00
O-RING
$4.80¢2 398
1
#43
1C3-23190-L1-00
AIR VALVE COMP
$21.98¢10 988
1
#44
1C3-23188-R1-00
O-RING
$3.00¢1 501
1
#45
B3J-23141-40-00
SPRING, FRONT FORK
$124.23¢62 117
1
#46
5XC-23111-01-00
BOLT, CAP
$75.81¢37 904
1
#47
2HH-23158-L0-00
GASKET
$10.43¢5 215
1
#48
276-23114-02-00
GASKET
$3.68¢1 840
1
#49
1SS-23340-10-00
UNDER BRACKET COMP.
$704.94¢352 469
1
#50
93332-00081-00
BEARING
$55.67¢27 836
1
#51
95E34-08035-00
BOLT, FLANGE DEEP RECESS
$2.70¢1 351
1
#52
BF1-23389-00-00
GUIDE, CABLE
$7.30¢3 651
1
#53
95E32-06016-00
BOLT, FLANGE DEEP RECESS
$0.75¢374
1
#54
90387-06104-00
Collar
$1.45¢724
1
#55
17D-2315J-50-00
PROTECTOR 2
$15.21¢7 607
1
#56
17D-2315H-50-00
PROTECTOR 1
$15.21¢7 607
1
#57
90109-06232-00
BOLT
$3.61¢1 805
1
#58
17D-23466-00-00
CLAMP
$18.14¢9 068
1
#59
17D-23467-00-00
CLAMP
$24.83¢12 414
1
#60
90105-06170-00
BOLT, FLANGE
$4.65¢2 323
1
#61
BCR-231G1-00-00
GRAPHIC 1
$21.75¢10 873
1
#62
BCR-231G2-00-00
GRAPHIC 2
$21.75¢10 873
1
