4 PISTON REBUILT KIT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

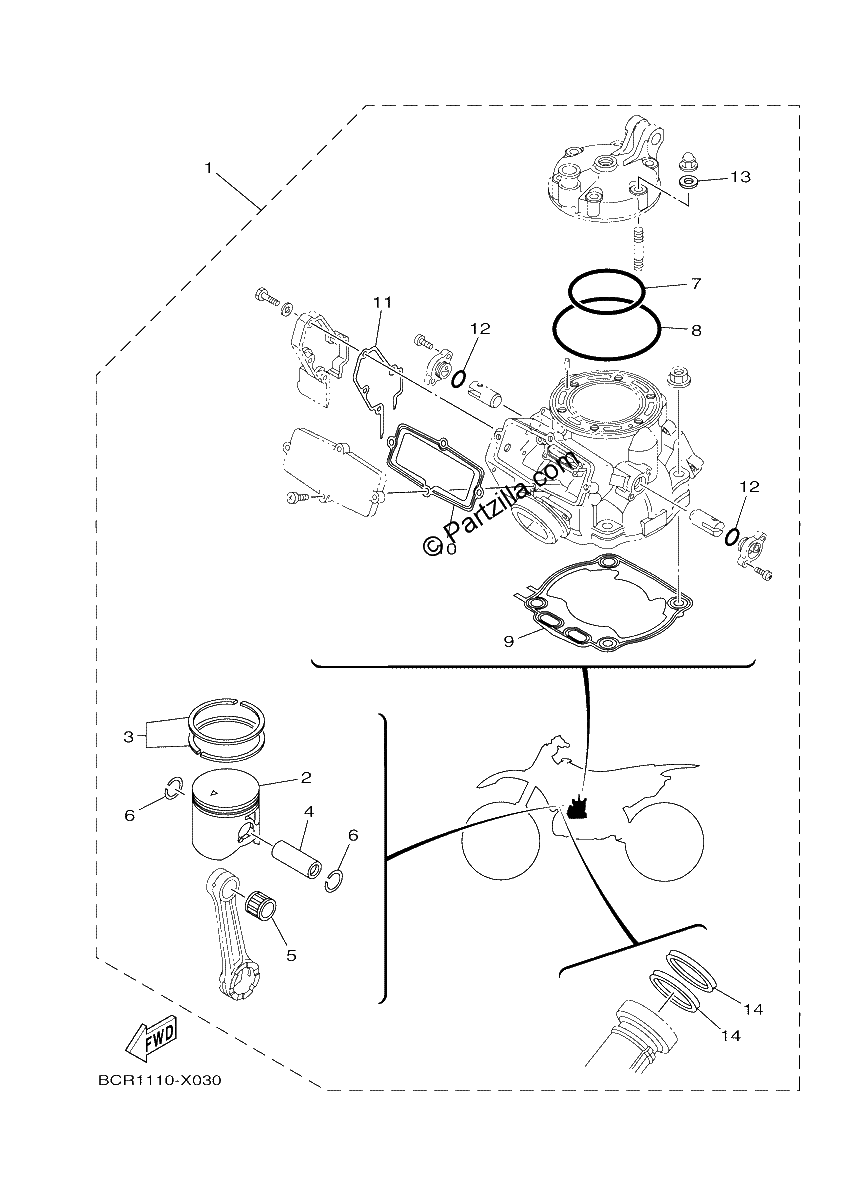

Diagrama de 4 PISTON REBUILT KIT

Repuestos

#1
1P8-WB033-00-A0
PISTON REBUILT KIT
$140.90¢70 450
1
#1
1P8-WB033-00-B0
PISTON REBUILT KIT
$144.69¢72 344
1
#1
1P8-WB033-00-C0
PISTON REBUILT KIT
$166.25¢83 125
1
#1
1P8-WB033-00-D0
PISTON REBUILT KIT
$172.20¢86 100
1
#2
1P8-11631-00-A0
PISTON (STD) | UR RED
$136.25¢68 125
1
#2
1P8-11631-00-C0
PISTON (STD) | UR GREEN
$136.25¢68 125
1
#2
1P8-11631-00-D0
PISTON (STD) | UR PURPLE
$136.25¢68 125
1
#2
1P8-11631-00-B0
PISTON (STD) | UR ORANGE
$125.11¢62 556
1
#3
5CU-11603-10-00
PISTON RING SET (STD)
$54.00¢27 000
1
#4
5UP-11633-00-00
PIN, PISTON
$36.88¢18 438
1
#5
93310-218A6-00
BEARING
$40.25¢20 125
1
#6
93450-19052-00
CIRCLIP
$6.06¢3 031
1
#7
93210-74316-00
O-RING
$10.10¢5 050
1
#8
93211-02703-00
O-RING
$10.69¢5 344
1
#9
5UP-11351-00-00
GASKET, CYLINDER
$41.60¢20 800
1
#10
5CU-11354-00-00
GASKET
$13.14¢6 569
1
#11
5CU-11993-00-00
GASKET
$8.03¢4 013
1
#12
93210-15639-00
O-RING
$5.93¢2 963
1
#13
90201-080L8-00
WASHER, PLATE
$3.34¢1 669
1
#14
5MW-14642-00-00
SEAL, EXHAUST
$18.90¢9 450
1
