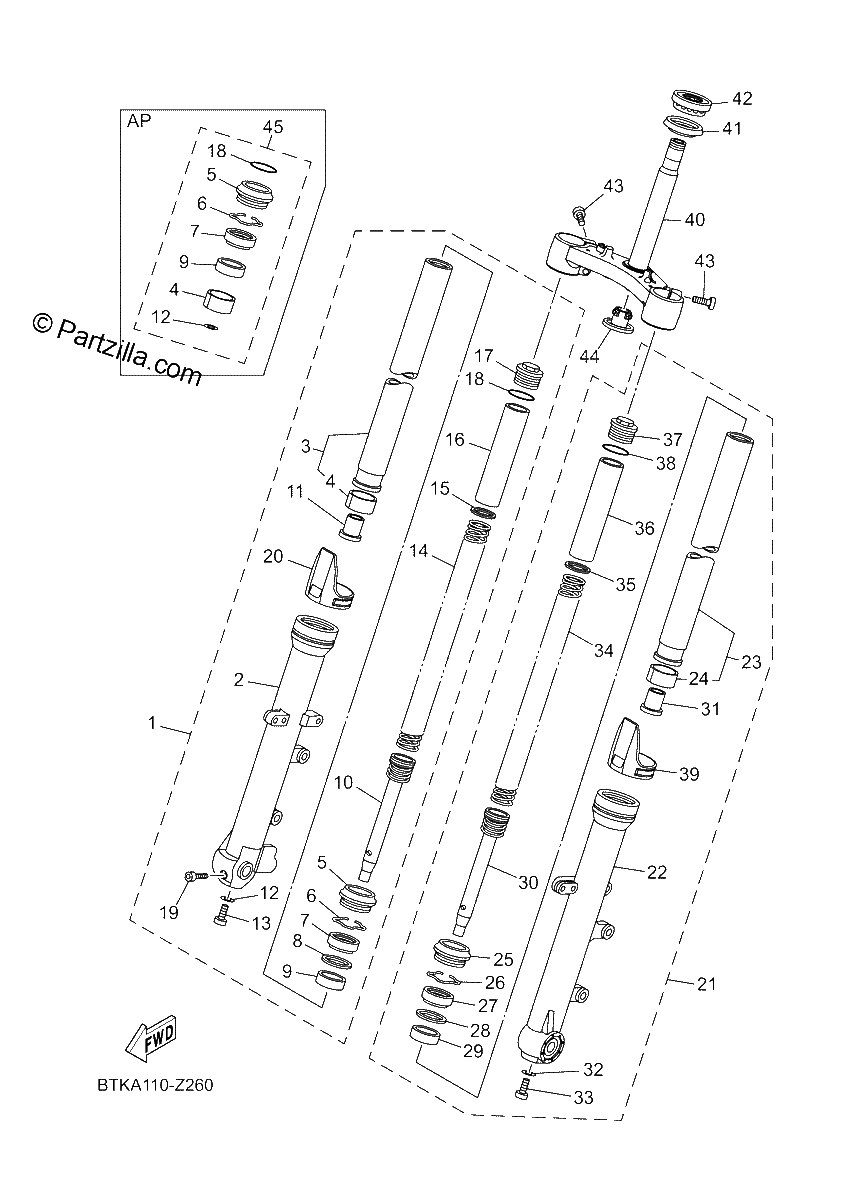

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FORK ASSY (R.H)
$503.13¢251 563
#2
TUBE, OUTER 2
$482.57¢241 288
#3
INNER TUBE COMP.1
$210.89¢105 444
#4
PISTON,FRONT FORK
$23.21¢11 606
#5
SEAL, DUST
$23.21¢11 606
#6
RING, SNAP
$7.88¢3 938
#7
OIL SEAL
$28.90¢14 450
#8
WASHER, OIL SEAL
$26.29¢13 144
#9
METAL,SLIDE 1
$34.88¢17 438
#10
CYLINDER COMP., front fork
$104.75¢52 375
#11
SPINDLE, TAPER
$39.31¢19 656
#12
GASKET | (KYB)
$17.09¢8 544
#13
BOLT, HEXAGON SOCKET HEAD
$9.10¢4 550
#14
. .SPRING, FRONT FORK
$47.98¢23 988
#15
WASHER,SPRING UPR
$3.33¢1 663
#16
SPACER
$21.66¢10 831
#17
BOLT, cap
$51.06¢25 531
#18
O-RING
$3.49¢1 744
#19
BOLT (3JP)
$6.25¢3 125
#20
Cover
$9.19¢4 594
#21
FRONT FORK ASSY (L.H)
$499.35¢249 675
#22
TUBE, OUTER (LH)
$478.27¢239 138
#23
INNER TUBE COMP.1
$210.89¢105 444
#24
PISTON,FRONT FORK
$23.21¢11 606
#25
SEAL, DUST
$23.21¢11 606
#26
RING, SNAP
$7.88¢3 938
#27
OIL SEAL
$28.90¢14 450
#28
WASHER, OIL SEAL
$26.29¢13 144
#29
METAL,SLIDE 1
$34.88¢17 438
#30
CYLINDER COMP., front fork
$104.75¢52 375
#31
SPINDLE, TAPER
$39.31¢19 656
#32
GASKET | (KYB)
$17.09¢8 544
#33
BOLT, HEXAGON SOCKET HEAD
$9.10¢4 550
#34
. .SPRING, FRONT FORK
$47.98¢23 988
#35
WASHER,SPRING UPR
$3.33¢1 663
#36
SPACER
$21.66¢10 831
#37
BOLT, cap
$51.06¢25 531
#38
O-RING
$3.49¢1 744
#39
Cover
$9.19¢4 594
#40
UNDER BRACKET COMP.
$374.50¢187 250
#41
SEAL, STEERING
$25.53¢12 763
#42
BEARING
$66.19¢33 094
#43
BOLT, HEXAGON SOCKET HEAD
$2.73¢1 363
#44
COVER, UNDER 1
$14.65¢7 325
#45
FORK SEALS KIT *{AP}*
$57.67¢28 838
