SIDE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

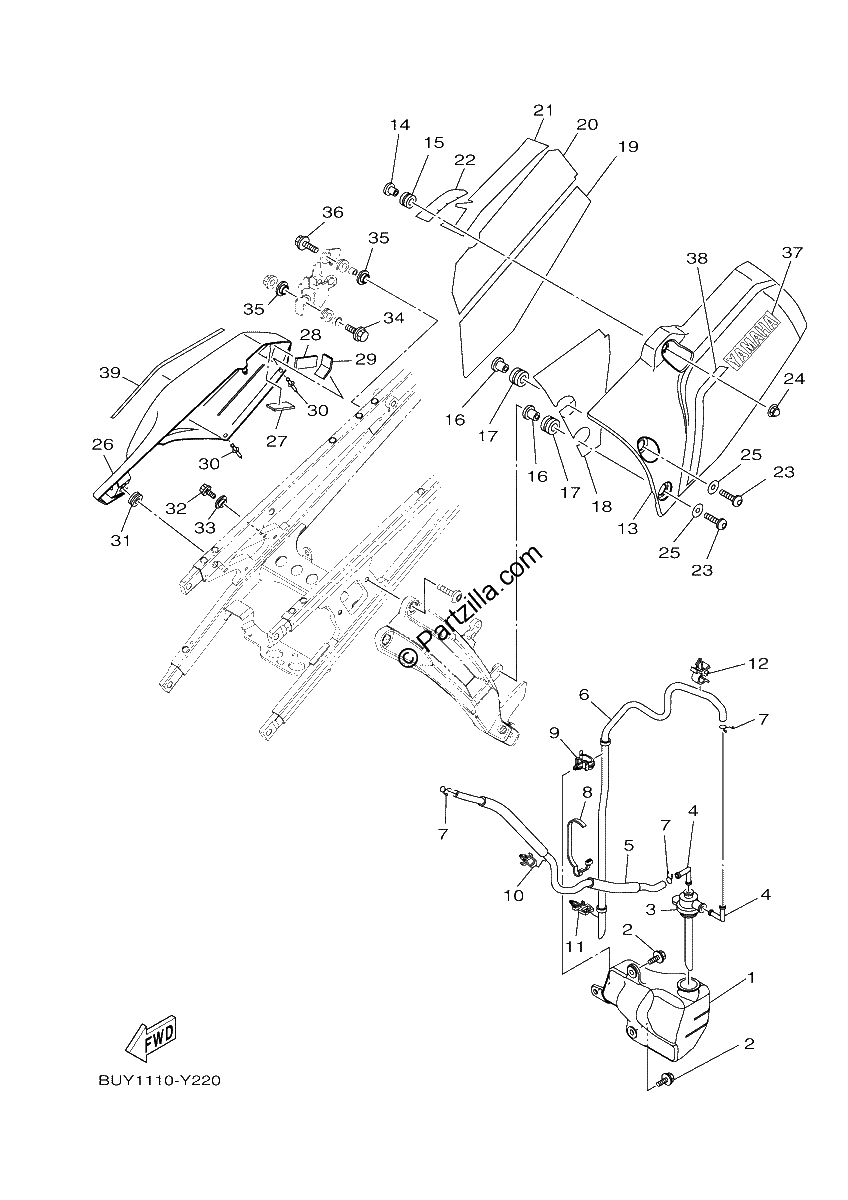

Diagrama de SIDE COVER

Repuestos

#1
23P-21871-00-00
TANK, RECOVERY
$41.76¢20 878
1
#2
90119-06137-00
BOLT, WITH WASHER
$6.83¢3 415
1
#3
23P-21875-00-00
CAP
$14.17¢7 084
1
#4
26H-21828-00-00
ELBOW
$24.05¢12 023
1
#5
23P-21816-00-00
PIPE 1
$16.65¢8 326
1
#6
23P-21877-00-00
PIPE, OVERFLOW
$5.27¢2 633
1
#7
90467-08075-00
CLIP
$6.75¢3 375
1
#8
90464-07M40-00
CLAMP
$15.25¢7 624
1
#9
90464-14M55-00
CLAMP
$2.02¢1 012
1
#10
90464-08008-00
CLAMP
$1.49¢747
1
#11
90464-07M56-00
CLAMP
$2.07¢1 035
1
#12
90464-09129-00
CLAMP
$2.02¢1 012
1
#13
2BS-14718-00-00
PROTECTOR, MUFFLER 1
$84.19¢42 096
1
#14
90387-06273-00
Collar
$3.01¢1 507
1
#15
90480-12581-00
GROMMET
$5.09¢2 547
1
#16
90387-10102-00
COLLAR
$5.17¢2 588
1
#17
90480-01025-00
GROMMET
$4.37¢2 185
1
#18
2BS-1475P-00-00
SEAT
$32.07¢16 037
1
#19
2BS-1476P-00-00
SEAT
$37.31¢18 653
1
#20
2BS-1477P-00-00
SEAT
$25.67¢12 834
1
#21
2BS-1479P-00-00
SEAT 5
$15.39¢7 694
1
#22
2BS-1471P-00-00
SEAT, 6
$3.69¢1 846
1
#23
90111-06038-00
BOLT, HEX. SOCKET BUTTON
$3.78¢1 892
1
#24
90176-06047-00
NUT, CAP
$7.52¢3 760
1
#25
90201-06112-00
WASHER, PLATE
$4.30¢2 151
1
#26
2KB-21721-00-P0
COVER, SIDE 2 | Use for Color MAT BLACK 2 ( MBL2 / 0582 )
$264.83¢132 417
1
#27
1S3-82122-00-00
SEAT, BATTERY
$3.43¢1 713
1
#28
14B-28237-00-00
DAMPER 3
$3.43¢1 713
1
#29
3D7-1442H-00-00
DAMPER 4
$3.29¢1 644
1
#30
90269-06081-00
RIVET
$6.23¢3 117
1
#31
90480-12325-00
GROMMET
$7.57¢3 783
1
#32
95802-08016-00
BOLT, FLANGE
$7.30¢3 651
1
#33
90387-08079-00
COLLAR
$8.21¢4 105
1
#34
95802-06020-00
BOLT, FLANGE
$3.05¢1 524
1
#35
90387-06066-00
Collar
$5.86¢2 932
1
#36
95802-06025-00
BOLT, FLANGE
$0.28¢138
1
#37
99246-00100-00
EMBLEM, YAMAHA
$16.90¢8 452
1
#38
2BS-146E1-A0-00
GRAPHIC 1
$21.48¢10 741
1
#39
2KB-21788-A0-00
GRAPHIC
$17.72¢8 861
1
