3 MAINTENANCE PARTS KIT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

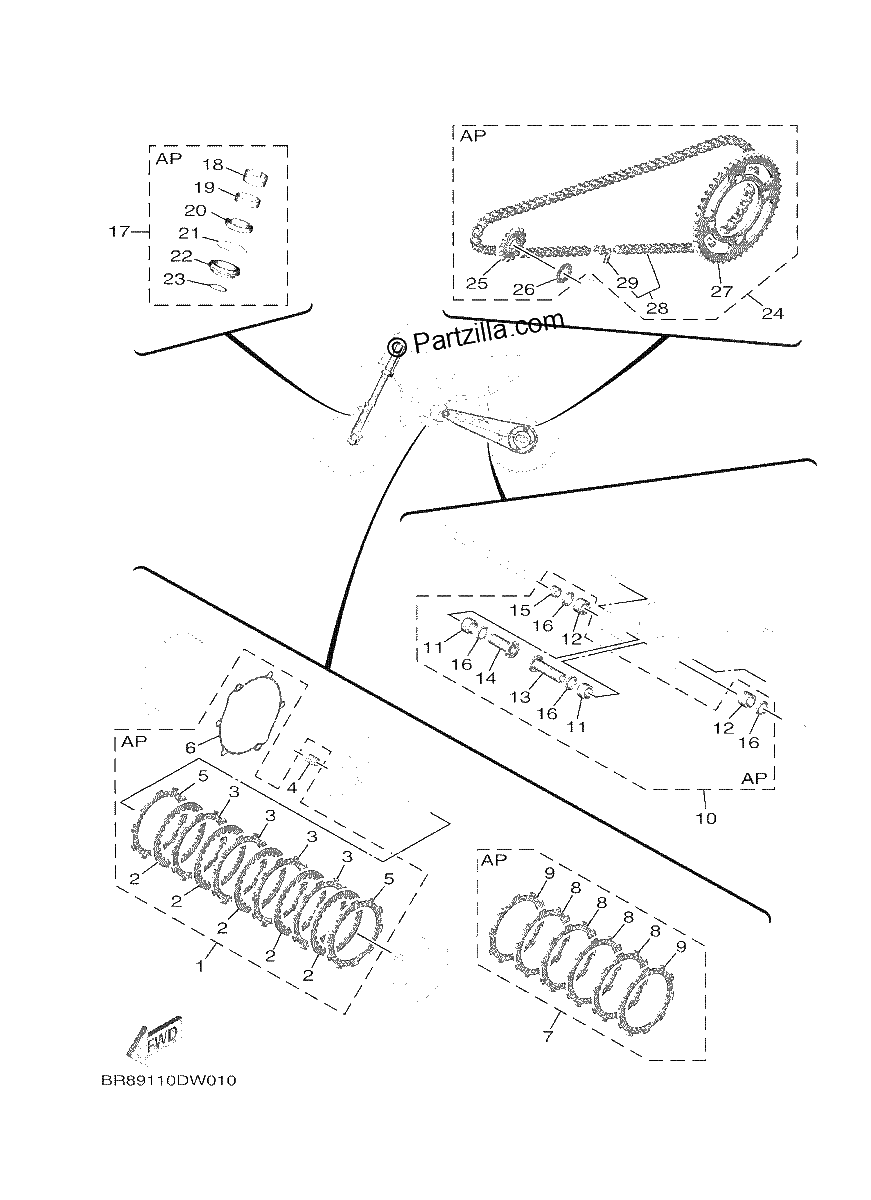

Diagrama de 3 MAINTENANCE PARTS KIT

Repuestos

#1
BR8-W001G-00-00
Clutch Plate Kit
$142.50¢71 248
1
#2
131-16324-00-00
PLATE, CLUTCH 1
$20.78¢10 390
1
#3
4ES-16321-00-00
PLATE, FRICTION
$17.39¢8 694
1
#4
90501-204A0-00
SPRING, COMPRESSION
$6.75¢3 375
1
#5
21V-16321-00-00
. PLATE, FRICTION
$18.95¢9 476
1
#6
5PA-15463-00-00
GASKET, 2
$12.21¢6 106
1
#7
BR8-W001M-00-00
FRICTION PLATE KIT
$74.37¢37 185
1
#8
4ES-16321-00-00
PLATE, FRICTION
$17.39¢8 694
1
#9
21V-16321-00-00
. PLATE, FRICTION
$18.95¢9 476
1
#10
1SN-W002C-00-00
SWING ARM PIVOT BEARING KIT
$115.24¢57 621
1
#11
90385-17042-00
BUSH
$20.87¢10 436
1
#12
93317-21746-00
BEARING
$32.61¢16 307
1
#13
90387-127J8-00
COLLAR
$34.88¢17 440
1
#14
90387-127J7-00
COLLAR
$29.62¢14 812
1
#15
90387-1200U-00
COLLAR
$18.07¢9 033
1
#16
93109-17071-00
OIL SEAL
$7.38¢3 691
1
#17
BR8-W003B-00-00
FORK SEALS KIT
$58.64¢29 319
1
#18
5PA-23171-00-00
PISTON, FRONT FORK
$29.57¢14 783
1
#19
5PA-23125-00-00
METAL, SLIDE 1
$13.90¢6 952
1
#20
4ES-23145-00-00
OIL SEAL
$20.35¢10 177
1
#21
4A1-23156-00-00
RING, SNAP
$5.21¢2 605
1
#22
4ES-23144-00-00
SEAL, DUST
$21.38¢10 689
1
#23
2HH-23158-L0-00
GASKET
$10.43¢5 215
1
#24
BR8-W001A-10-00
CHAIN & SPROCKET KIT
$202.05¢101 027
1
#25
9381A-14243-00
SPROCKET, DRIVE (14T)
$47.72¢23 862
1
#26
90215-20261-00
WASHER, LOCK
$7.24¢3 622
1
#27
BR8-25447-00-00
SPROCKET, DRIVEN (47T)
$89.69¢44 844
1
#28
9Y582-48113-00
CHAIN
$58.21¢29 106
1
#29
94682-48001-00
JOINT, CHAIN
$4.53¢2 266
1
