EXHAUST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

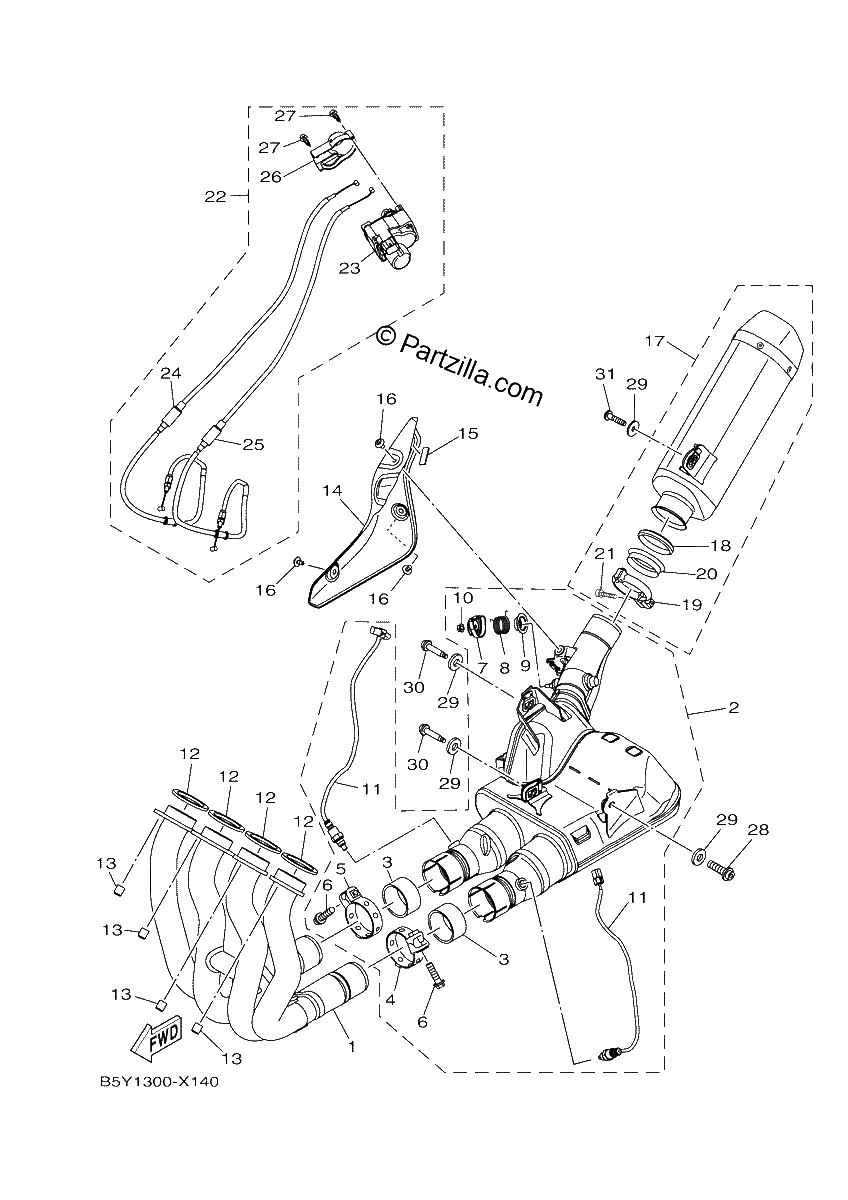

Diagrama de EXHAUST

Repuestos

#1
B60-14602-00-00
EXHAUST PIPE COMP.
$1117.79¢558 894
1
#2
B5Y-14730-10-00
CHAMBER ASSY
$2257.44¢1 128 719
1
#3
5YU-14714-10-00
GASKET, MUFFLER
$42.62¢21 310
1
#4
39P-14715-00-00
BAND, MUFFLER
$34.79¢17 394
1
#5
2CR-14715-00-00
BAND, MUFFLER
$32.18¢16 089
1
#6
95024-08035-00
BOLT,FLANGE (3EF)
$6.75¢3 375
1
#7
2C0-14865-00-00
PULLEY
$27.74¢13 869
1
#8
2C0-14856-00-00
SPRING
$4.57¢2 283
1
#9
2D1-14843-00-00
SEAT, SPRING
$6.57¢3 283
1
#10
90179-06063-00
NUT
$3.96¢1 978
1
#11
2CR-8592A-20-00
SENSOR, OXYGEN (replaces 2CR-8592A-10-00)
$255.13¢127 564
1
#12
2CR-14613-00-00
GASKET, EXHAUST PIPE
$10.43¢5 215
1
#13
90179-08442-00
NUT,SPEC'L SHAPE
$6.27¢3 134
1
#14
B5Y-14718-00-00
PROTECTOR, MUFFLER 1
$241.33¢120 664
1
#15
B5Y-1475P-00-00
SEAT
$2.50¢1 248
1
#16
90111-06153-00
BOLT, HEX. SOCKET BUTTON
$1.31¢655
1
#17
B5Y-14750-00-00
SILENCER ASSY
$2488.59¢1 244 294
1
#18
2CR-14623-00-00
GASKET, EXHAUST PIPE
$15.65¢7 826
1
#19
2CR-14725-00-00
BAND, MUFFLER
$50.37¢25 185
1
#20
2CR-14618-00-00
RING, STOPPER
$18.14¢9 068
1
#21
90110-06343-00
BOLT, HEXAGON SOCKET HEAD
$3.10¢1 553
1
#22
B5Y-4616A-01-00
SERVO MOTOR COMP
$499.92¢249 958
1
#23
B5Y-85820-01-00
SERVO MOTOR ASSY
$336.18¢168 090
1
#24
B5Y-1133E-00-00
CABLE, PULLEY 1
$88.57¢44 287
1
#25
B5Y-1133F-00-00
CABLE, PULLEY 2
$77.97¢38 985
1
#26
5VY-85829-01-00
COVER, SERVO MOTOR
$11.12¢5 560
1
#27
97702-50514-00
SCREW, TAPPING
$4.20¢2 099
1
#28
90110-08099-00
BOLT, HEXAGON SOCKET HEAD
$7.37¢3 686
1
#29
90201-087G2-00
WASHER, PLATE
$3.40¢1 702
1
#30
90109-08238-00
BOLT
$3.39¢1 696
1
#31
90110-08071-00
BOLT, HEXAGON SOCKET HEAD
$7.67¢3 835
1
