INTAKE 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

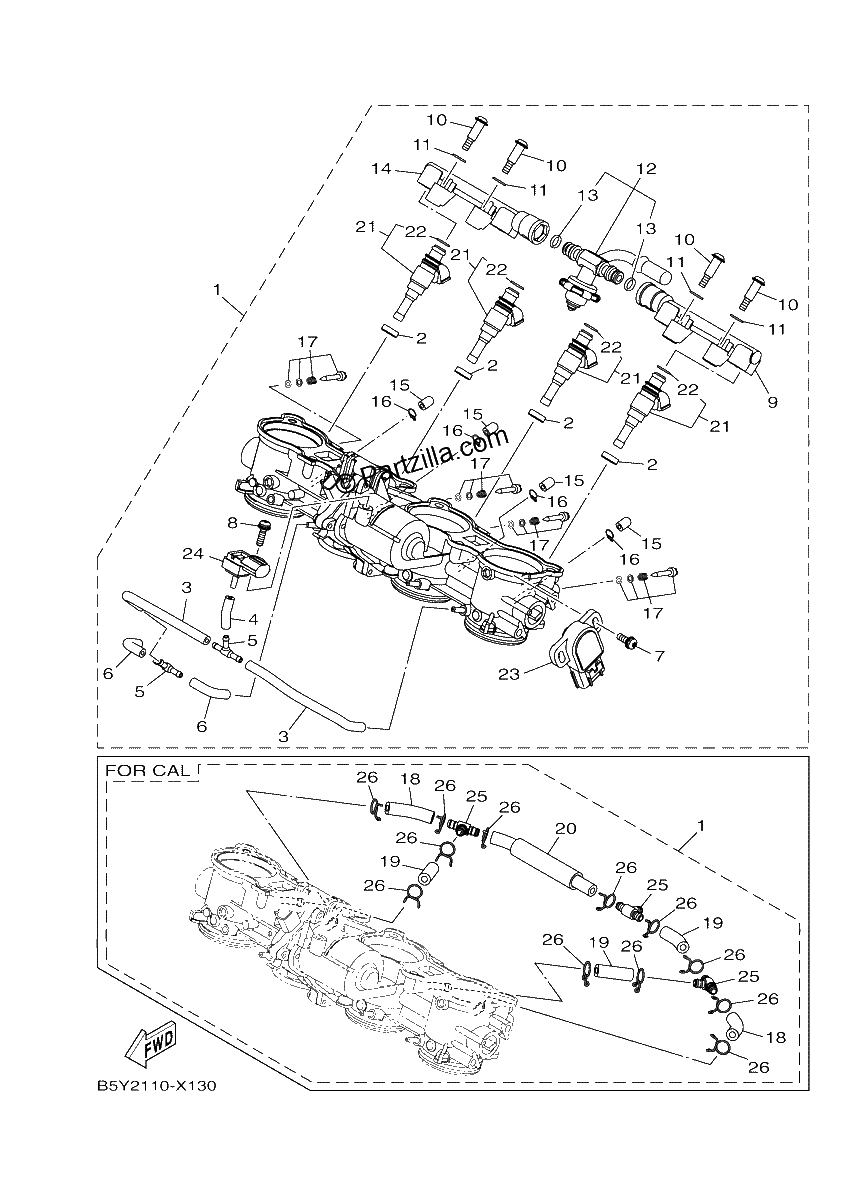

Diagrama de INTAKE 2

Repuestos

#1
B5Y-13750-10-00
THROTTLE BODY ASSY *{FOR U49}*
$2631.24¢1 315 619
1
#2
8FP-13556-00-00
RUBBER, INJECTOR
$14.65¢7 325
1
#3
5JW-14987-00-00
HOSE
$18.23¢9 113
1
#4
5FL-14348-10-00
PIPE 1
$4.92¢2 463
1
#5
68V-24376-00-00
PIPE, JOINT 1
$17.35¢8 675
1
#6
8FP-14349-00-00
PIPE
$12.06¢6 031
1
#7
8CC-14216-10-00
SCREW
$8.50¢4 250
1
#8
2C0-14216-00-00
SCREW
$3.73¢1 863
1
#9
2CR-1393A-00-00
PIPE, INLET
$78.58¢39 288
1
#10
14B-13573-00-00
BOLT 1
$5.72¢2 863
1
#11
363-14198-00-00
GASKET
$11.81¢5 906
1
#12
B67-13795-00-00
. . JOINT, THROTTLE BODY 1
$229.71¢114 856
1
#13
39P-14147-00-00
O-Ring
$7.24¢3 619
1
#14
2CR-1393B-00-00
PIPE, INLET 2
$88.01¢44 006
1
#15
895-14169-00-00
CAP
$4.76¢2 381
1
#16
8A7-14139-00-00
CLIP, PIPE
$8.09¢4 044
1
#17
2C0-14105-00-00
PILOT SCREW SET
$37.61¢18 806
1
#21
4C8-13761-00-00
INJECTOR
$175.90¢87 950
1
#22
5PS-14147-00-00
O-RING
$11.09¢5 544
1
#23
B3L-85885-01-00
THROTTLE SENSOR ASSY
$112.54¢56 269
1
#24
1WS-82380-00-00
Sensor, Pressure
$203.69¢101 844
1
