ELECTRICAL 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

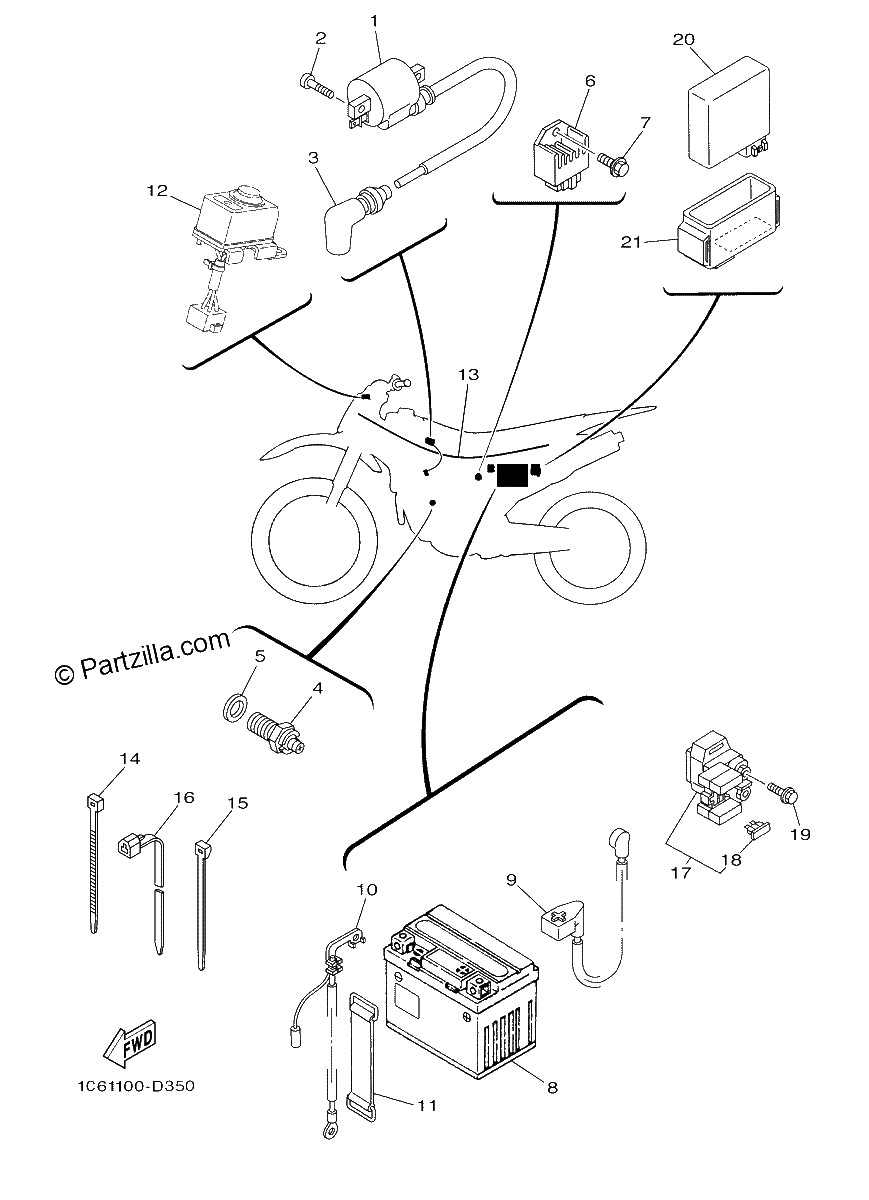

Diagrama de ELECTRICAL 1

Repuestos

#1
3NS-82310-13-00
IGNITION COIL ASSY
$48.37¢24 185
1
#2
9502M-06016-00
BOLT, FLANGE
$1.64¢822
1
#3
3NS-82370-00-00
PLUG CAP ASY
$35.58¢17 790
1
#4
4GY-82540-10-00
NEUTRAL SWITCH ASSY
$36.73¢18 366
1
#5
90430-10148-00
Gasket
$5.21¢2 605
1
#6
4GU-H1960-00-00
RECTIFIER & REGULATOR ASSY
$218.03¢109 014
1
#7
9502M-06012-00
BOLT, FLANGE
$3.58¢1 788
1
#8
YTX-5LBS0-00-00
YTX5LBS YUASA BATTE (replaces 1C6-H2100-10-00)
No Disponible
1
#9
1C6-H2115-00-00
WIRE, plus lead
$22.48¢11 241
1
#10
1C6-H2116-00-00
WIRE, MINUS LEAD
$14.57¢7 285
1
#11
1C6-H2131-00-00
BAND, BATTERY
$7.07¢3 536
1
#12
1C6-82510-01-00
MAIN SWITCH ASSY (replaces 1C6-82510-00-00)
$109.76¢54 878
1
#13
1C6-H2590-00-00
WIRE HARNESS ASSY
$144.73¢72 364
1
#14
90464-70800-00
CLAMP
$0.98¢489
1
#15
90465-13152-00
CLAMP
$4.52¢2 260
1
#16
90464-13077-00
CLAMP
$7.30¢3 651
1
#17
5HH-81940-02-00
STARTER RELAY ASSY
$123.14¢61 571
1
#18
42X-82151-00-00
FUSE (10A-BL)
$2.43¢1 213
1
#19
9502M-06008-00
BOLT, FLANGE
$6.14¢3 070
1
#20
1C6-H5540-00-00
C.D.I. UNIT ASSY
$449.82¢224 911
1
#21
1C6-H5546-00-00
BAND
$10.35¢5 175
1
