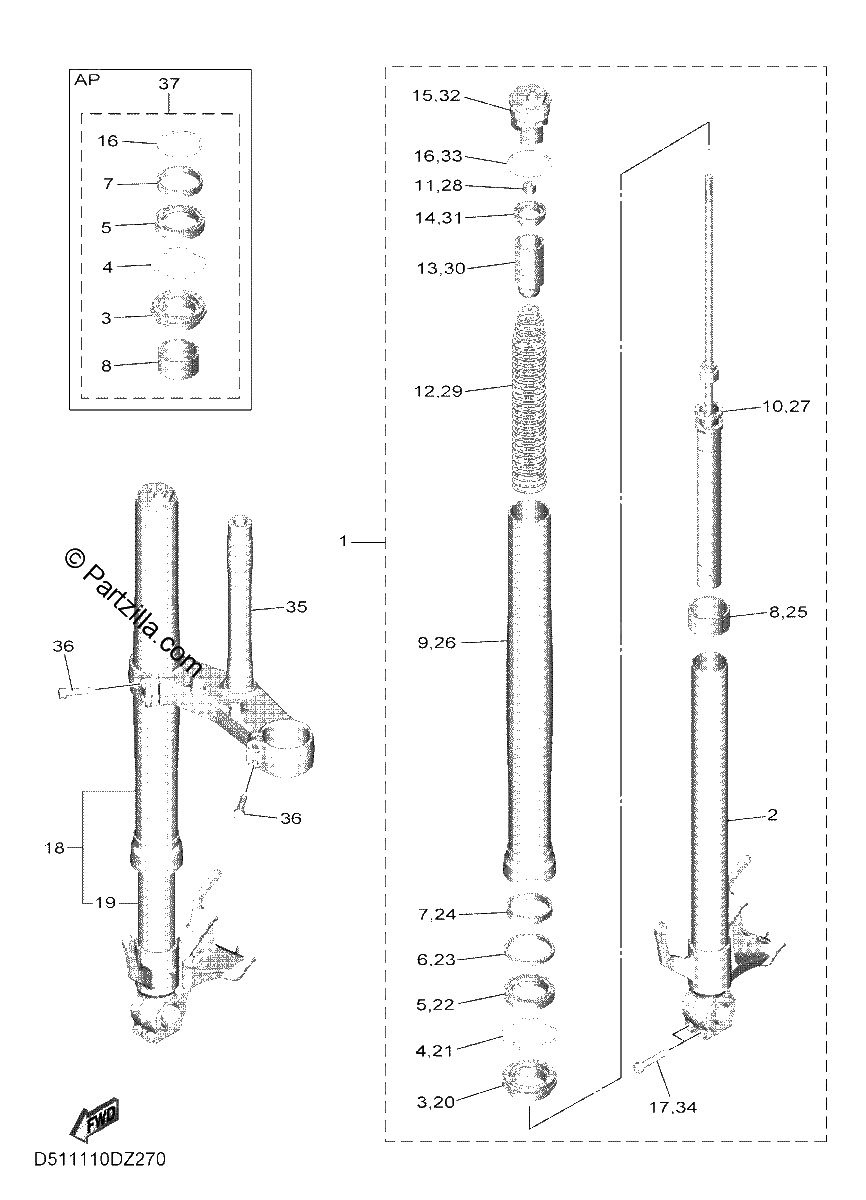

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
DEMPER ASSY. (L)
$1427.49¢713 744
#2
INNER TUBE COMP1
$378.16¢189 081
#3
SEAL, DUST
$24.02¢12 013
#4
RING, SNAP | (KYB)
$10.31¢5 156
#5
OIL SEAL
$24.99¢12 494
#6
WASHER, OIL SEAL
$18.90¢9 450
#7
METAL, SLIDE 1
$11.39¢5 694
#8
PISTON, FRONT FORK
$27.70¢13 850
#9
TUBE, OUTER 2 | UR FOR DPBMC
$353.70¢176 850
#10
CYLINDER COMP., front fork
$415.99¢207 994
#11
NUT
$7.91¢3 956
#12
SPRING, FRONT FORK
$34.13¢17 063
#13
SPACER
$12.72¢6 363
#14
GUIDE, SPRING
$13.13¢6 563
#15
BOLT, cap
$365.74¢182 869
#16
O-RING
$8.21¢4 106
#17
BOLT (3JP)
$6.25¢3 125
#18
DAMPER ASSY. (R)
$1427.49¢713 744
#19
INNER TUBE COMP2
$378.16¢189 081
#20
SEAL, DUST
$24.02¢12 013
#21
RING, SNAP | (KYB)
$10.31¢5 156
#22
OIL SEAL
$24.99¢12 494
#23
WASHER, OIL SEAL
$18.90¢9 450
#24
METAL, SLIDE 1
$11.39¢5 694
#25
PISTON, FRONT FORK
$27.70¢13 850
#26
TUBE, OUTER 2 | UR FOR DPBMC
$353.70¢176 850
#27
CYLINDER COMP., front fork
$415.99¢207 994
#28
NUT
$7.91¢3 956
#29
SPRING, FRONT FORK
$34.13¢17 063
#30
SPACER
$12.72¢6 363
#31
GUIDE, SPRING
$13.13¢6 563
#32
BOLT, cap
$365.74¢182 869
#33
O-RING
$8.21¢4 106
#34
BOLT (3JP)
$6.25¢3 125
#35
UNDER BRACKET COMP.
$558.92¢279 463
#36
BOLT, HEXAGON SOCKET HEAD
$2.73¢1 363
#37
FORK SEALS KIT
$40.59¢20 294
