FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

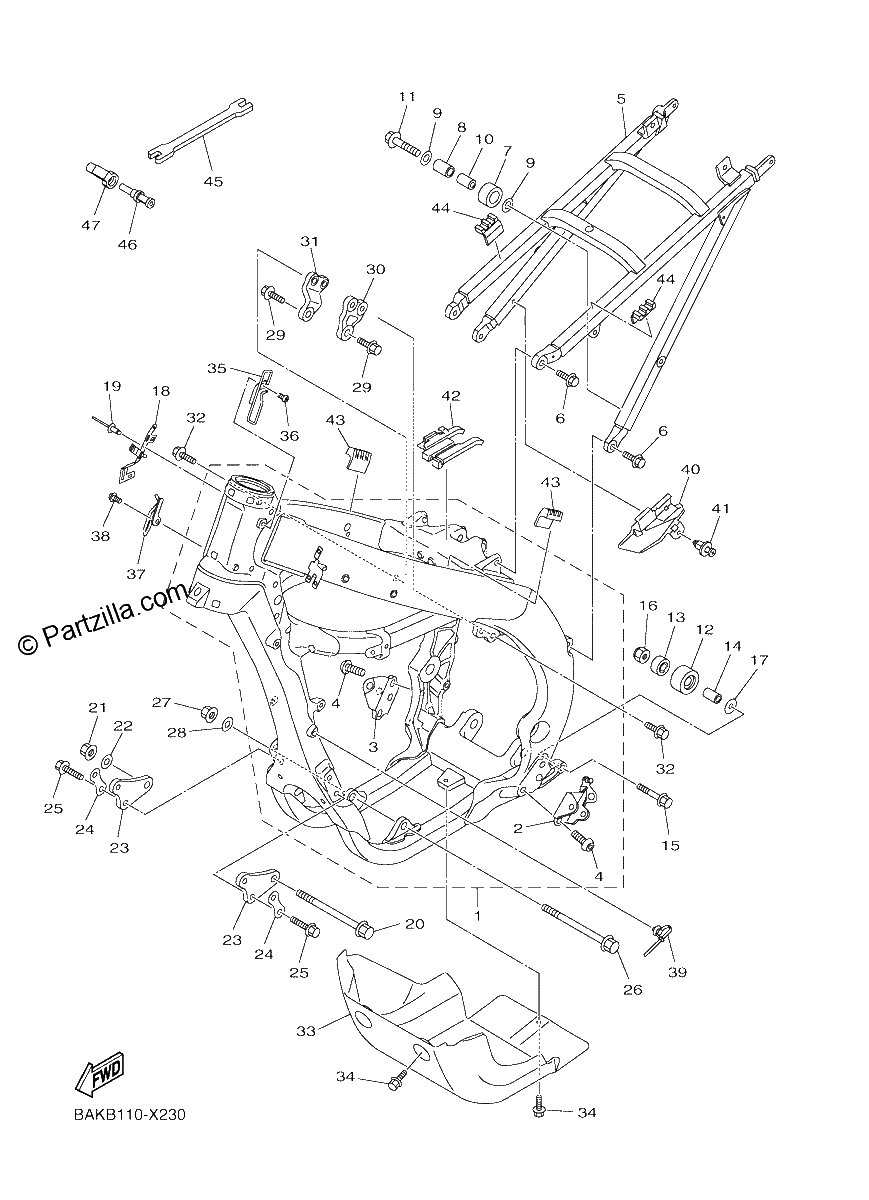

Diagrama de FRAME

Repuestos

#1
BEX-21101-01-00
FRONT FRAME COMP.
$4173.97¢2 086 987
1
#2
B3J-21447-00-00
BRACKET,FOOTREST
$334.44¢167 219
1
#3
17D-21448-00-00
BRACKET, FOOTREST
$39.71¢19 856
1
#4
90149-10031-00
SCREW
$6.49¢3 244
1
#5
BR9-21190-10-00
REAR FRAME COMP.
$577.36¢288 681
1
#6
90105-08230-00
Bolt, Flange
$4.24¢2 119
1
#7
30X-22178-00-00
TENSIONER
$37.55¢18 775
1
#8
4V4-22184-00-00
BUSH
$4.24¢2 119
1
#9
90201-08045-00
WASHER, PLATE
$5.66¢2 831
1
#10
90387-08041-00
COLLAR
$8.03¢4 013
1
#11
95E32-08040-00
BOLT, FLANGE DEEP RECESS
$0.93¢463
1
#12
BR9-22178-00-00
TENSIONER
$36.29¢18 144
1
#13
93300-60839-00
BEARING
$13.31¢6 656
1
#14
90387-086N4-00
COLLAR
$9.91¢4 956
1
#15
90105-08232-00
BOLT, FLANGE
$2.58¢1 288
1
#16
90185-08009-00
NUT, SELF-LOCKING
$8.09¢4 044
1
#17
90201-08043-00
WASHER, plate
$6.88¢3 438
1
#18
B3J-21149-00-00
Bracket, Battery Box
$38.19¢19 094
1
#19
90267-32146-00
RIVET, BLIND
$6.91¢3 456
1
#20
90105-10230-00
Bolt, Flange
$7.36¢3 681
1
#21
90179-10658-00
NUT,SPEC'L SHAPE
$9.22¢4 613
1
#22
90201-10045-00
WASHER, PLATE
$7.34¢3 669
1
#23
BAK-21417-00-00
BRACKET, FRONT LOWER 1
$17.69¢8 844
1
#24
BAJ-21418-00-00
BRACKET, FRONT LOWER 2
$20.66¢10 331
1
#25
90105-08143-00
BOLT, FLANGE
$6.78¢3 388
1
#26
90105-10176-00
BOLT, FLANGE
$11.43¢5 713
1
#27
90179-10658-00
NUT,SPEC'L SHAPE
$9.22¢4 613
1
#28
90201-10045-00
WASHER, PLATE
$7.34¢3 669
1
#29
90105-10189-00
BOLT, FLANGE
$9.98¢4 988
1
#30
B7B-21425-00-00
BRACKET, REAR UPPER 1
$74.23¢37 113
1
#31
B7B-21426-00-00
BRACKET, REAR UPPER 2
$56.90¢28 450
1
#32
90105-08143-00
BOLT, FLANGE
$6.78¢3 388
1
#33
B3J-2147A-00-00
GUARD, ENGINE 1
$61.46¢30 731
1
#34
90119-06166-00
BOLT, WITH WASHER
$5.72¢2 863
1
#35
1SL-21163-01-00
HOLDER, CLUTCH CABLE
$20.56¢10 281
1
#36
92012-06010-00
BOLT, BUTTON HEAD
$2.91¢1 456
1
#37
BDB-21163-00-00
HOLDER, WIRE
$18.38¢9 188
1
#38
92012-06010-00
BOLT, BUTTON HEAD
$2.91¢1 456
1
#39
90464-31002-00
CLAMP
$4.56¢2 281
1
#40
BR9-2171X-02-00
COVER, SIDE 6
$6.59¢3 294
1
#41
90269-06081-00
RIVET
$6.78¢3 388
1
#42
BR9-24181-00-00
DAMPER, locating 1
$34.51¢17 256
1
#43
BR9-24182-00-00
DAMPER, locating 2
$30.53¢15 263
1
#44
BR9-24183-10-00
DAMPER, LOCATING 3
$15.93¢7 963
1
#45
5ET-28166-10-00
WRENCH, HEXAGON
$34.86¢17 431
1
#46
18P-2467E-00-00
CAP
$7.86¢3 931
1
#47
18P-2464V-01-00
CASE, CAP
$5.80¢2 900
1
