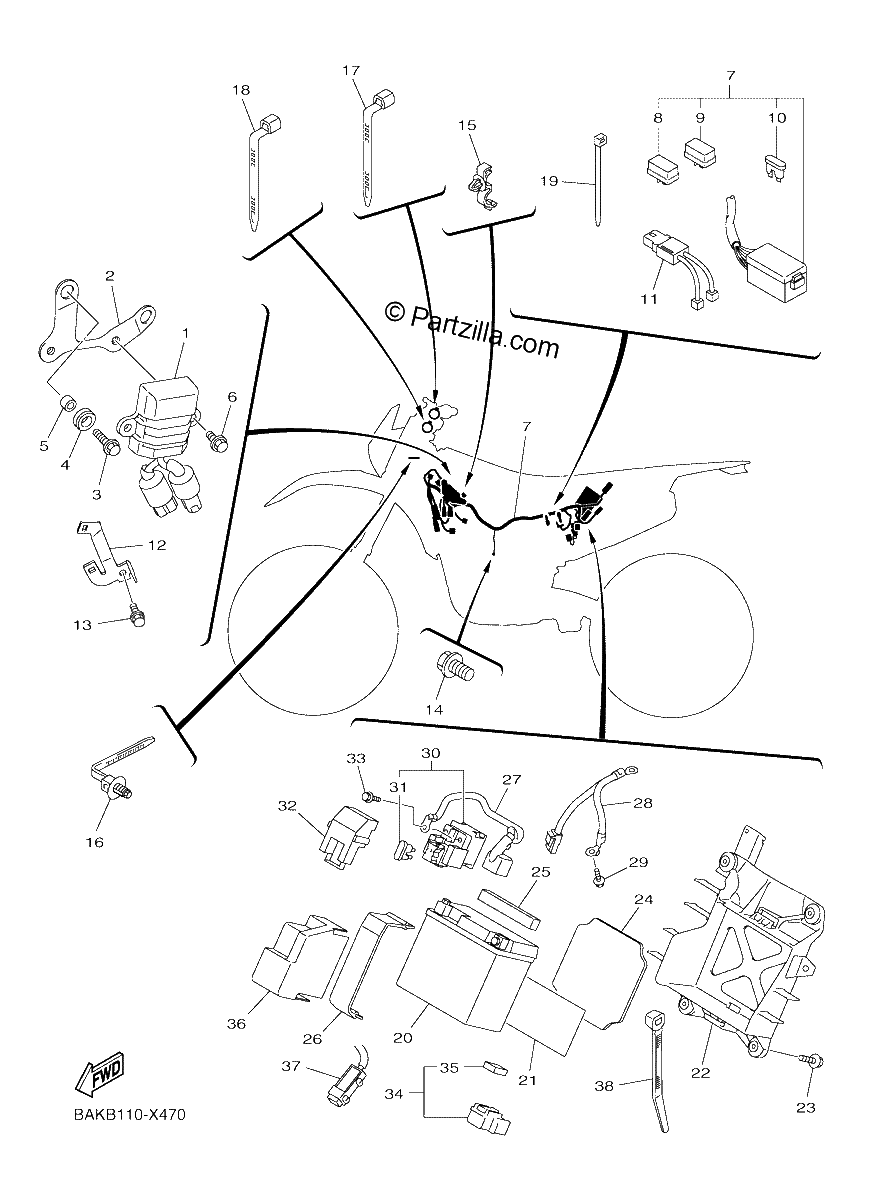

ELECTRICAL 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
RECTIFIER & REGULATOR ASSY
$160.76¢80 381
#2
BRACKET, REGULATOR
$14.59¢7 294
#3
Bolt, Flange
$2.16¢1 081
#4
Grommet
$3.79¢1 894
#5
COLLAR
$8.89¢4 444
#6
Bolt, Flange
$3.17¢1 588
#7
WIRE HARNESS ASSY
$738.74¢369 369
#8
DIODE ASSY
$30.92¢15 462
#9
RECTIFIER 2
$22.45¢11 225
#10
. FUSE (5A-BL)
$7.10¢3 550
#11
WIRE, SUB LEAD
$30.67¢15 337
#12
PLATE
$9.74¢4 869
#13
Bolt, Flange
$7.46¢3 731
#14
BOLT, FLANGE DEEP RECESS
$0.91¢456
#15
Clamp
$3.69¢1 844
#16
CLAMP
$3.89¢1 944
#17
Clamp
$2.81¢1 406
#18
Clamp
$3.30¢1 650
#19
BAND
$4.91¢2 456
#20
BATTERY YTZ7S(F) - FA
$246.70¢123 350
#21
SEAT, BATTERY
$8.06¢4 031
#22
BRACKET, BATTERY
$70.77¢35 387
#23
BOLT, WITH WASHER
$5.61¢2 806
#24
DAMPER
$4.00¢2 000
#25
Damper
$7.86¢3 931
#26
BAND, BATTERY
$12.21¢6 106
#27
WIRE, plus lead
$18.19¢9 094
#28
WIRE, MINUS LEAD
$20.49¢10 244
#29
Bolt, Flange
$3.17¢1 588
#30
STARTER RELAY ASSY (RC19-102B)
$53.90¢26 950
#31
Fuse (15 Amp)
$4.84¢2 419
#32
COVER, LEAD WIRE
$4.84¢2 419
#33
BOLT, FLANGE
$7.46¢3 731
#34
RELAY ASSY (1ST-00)
$17.80¢8 900
#35
HOLDER, RELAY
$9.46¢4 731
#36
COVER 1
$26.02¢13 013
#37
RESISTOR ASSY
$59.49¢29 744
#38
CLAMP
$2.78¢1 388
