REAR ARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

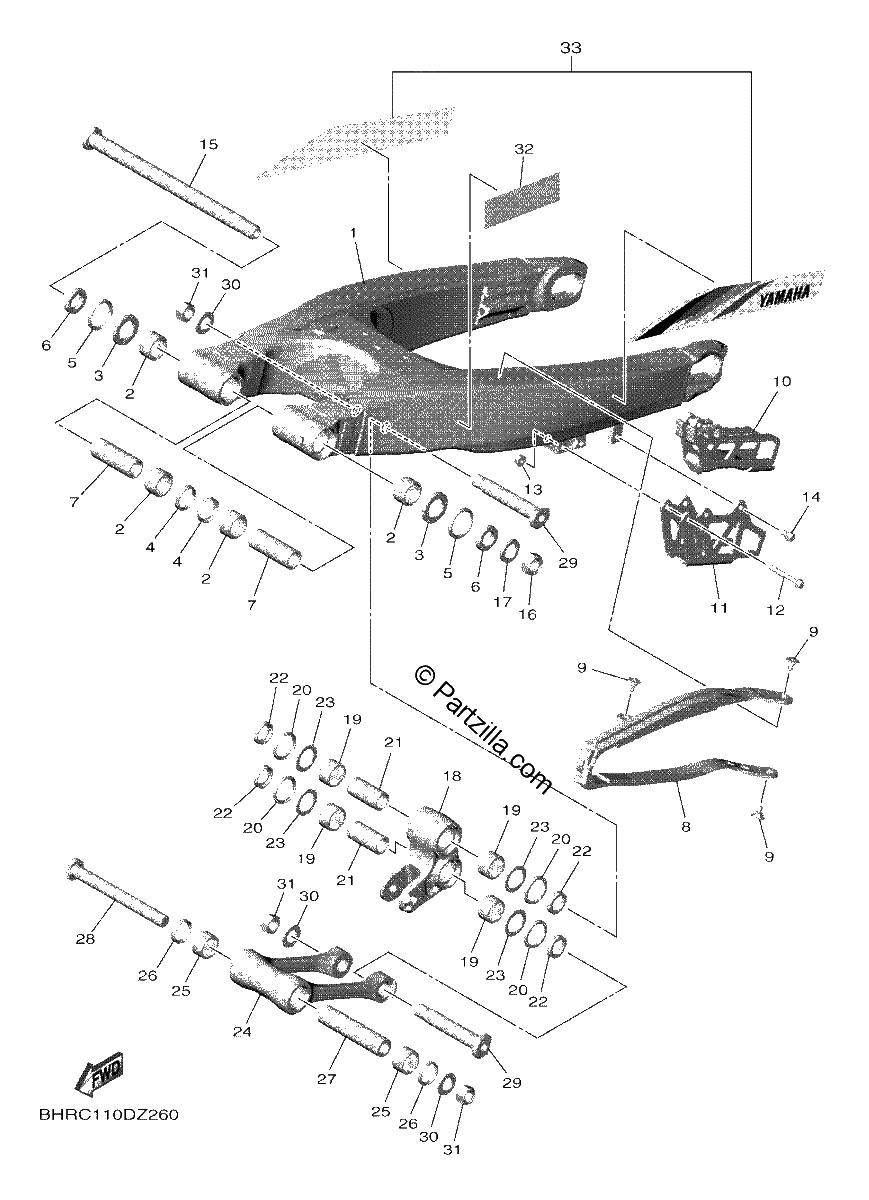

Diagrama de REAR ARM

Repuestos

#1
BHR-22110-00-00
REAR ARM COMP.
$1574.99¢787 494
1
#2
93317-22262-00
BEARING
$40.65¢20 325
1
#3
93342-22217-00
BEARING
$43.49¢21 744
1
#4
93106-22002-00
OIL SEAL
$11.10¢5 550
1
#5
93109-28043-00
OIL SEAL,SDO-TYPE
$11.46¢5 731
1
#6
90387-17019-00
Collar
$11.49¢5 744
1
#7
90387-1714S-00
Collar
$44.29¢22 144
1
#8
34P-22151-01-00
SEAL, GUARD
$65.15¢32 575
1
#9
1C3-22969-90-00
SCREW, 1
$6.85¢3 425
1
#10
BHR-22199-00-00
SUPPORT, CHAIN
$77.42¢38 713
1
#11
BHR-22128-00-00
COVER, THRUST 1
$41.97¢20 987
1
#12
95E32-06040-00
BOLT, FLANGE DEEP RECESS
$0.47¢238
1
#13
95702-06500-00
NUT, FLANGE
$2.44¢1 219
1
#14
95E32-06010-00
BOLT, FLANGE DEEP RECESS
$0.91¢456
1
#15
33D-22141-00-00
Shaft, Pivot
$74.26¢37 131
1
#16
90185-16002-00
NUT, SELF-LOCKING
$18.00¢9 000
1
#17
90201-16018-00
WASHER, plate
$7.99¢3 994
1
#18
17D-2217A-00-00
ARM, RELAY
$206.74¢103 369
1
#19
93315-32166-00
BEARING
$28.40¢14 200
1
#20
93109-25001-00
O-Ring
$11.81¢5 906
1
#21
90387-16026-00
Collar
$30.72¢15 362
1
#22
90209-16011-00
WASHER
$16.30¢8 150
1
#23
90201-21014-00
WASHER, plate
$7.46¢3 731
1
#24
BR9-2217F-00-00
ROD, CONNECTING 1
$232.13¢116 063
1
#25
93315-32166-00
BEARING
$28.40¢14 200
1
#26
93109-21001-00
O-Ring
$11.39¢5 694
1
#27
90387-14016-00
Collar
$32.79¢16 394
1
#28
5XC-22121-91-00
SHAFT 1
$42.95¢21 475
1
#29
34P-22122-00-00
Shaft 2
$25.14¢12 569
1
#30
90201-14020-00
WASHER, plate
$6.35¢3 175
1
#31
90185-14010-00
NUT, SELF-LOCKING
$14.06¢7 031
1
#32
3RV-21668-A1-00
LABEL, TIRE
$4.38¢2 188
1
#33
BHR-221F0-00-00
RR. ARM GRAPHIC SET
$51.76¢25 881
1
