ELECTRICAL 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

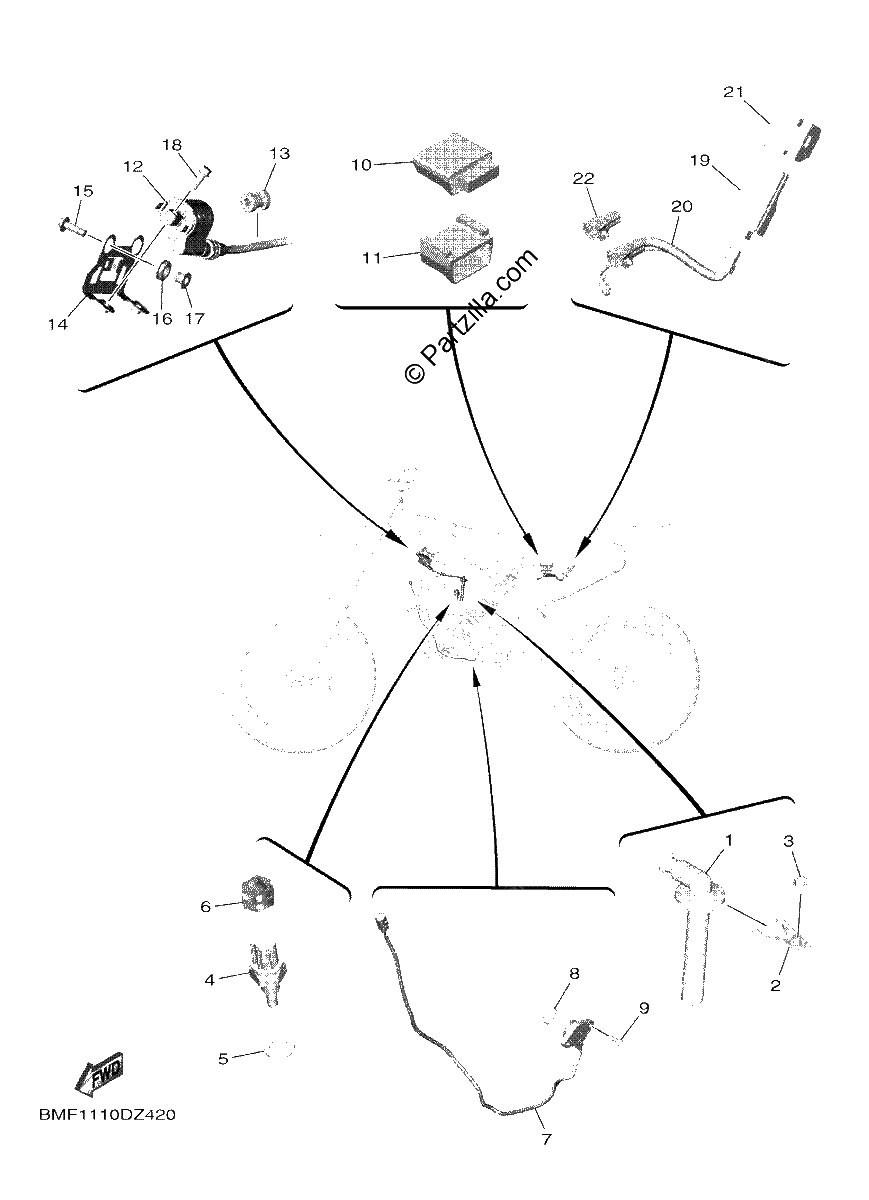

Diagrama de ELECTRICAL 1

Repuestos

#1
1SM-82370-01-00
PLUG CAP ASSY
$112.73¢56 363
1
#2
BR9-11395-00-00
HOLDER
$5.07¢2 537
1
#3
95702-06500-00
NUT, FLANGE
$2.44¢1 219
1
#4
4P9-83591-00-00
THERMO UNIT
$34.40¢17 200
1
#5
90430-10004-00
GASKET
$7.08¢3 538
1
#6
B2W-82915-00-00
HOLDER, LEVER UNDER
$6.59¢3 294
1
#7
BMF-82540-00-00
NEUTRAL SWITCH ASSY
$79.09¢39 544
1
#8
93210-21001-00
O-RING
$5.69¢2 844
1
#9
90110-05062-00
BOLT, HEXAGON SOCKET HEAD
$7.48¢3 738
1
#10
BMF-8591A-00-00
ENGINE CONTROL UNIT ASSY
$796.24¢398 119
1
#11
BHR-82155-00-00
BAND
$36.23¢18 113
1
#12
BHR-82310-00-00
IGNITION COIL ASSY
$95.84¢47 919
1
#13
90480-11015-00
Grommet
$4.15¢2 075
1
#14
BHR-2194U-00-00
STAY, IGNITION COIL
$26.63¢13 313
1
#15
90105-06219-00
Bolt, Flange
$2.16¢1 081
1
#16
90480-14477-00
GROMMET
$3.84¢1 919
1
#17
90387-06M79-00
COLLAR
$12.21¢6 106
1
#18
95E32-06016-00
BOLT, FLANGE DEEP RECESS
$0.81¢406
1
#19
BHR-85810-00-00
COMMUNICATION CONT. UNIT ASSY
$1108.74¢554 369
1
#20
BHR-85721-00-00
WIRE, LEAD
$56.54¢28 269
1
#21
BHR-85546-00-00
BAND
$19.77¢9 888
1
#22
BHR-82378-00-00
CONNECTOR
$15.29¢7 644
1
