CRANKSHAFT PISTON

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

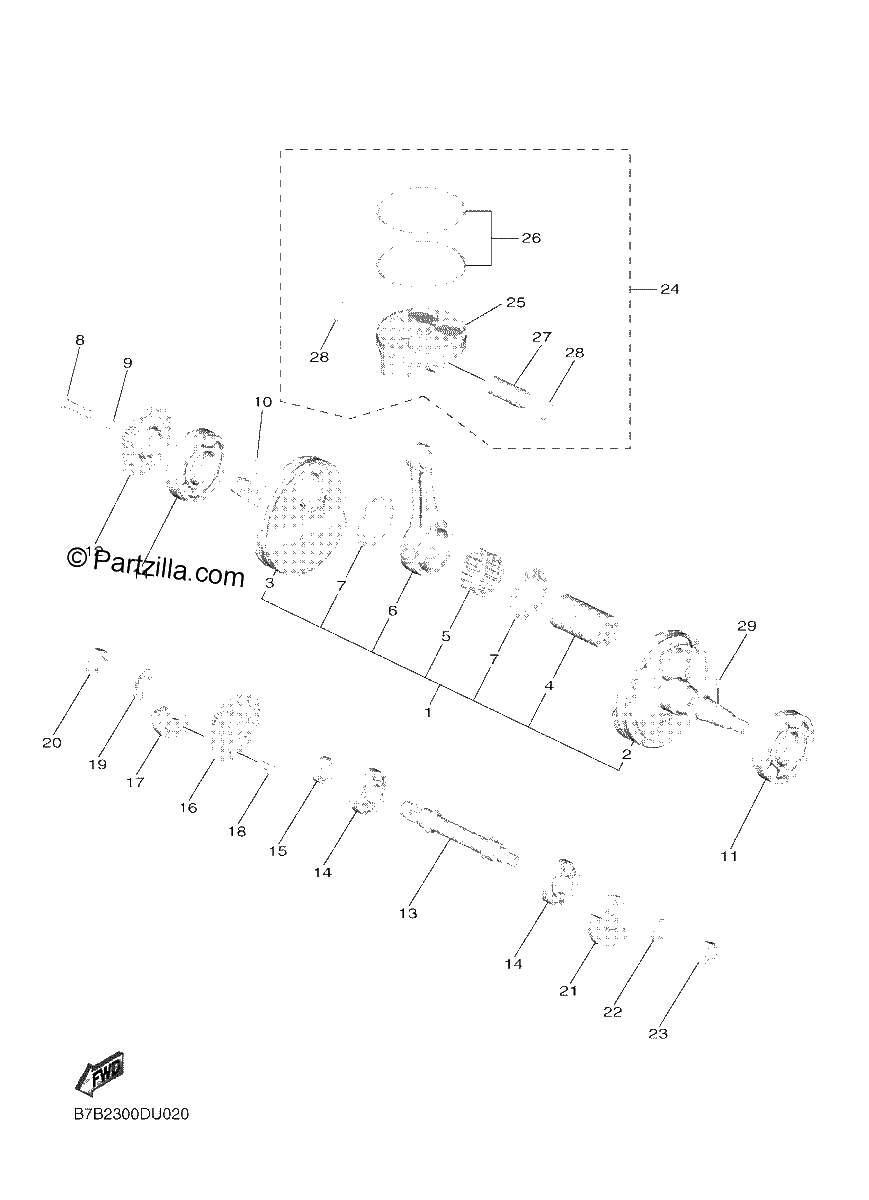

Diagrama de CRANKSHAFT PISTON

Repuestos

#1
BMF-11400-00-00
CRANKSHAFT ASSY
$757.84¢378 919
1
#2
BMF-11412-00-00
CRANK 1
$404.97¢202 486
1
#3
B7B-11422-02-00
CRANK 2
$303.09¢151 547
1
#4
1SM-11681-00-00
PIN, CRANK 1
$63.50¢31 751
1
#5
93310-63097-00
BEARING (replaces 93310-63096-00)
$100.83¢50 416
1
#6
1SM-11651-20-00
ROD, CONNECTING
$136.60¢68 298
1
#7
90209-30011-00
WASHER
$34.79¢17 394
1
#8
90240-07105-00
PIN,CLEVIS
$15.64¢7 820
1
#9
90501-070A2-00
Spring, Compression
$1.74¢868
1
#10
93602-13177-00
PIN,DOWEL
$2.40¢1 202
1
#11
93306-20648-00
BEARING
$87.00¢43 499
1
#12
1SM-11536-10-00
GEAR, DRIVE
$117.07¢58 535
1
#13
1SM-11455-10-00
SHAFT 1
$183.53¢91 764
1
#14
93306-20351-00
BEARING
$37.40¢18 699
1
#15
90387-175R2-00
COLLAR (1YW)
$11.34¢5 669
1
#16
1SM-11531-00-00
GEAR, BALANCE WEIGHT
$122.00¢61 002
1
#17
1SM-11454-00-00
WEIGHT 1
$48.69¢24 346
1
#18
90149-06083-00
SCREW
$7.04¢3 519
1
#19
90208-14033-00
WASHER, CONICAL SPRING
$3.32¢1 662
1
#20
90170-14171-00
NUT
$7.95¢3 973
1
#21
1SM-11464-00-00
WEIGHT 2
$73.46¢36 731
1
#22
90208-10001-00
WASHER, CONICAL SPRING
$1.56¢782
1
#23
90170-10012-00
Nut
$4.93¢2 467
1
#24
B7B-116A0-00-00
Piston Assy
$125.28¢62 640
1
#25
B7B-11631-00-00
PISTON (Std)
$99.68¢49 841
1
#26
1SM-11603-01-00
PISTON RING SET (STD)
$39.15¢19 573
1
#27
1SM-11633-30-00
PIN, PISTON
$43.49¢21 746
1
#28
93450-17129-00
CIRCLIP,INNER
$3.19¢1 593
1
#29
90280-03006-00
KEY, WOODRUFF
$7.44¢3 720
1
