FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

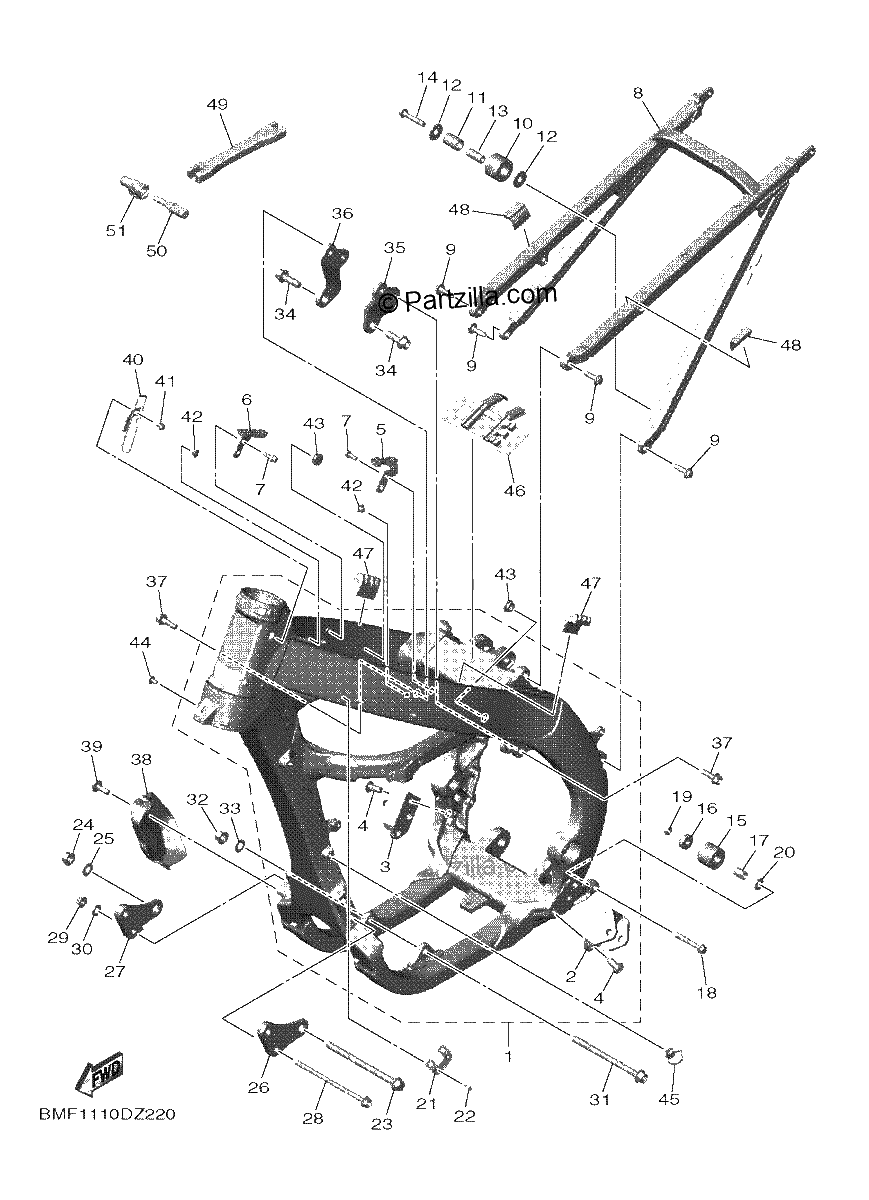

Diagrama de FRAME

Repuestos

#1
BHR-21101-01-00
FRONT FRAME COMP.
$4284.89¢2 142 444
1
#2
BHR-21447-00-00
. BRACKET, FOOTREST
$73.94¢36 973
1
#3
BHR-21448-00-00
. BRACKET, FOOTREST
$93.63¢46 817
1
#4
90149-10031-00
SCREW
$5.97¢2 984
1
#5
BHR-21147-00-00
BRACKET, AIR CLEANER 1
$31.28¢15 640
1
#6
BHR-21148-00-00
BRACKET, AIR CLEANER 2
$31.28¢15 640
1
#7
95E32-06016-00
BOLT, FLANGE DEEP RECESS
$0.75¢374
1
#8
BHR-21190-10-00
REAR FRAME COMP
$681.56¢340 779
1
#9
90105-08230-00
Bolt, Flange
$3.90¢1 949
1
#10
30X-22178-00-00
TENSIONER
$34.55¢17 273
1
#11
4V4-22184-00-00
BUSH
$3.90¢1 949
1
#12
90201-08045-00
WASHER, PLATE
$5.21¢2 605
1
#13
90387-08041-00
COLLAR
$7.38¢3 691
1
#14
95E32-08040-00
BOLT, FLANGE DEEP RECESS
$0.85¢426
1
#15
BR9-22178-00-00
TENSIONER
$33.38¢16 692
1
#16
93300-60839-00
BEARING
$12.25¢6 124
1
#17
90387-086N4-00
COLLAR
$9.12¢4 560
1
#18
90105-08232-00
BOLT, FLANGE
$2.37¢1 185
1
#19
90185-08009-00
NUT, SELF-LOCKING
$7.44¢3 720
1
#20
90201-08043-00
WASHER, plate
$6.32¢3 162
1
#21
BHR-23591-00-00
BRACKET 1
$8.38¢4 192
1
#22
90267-32146-00
RIVET, BLIND
$6.36¢3 180
1
#23
90105-10219-00
Bolt, Flange
$6.29¢3 145
1
#24
90179-10658-00
NUT,SPEC'L SHAPE
$8.49¢4 244
1
#25
90201-10045-00
WASHER, PLATE
$6.75¢3 375
1
#26
BMF-21417-00-00
BRACKET, FRONT LOWER 1
$67.10¢33 551
1
#27
BMF-21418-00-00
BRACKET, FRONT LOWER 2
$67.10¢33 551
1
#28
90105-08285-00
BOLT, FLANGE
$11.73¢5 865
1
#29
90179-08674-00
NUT(4KM)
$6.23¢3 117
1
#30
90201-08043-00
WASHER, plate
$6.32¢3 162
1
#31
90105-10176-00
BOLT, FLANGE
$10.51¢5 256
1
#32
90179-10658-00
NUT,SPEC'L SHAPE
$8.49¢4 244
1
#33
90201-10045-00
WASHER, PLATE
$6.75¢3 375
1
#34
90105-10189-00
BOLT, FLANGE
$9.18¢4 589
1
#35
B7B-21425-10-00
BRACKET, REAR UPPER 1
$24.86¢12 432
1
#36
B7B-21426-10-00
BRACKET, REAR UPPER 2
$43.06¢21 528
1
#37
90105-08226-00
BOLT, FLANGE
$2.71¢1 357
1
#38
BMF-21471-00-00
PROTECTOR, ENGINE
$13.09¢6 544
1
#39
90105-06170-00
BOLT, FLANGE
$4.65¢2 323
1
#40
1SL-21163-01-00
HOLDER, CLUTCH CABLE
$18.92¢9 459
1
#41
92012-06010-00
BOLT, BUTTON HEAD
$2.68¢1 340
1
#42
90338-07043-00
PLUG
$6.03¢3 013
1
#43
90480-12M25-00
GROMMET
$8.61¢4 307
1
#44
90111-06009-00
BOLT(3DM)
$5.98¢2 990
1
#45
90464-31002-00
CLAMP
$4.20¢2 099
1
#46
BHR-24181-00-00
DAMPER, LOCATING 1
$63.04¢31 521
1
#47
BR9-24182-00-00
DAMPER, locating 2
$28.08¢14 042
1
#48
BHR-24183-00-00
DAMPER, LOCATING 3
$46.91¢23 454
1
#49
5ET-28166-10-00
WRENCH, HEXAGON
$32.07¢16 037
1
#50
18P-2467E-00-00
CAP
$7.23¢3 617
1
#51
18P-2464V-01-00
CASE, CAP
$5.34¢2 668
1
