CYLINDER HEAD

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

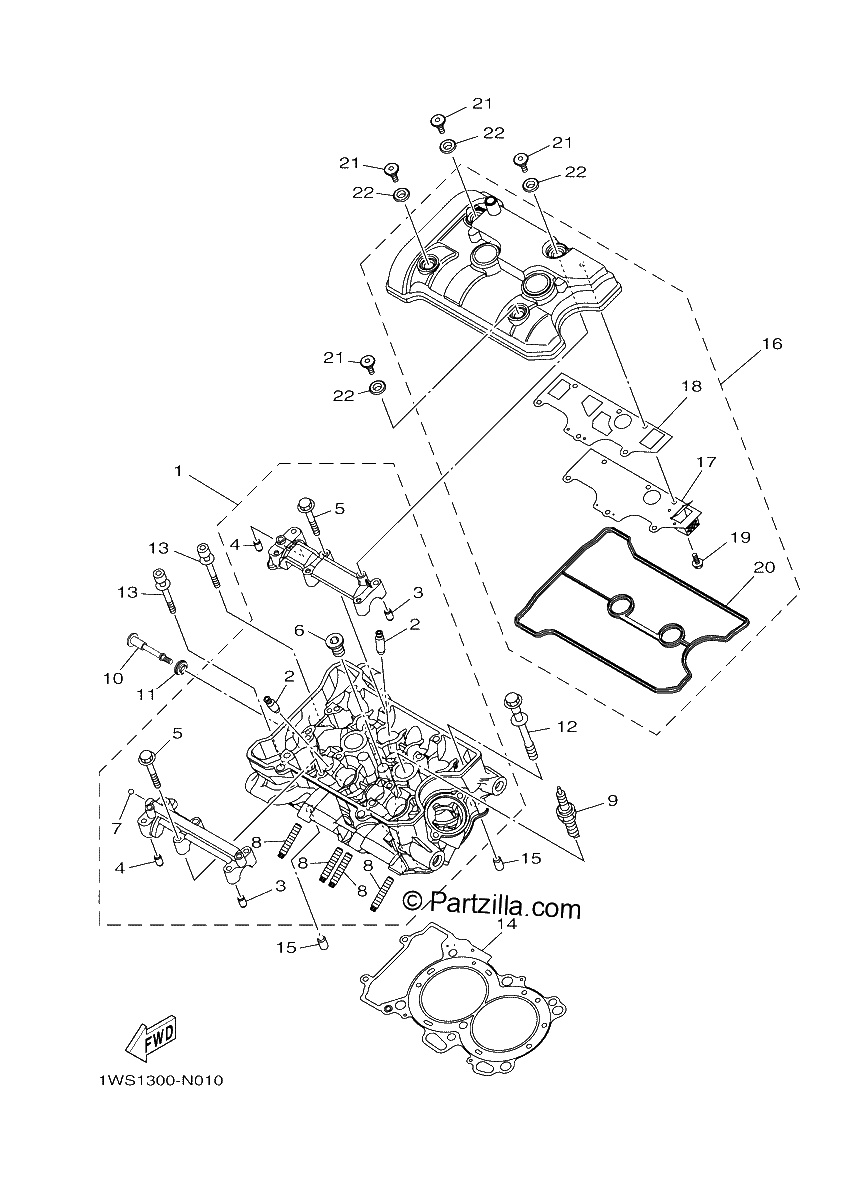

Diagrama de CYLINDER HEAD

Repuestos

#1
BAT-11101-09-00
CYLINDER HEAD ASSY
$1308.49¢654 247
1
#2
4D9-11133-10-00
GUIDE, VALVE 1
$84.97¢42 487
1
#3
91808-16023-00
PIN, DOWEL
$6.18¢3 088
1
#4
91808-16023-00
PIN, DOWEL
$6.18¢3 088
1
#5
90105-06027-00
BOLT, FLANGE
$7.06¢3 530
1
#6
90340-18002-00
PLUG, STRAIGHT SCREW
$10.29¢5 146
1
#7
93501-04011-00
BALL
$6.87¢3 433
1
#8
90116-08087-00
BOLT, STUD
$8.26¢4 129
1
#9
LMA-R8A9S-00-00
LMAR8A-9S NGK SPLUG (replaces 94701-00436-00)
$14.37¢7 187
1
#10
90109-06293-00
BOLT
$14.03¢7 015
1
#11
5VY-1111G-00-00
RUBBER, MOUNT 1
$11.73¢5 865
1
#12
90119-10056-00
BOLT, WITH WASHER
$9.76¢4 882
1
#13
90110-06081-00
BOLT, HEXAGON SOCKET
$3.00¢1 501
1
#14
1WS-11181-00-00
GASKET, CYLINDER H
$49.45¢24 725
1
#15
99530-10114-00
PIN,DOWEL
$2.50¢1 248
1
#16
1WS-11190-10-00
COVER, CYLINDER HEAD 1 *{MDNM9}*
$180.75¢90 373
1
#17
1WS-11165-01-00
PLATE, breather
$15.05¢7 527
1
#18
1WS-11169-00-00
GASKET, BREATHER C
$12.17¢6 084
1
#19
90105-05024-00
. BOLT, FLANGE
$1.08¢541
1
#20
1WS-11193-01-00
GASKET, HEAD COVER 1
$23.16¢11 580
1
#21
90109-066F0-00
BOLT
$6.99¢3 496
1
#22
5VY-1111G-00-00
RUBBER, MOUNT 1
$11.73¢5 865
1
