STAND FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

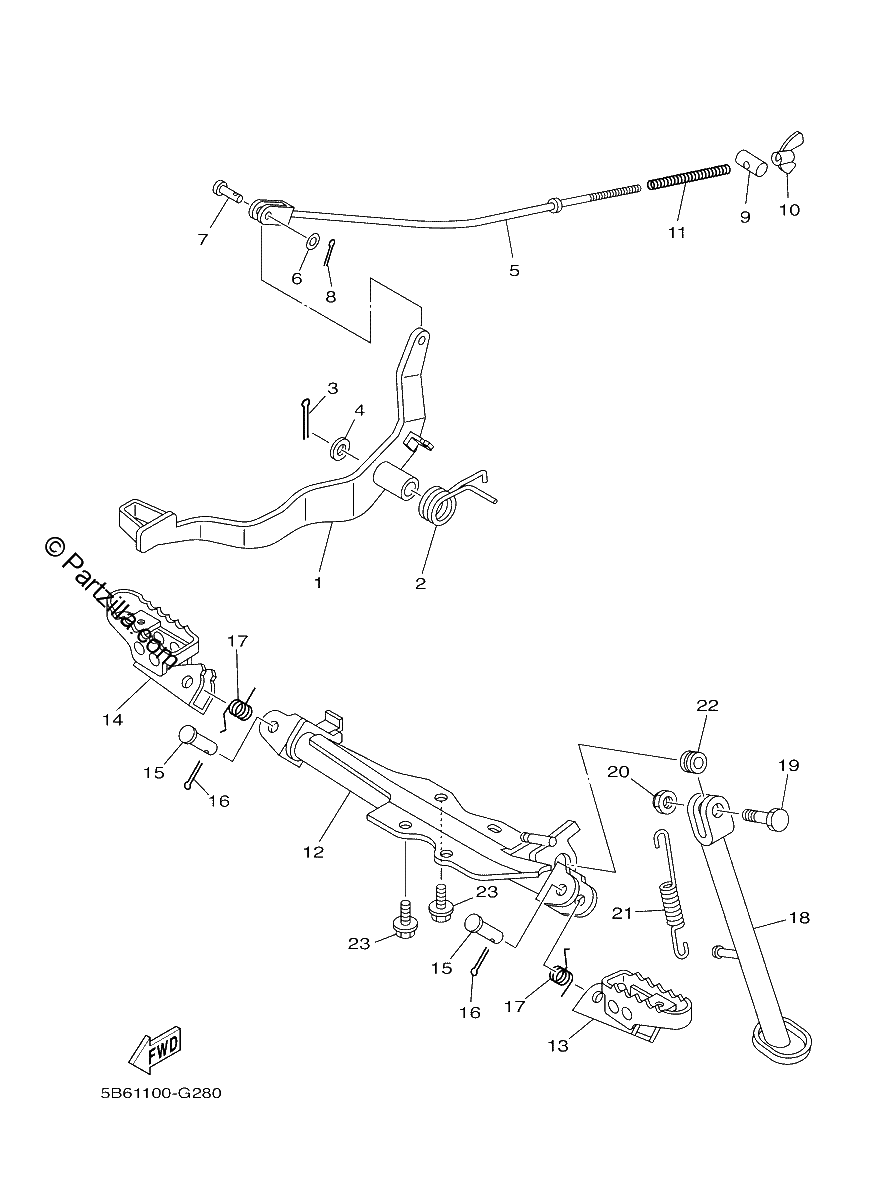

Diagrama de STAND FOOTREST

Repuestos

#1
5B6-27211-00-00
PEDAL, BRAKE
$75.12¢37 559
1
#2
90508-40016-00
SPRING, TORSION
$16.09¢8 044
1
#3
91402-20020-00
PIN, COTTER
$1.44¢719
1
#4
92902-12600-00
WASHER, plate
$1.35¢673
1
#5
5B6-27231-00-00
ROD, BRAKE
$20.18¢10 091
1
#6
92902-06200-00
WASHER
$0.89¢443
1
#7
90240-06076-00
PIN, CLEVIS
$6.75¢3 375
1
#8
91402-20012-00
PIN, COTTER
$2.02¢1 012
1
#9
90249-12008-00
PIN
$6.75¢3 375
1
#10
90175-06013-00
NUT, WING
$4.48¢2 242
1
#11
90501-10245-00
SPRING, COMPRESSION
$6.75¢3 375
1
#12
5B6-27411-00-00
FOOTREST 1
$230.91¢115 454
1
#13
3LD-27411-20-00
FOOTREST 1
$49.90¢24 949
1
#14
3LD-27421-20-00
FOOTREST 2
$62.13¢31 067
1
#15
90240-10002-00
Pin, Clevis
$5.54¢2 772
1
#16
91402-25015-00
PIN, COTTER
$3.32¢1 662
1
#17
90508-20007-00
SPRING, TORSION
$3.58¢1 788
1
#18
5B6-27311-00-00
STAND, SIDE
$84.50¢42 251
1
#19
90101-10003-00
bolt
$7.51¢3 755
1
#20
90185-10037-00
NUT,SELF-LOCKING
$7.30¢3 651
1
#21
90506-26270-00
SPRING, TENSION
$14.31¢7 153
1
#22
90387-10003-00
Collar
$23.36¢11 678
1
#23
95812-08016-00
BOLT, FLANGE
$4.52¢2 260
1
