SHIFT SHAFT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

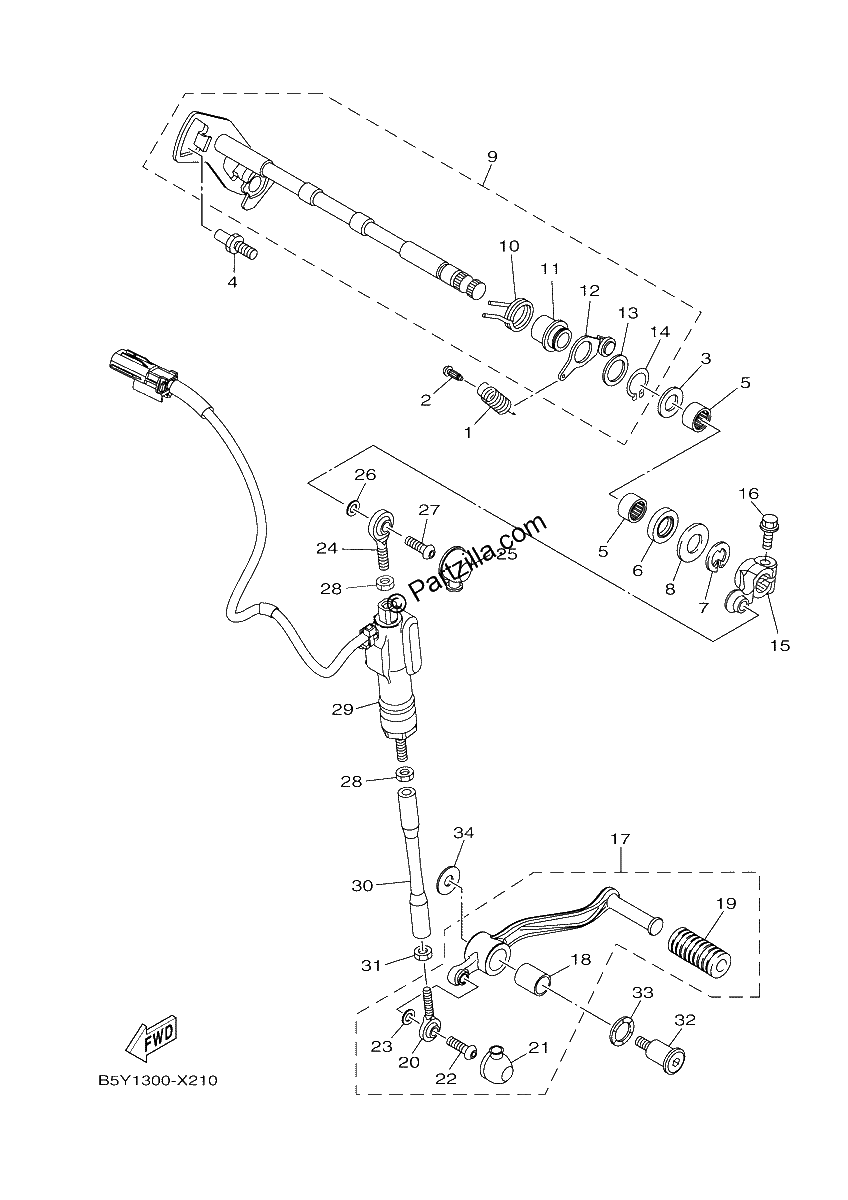

Diagrama de SHIFT SHAFT

Repuestos

#1
90506-18021-00
SPRING, TENSION
$6.74¢3 369
1
#2
132-16346-00-00
HOOK, SPRING
$10.39¢5 194
1
#3
90201-127E1-00
WASHER, PLATE
$4.40¢2 200
1
#4
1D7-18127-00-00
STOPPER, SCREW
$12.98¢6 488
1
#5
93317-11295-00
BEARING
$47.73¢23 863
1
#6
93102-12106-00
OIL SEAL,SD-TYPE
$12.06¢6 031
1
#7
99002-10600-00
CIRCLIP
$7.48¢3 738
1
#8
90201-12575-00
WASHER, PLATE
$7.34¢3 669
1
#9
2CR-18101-01-00
SHIFT SHAFT ASSY
$165.49¢82 744
1
#10
90508-32141-00
SPRING, TORSION
$8.24¢4 119
1
#11
B7N-18175-00-00
. SPACER
$19.64¢9 819
1
#12
14B-18140-00-00
STOPPER LEVER ASSY
$37.21¢18 606
1
#13
90201-177G4-00
WASHER,PLATE
$8.09¢4 044
1
#14
99009-17400-00
Circlip
$4.65¢2 325
1
#15
2CR-18112-10-00
Arm, Shift
$61.46¢30 731
1
#16
90105-06127-00
BOLT, FLANGE
$7.34¢3 669
1
#17
B67-18110-10-00
SHIFT PEDAL ASSY
$145.81¢72 906
1
#18
90386-14171-00
BUSH
$8.09¢4 044
1
#19
5EB-18113-00-00
COVER, SHIFT PEDAL
$8.50¢4 250
1
#20
5LV-18117-00-00
JOINT, ROD 2
$34.98¢17 488
1
#21
4XV-18154-00-00
COVER, DUST
$8.03¢4 013
1
#22
90111-06019-00
BOLT,HEX. SOCKET BUTTON
$3.04¢1 519
1
#23
90201-06089-00
WASHER, PLATE
$3.21¢1 606
1
#24
5LV-18116-00-00
JOINT, ROD 1
$59.57¢29 787
1
#25
4XV-18154-00-00
COVER, DUST
$8.03¢4 013
1
#26
90201-067F9-00
WASHER,PLATE
$3.43¢1 713
1
#27
90111-06019-00
BOLT,HEX. SOCKET BUTTON
$3.04¢1 519
1
#28
95304-06700-00
NUT
$7.34¢3 669
1
#29
B5Y-82480-00-00
SHIFT SENSOR ASSY.
$339.60¢169 800
1
#30
2CR-18115-00-00
ROD, SHIFT
$40.70¢20 350
1
#31
90170-06228-00
NUT (COUNTER CLOCKWISE)
$7.81¢3 906
1
#32
4C8-27434-00-00
BOLT
$23.21¢11 606
1
#33
90206-14086-00
WASHER, WAVE
$7.35¢3 675
1
#34
90201-08103-00
WASHER, PLATE
$6.75¢3 375
1
