CRANKCASE COVER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

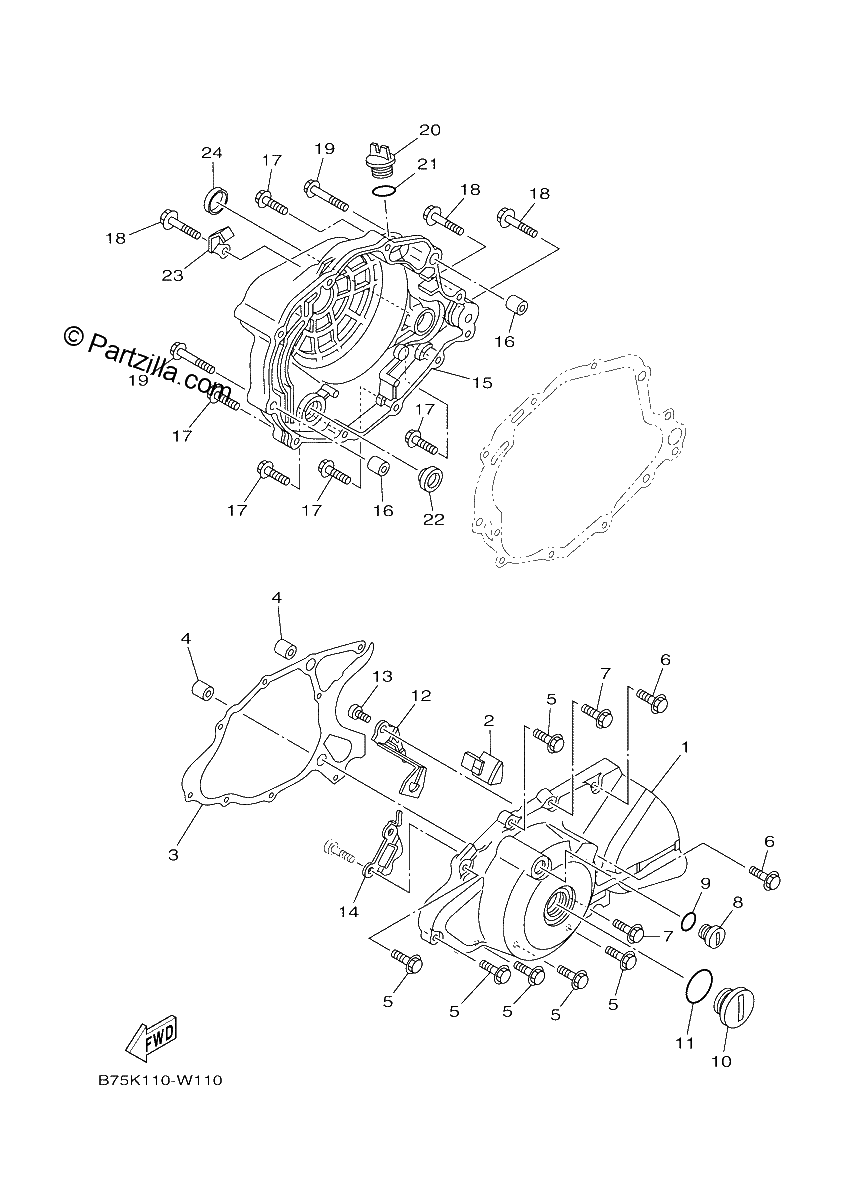

Diagrama de CRANKCASE COVER 1

Repuestos

#1
5EK-15410-00-00
CRANKCASE COVER ASSY
$398.47¢199 237
1
#2
2JX-15377-00-00
GUIDE,INLET
$31.31¢15 657
1
#3
3AW-15451-03-00
GASKET,CRCS COVER
$17.73¢8 866
1
#4
99530-12016-00
PIN, DOWEL
$4.52¢2 260
1
#5
95027-06025-00
BOLT,SMALL FLANGE
$3.47¢1 737
1
#6
90105-06017-00
BOLT, FLANGE
$3.47¢1 737
1
#7
90105-06014-00
BOLT, FLANGE
$2.02¢1 012
1
#8
90340-14117-00
PLUG, STRAIGHT SCREW
$12.72¢6 360
1
#9
93210-14369-00
O-Ring
$6.36¢3 180
1
#10
90340-32080-00
PLUG,STRAIGHT SCRW
$29.19¢14 593
1
#11
93210-32172-00
O-Ring
$6.32¢3 162
1
#12
90465-08364-00
Clamp
$23.77¢11 885
1
#13
90110-06065-00
BOLT, HEXAGON SOCKET HEAD
$7.58¢3 789
1
#14
90465-16187-00
CLAMP
No Disponible
1
#15
15A-15431-01-00
COVER, CRANKCASE 3
$179.23¢89 614
1
#16
99530-12016-00
PIN, DOWEL
$4.52¢2 260
1
#17
95027-06025-00
BOLT,SMALL FLANGE
$3.47¢1 737
1
#18
95027-06035-00
BOLT, SMALL FLANGE
$2.02¢1 012
1
#19
95027-06045-00
BOLT, SMALL FLANGE
$2.71¢1 357
1
#20
3Y1-15363-10-00
PLUG, OIL
$18.72¢9 361
1
#21
93210-19123-00
O-Ring
$7.58¢3 789
1
#22
3Y1-15361-00-00
GAUGE,LEVEL
$27.95¢13 973
1
#23
90462-08225-00
CLAMP
$8.45¢4 226
1
#24
55X-15167-00-00
PLUG,BLIND 1
$11.48¢5 739
1
