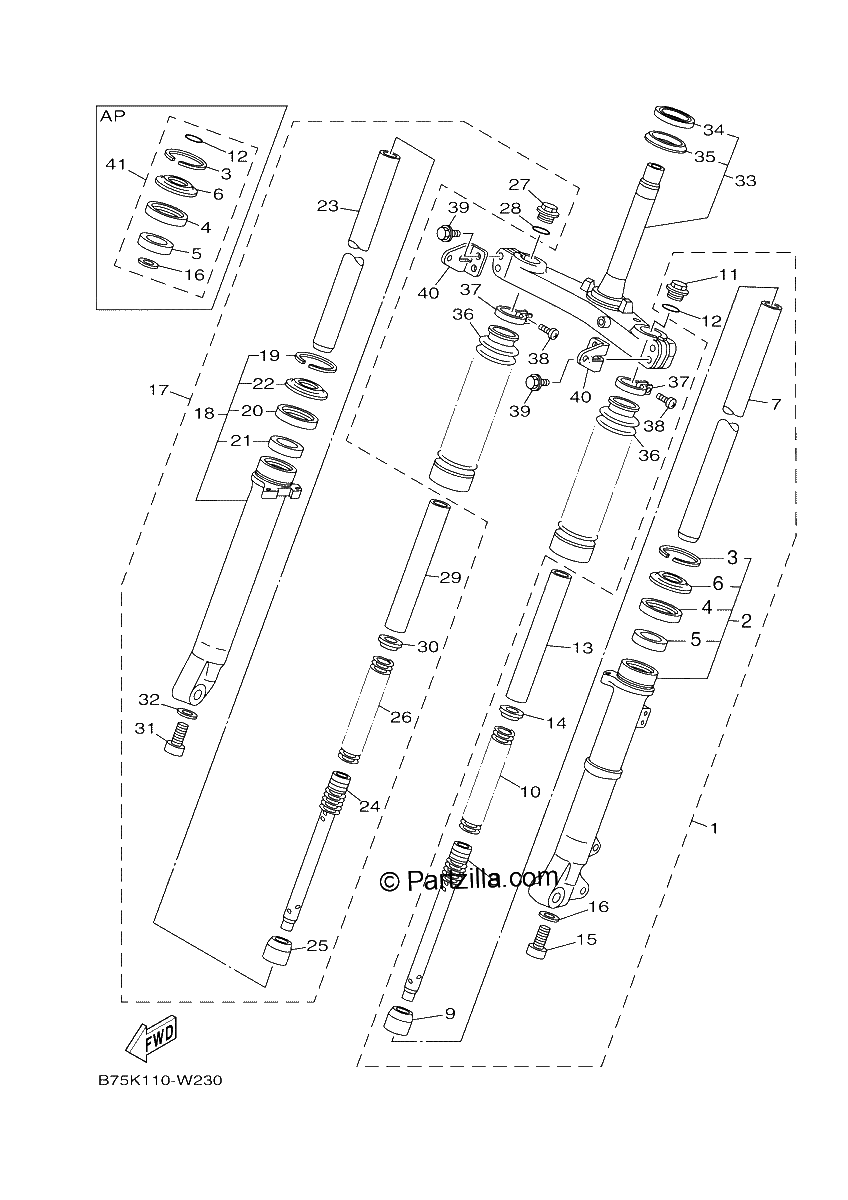

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
DAMPER ASSY. (L)
No Disponible
#2
TUBE, OUTER (L.H)
$254.35¢127 173
#3
RING, SNAP
$8.26¢4 129
#4
OIL SEAL
$18.57¢9 286
#5
METAL, SLIDE 1
$26.46¢13 231
#6
SEAL, DUST
$15.21¢7 607
#7
INNER TUBE COMP.1
$308.14¢154 071
#8
CYLINDER COMP., FRONT FORK
$49.28¢24 639
#9
. .Spindle, Taper
$17.35¢8 677
#10
SPRING, FRONT FORK
$38.49¢19 245
#11
BOLT, CAP
$45.40¢22 701
#12
GASKET
$2.54¢1 271
#13
SPACER
$8.96¢4 479
#14
WASHER, SPRING UPPER
$5.82¢2 909
#15
BOLT, HEXAGON SOCKET HEAD
$8.37¢4 186
#16
GASKET | (KYB)
$15.72¢7 860
#17
FRONT FORK ASSY (R.H)
$575.00¢287 500
#18
TUBE, OUTER
$255.60¢127 799
#19
RING, SNAP
$8.26¢4 129
#20
OIL SEAL
$18.57¢9 286
#21
METAL, SLIDE 1
$26.46¢13 231
#22
SEAL, DUST
$15.21¢7 607
#23
INNER TUBE COMP.1
$308.14¢154 071
#24
CYLINDER COMP., FRONT FORK
$49.28¢24 639
#25
. .Spindle, Taper
$17.35¢8 677
#26
SPRING, FRONT FORK
$38.49¢19 245
#27
BOLT, CAP
$45.40¢22 701
#28
GASKET
$2.54¢1 271
#29
SPACER
$8.96¢4 479
#30
WASHER, SPRING UPPER
$5.82¢2 909
#31
BOLT, HEXAGON SOCKET HEAD
$8.37¢4 186
#32
GASKET | (KYB)
$15.72¢7 860
#33
UNDER BRACKET COMP.
$330.18¢165 088
#34
RACE,BALL 1 (replaces 156-23411-00-00)
$7.67¢3 835
#35
SEAL, DUST
$8.52¢4 261
#36
BOOT
$61.77¢30 883
#37
BAND
$20.95¢10 476
#38
SCREW, BOOT BAND
$7.28¢3 640
#39
BOLT 1
$7.28¢3 640
#40
BRACKET, REFLECTOR 1
$21.82¢10 908
#41
FORK SEALS KIT
$39.00¢19 498
